Service Parts
R
PS35-C
Beginning Manufacturing Date: Mar 2019
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and
Home Technologies does not sell directly to consumers. Provide model number and serial number when
requesting service parts from your dealer or distributor.
Stocked
at Depot
Item Description Comments Part Number
1 Hopper Lid Assembly SRV7058-009
2 Handle, Hopper Lid SRV200-0110
3 Side Curtain, Left SRV7058-125
4 Bae Assembly SRV7058-026 Y
5 Door Assembly SRV7058-014
5.1 Glass Assembly SRV7058-015 Y
5.2 Rope, Door, 3/4” X 84” 832-1680 Y
Corner Tape 1 Ft SRV560-437-9
Gasket, Glass Tape, 3/4” X 1/8” 5 Ft 832-0460 Y
5.3 Hinge Pin, 1/2” Nickel SRV430-5320
5.4 Door Handle Assembly SRV7058-030 Y
5.5 Spring Handle, 1/2” Black 250-8330 Y
5.6 Handle, Formed Door SRV7058-182
5.7
Key Latch, Cam SRV430-1151
5.8
Washer, SAE, 3/8 (Qty 2 req) Pkg of 3 832-0990 Y
5.9
Cam Latch SRV430-1141
5.10
Nut, 2-Way Side-Lock Jam Pkg of 24 226-0100/24 Y
6.1 Thermocouple Protection Tube
SRV7034-186 Y
Pkg of 10 SRV7034-186/10
6.2 Half Clip 7000-321
6.3 Thermocouple 812-4470 Y
Additional service parts on following page

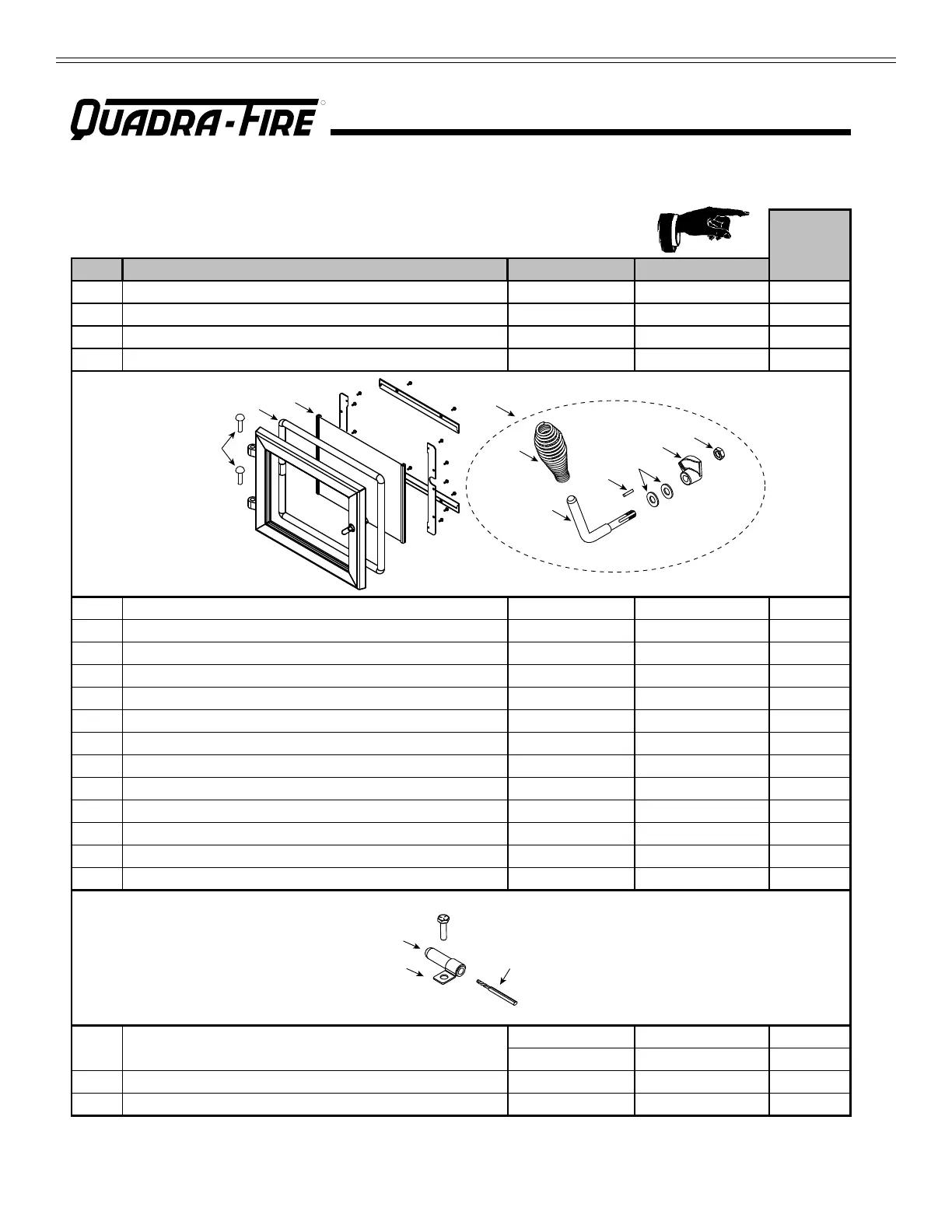

#5 Door Assembly
#6 Thermocouple Assembly
5.5
5.6
5.7
5.8
5.9
5.10
5.4
5.3
5.2
5.1
6.1
6.3
6.2
