37 04/217058-805F

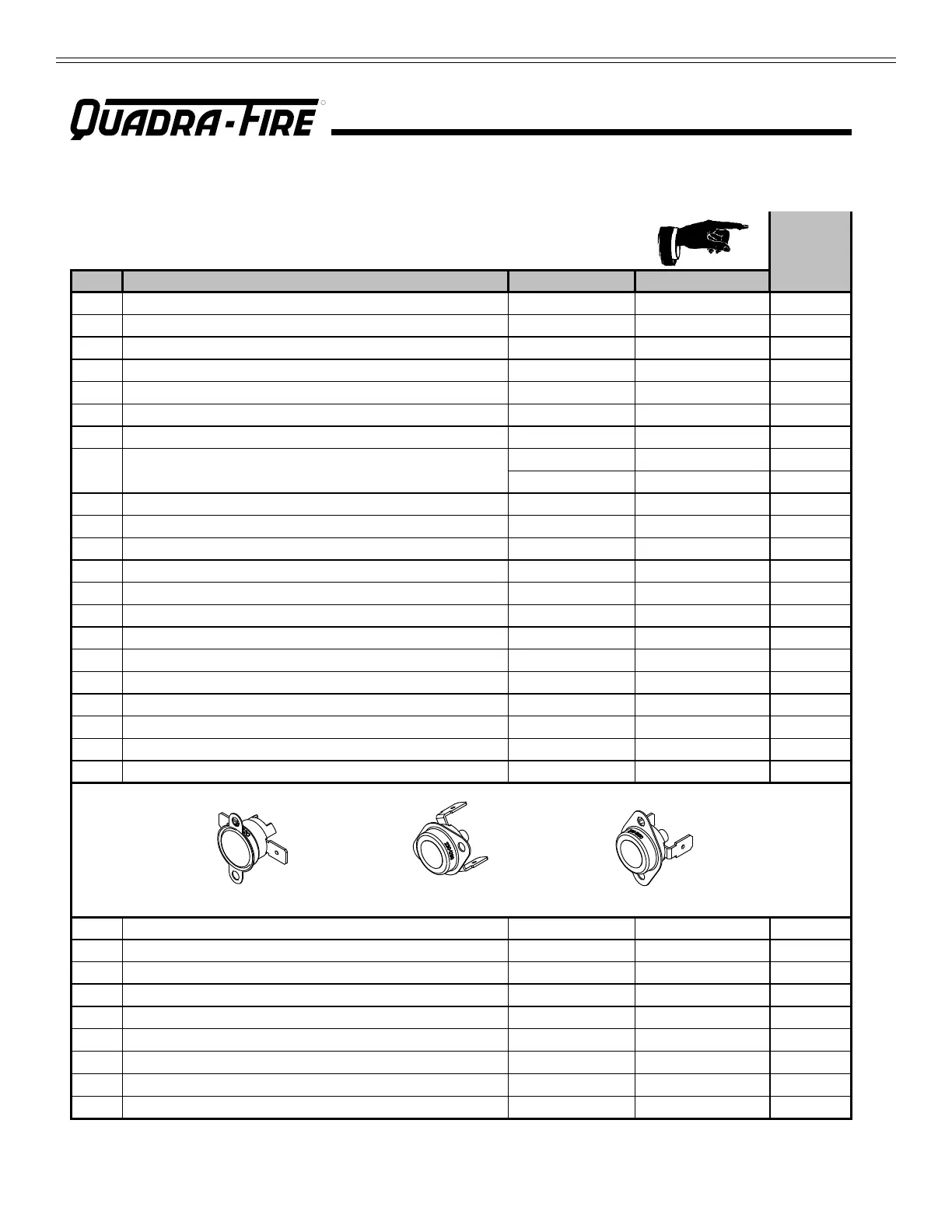

Service Parts
R
PS35-C
Beginning Manufacturing Date: Mar 2019
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and
Home Technologies does not sell directly to consumers. Provide model number and serial number when
requesting service parts from your dealer or distributor.
Stocked
at Depot
Item Description Comments Part Number
7 Firepot Assembly SRV7034-072B Y
Gasket, Firepot SRV7034-190 Y
8 Firepot Bottom SRV7034-153 Y
9 Rail, Auto-Clean SRV7034-152 Y
10 Spring Pkg of 4 7000-513/4 Y
11 Hitch Pin Clip 3/32 Pkg of 10 7000-374/10 Y
12 Pull Rod SRV7058-141
13 Heating Element Assembly 18” (Loop Igniter)
Pkg of 1 SRV7000-462 Y
Pkg of 10 SRV7000-462/10 Y
14 Ash Pan Assembly SRV7058-013
15 Pedestal Side Qty 2 req SRV7058-153
16 Blower, Convection 812-4900 Y
17 Wire Harness SRV7058-150 Y
Fuse, 7 Amp, Junction Box Pkg of 10 812-0380/10 Y
Reset Button Assembly SRV7000-040
18 Blower Retainer SRV7058-148
19 Control Board 3 Speed SRV7058-188 Y
20 Latch Backing Plate SRV7058-155
21 Blower, Exhaust Combustion 812-4400 Y
22 Gasket, Exhaust Combustion Blower SRV240-0812 Y
Gasket, Combustion Blower, Round 812-4710 Y
23 Casting, Exhaust Transition 180-0190
24 Snap discs
24.1 Snap Disc, 110-20 ( #1 ) Right SRV230-1220 Y
24.2 Snap Disc Manual Reset ( #2 ) Left SRV230-1960 Y
25 Feed Assembly SRV7058-007 Y
Feed Bearing SRV7000-598 Y
Feed Motor 812-4421 Y
Feed Spring Assembly (Only) SRV7001-046 Y
Gasket, Feed Motor SRV7034-144
26 Snap Disc ( #3 ) SRV230-1290 Y
Additional service parts on following page.
Snap Disc’s
24.1
26
24.2
F110F-20
L175F Manual Reset
L250F Manual Reset
To Next Page
