Quadra-Fire QFP 30 - Heating Specifications; ZC Appliance Dimensions; Minimum Cabinet Dimensions; Installation Terminology

Page 9
03/21/01 #250-6120 03/21/01 #250-6120
QFP 30 Direct Vent Gas Fireplace
HEATING SPECIFICATIONS
Natural Gas Propane
BTU Input 21,000 - 30,000 23,000 - 30,000
BTU Output on “HI” 25,500 25,500
Efciency** (with Fan) 85% 85%
**Efciency rating is the thermal efciency rating of the product determined under continuous operation and independent of an
installed system at maximum horizontal venting (40').

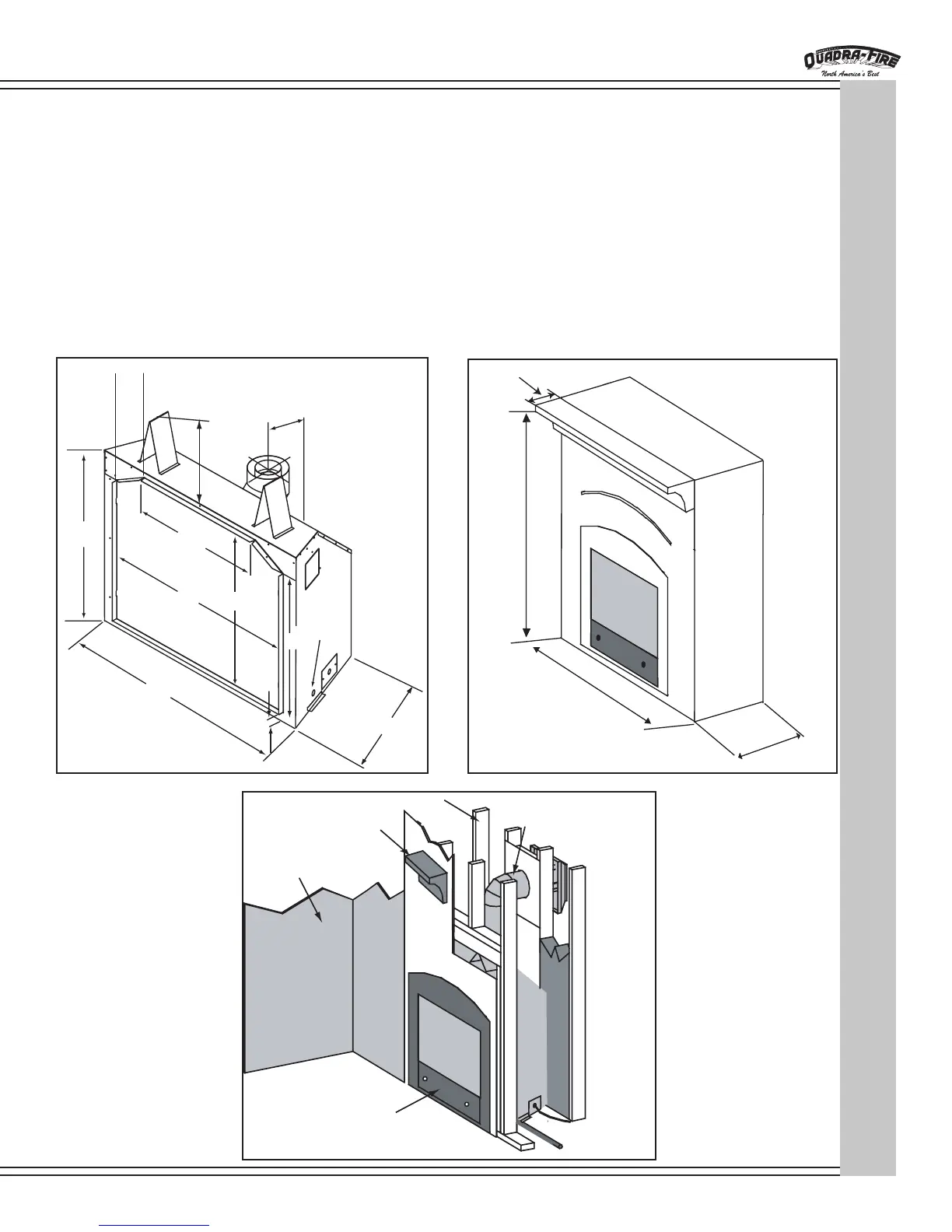

ZC APPLIANCE DIMENSIONS
MINIMUM CABINET DIMENSIONS
SPECIFICATIONS
Combustible Wall
Mantel
Access Door
Glass
DuraRock, Tile, etc.
Header
Horixzontal
Termination Cap
Framing
Simpson DuraVent Venting
ZC Appliance
Electrical Line
Gas Line
1/2" Air Space to
Combustibles
Required on
Sides and Back
of Appliance
INSTALLATION
TERMINOLOGY
30-3/8"
32-1/2"
9"
4-7/8"
1"
36-3/8"
24-5/16"
6-1/8"
42"
28"
19-5/8"
Electrical
Connection
Nail Down
Plate
Gas Inlet - 2"
Above base of
unit, accessible
from either side.
Height 48"
Width 54-9/16"
De
p
th 20-1/2"
Minimum
1/2" Trim,
2-1/4"
Maximum
Maximum mantel depth is 12"
