Quadro WM-1042 LCD - DISASSEMBLY PROCEDURES; TOP PLATE REMOVAL; DOOR DISASSEMBLY

Quadro WM-1042 LCD
55 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
Issue Date:01.08.2003 Documentation Number:
1

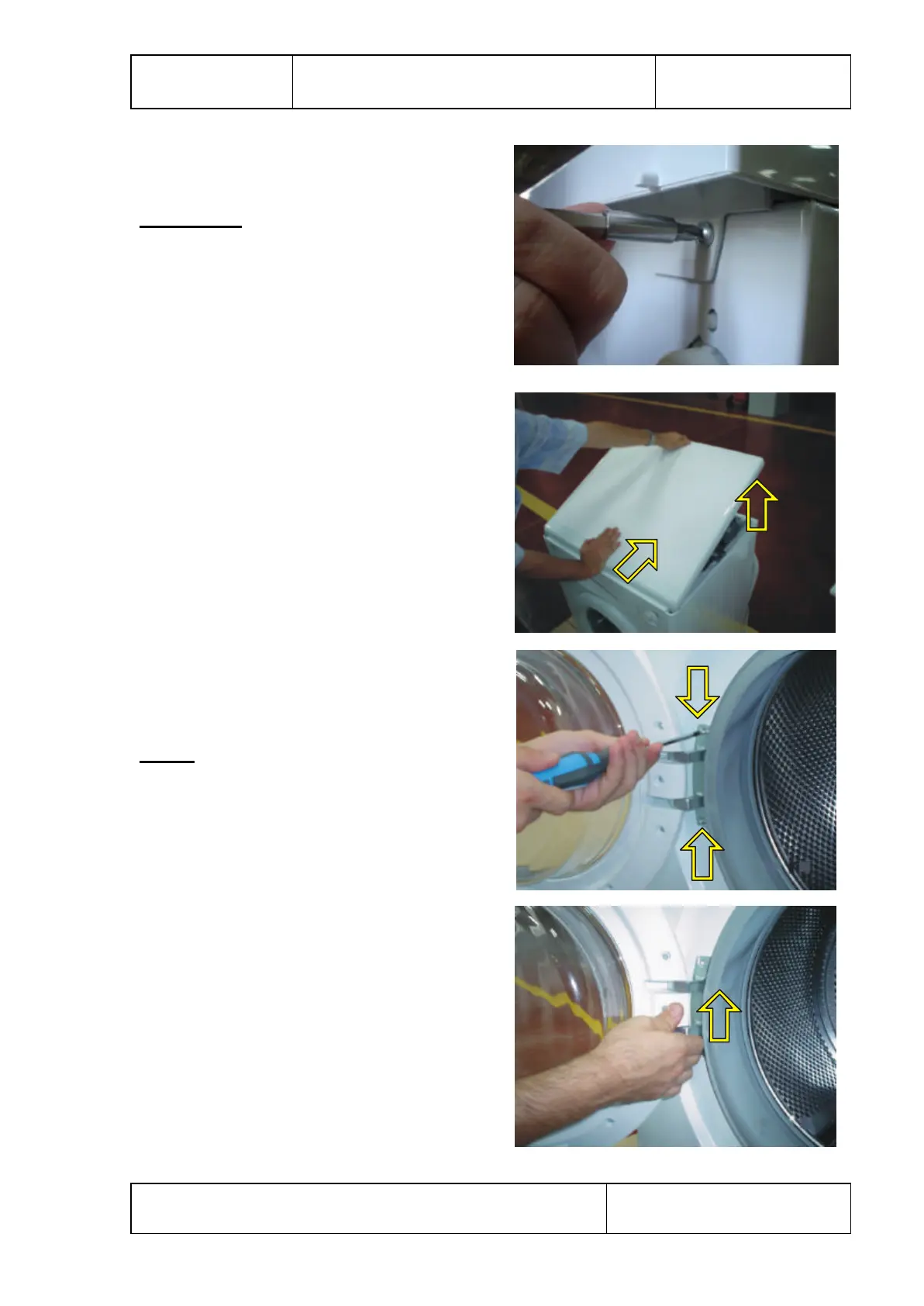

DISASSEMBLY
TOP PLATE
Remove two screws that fix the top-plate at
the back.
Push the top-plate back and pull it up.
DOOR
Remove two screws that fix the door.
Pull the door up.
