54
Customer Helpline 0845 034 2279
www.gardenservicecentre.co.uk
Customer Helpline 0845 034 2279
www.gardenservicecentre.co.uk

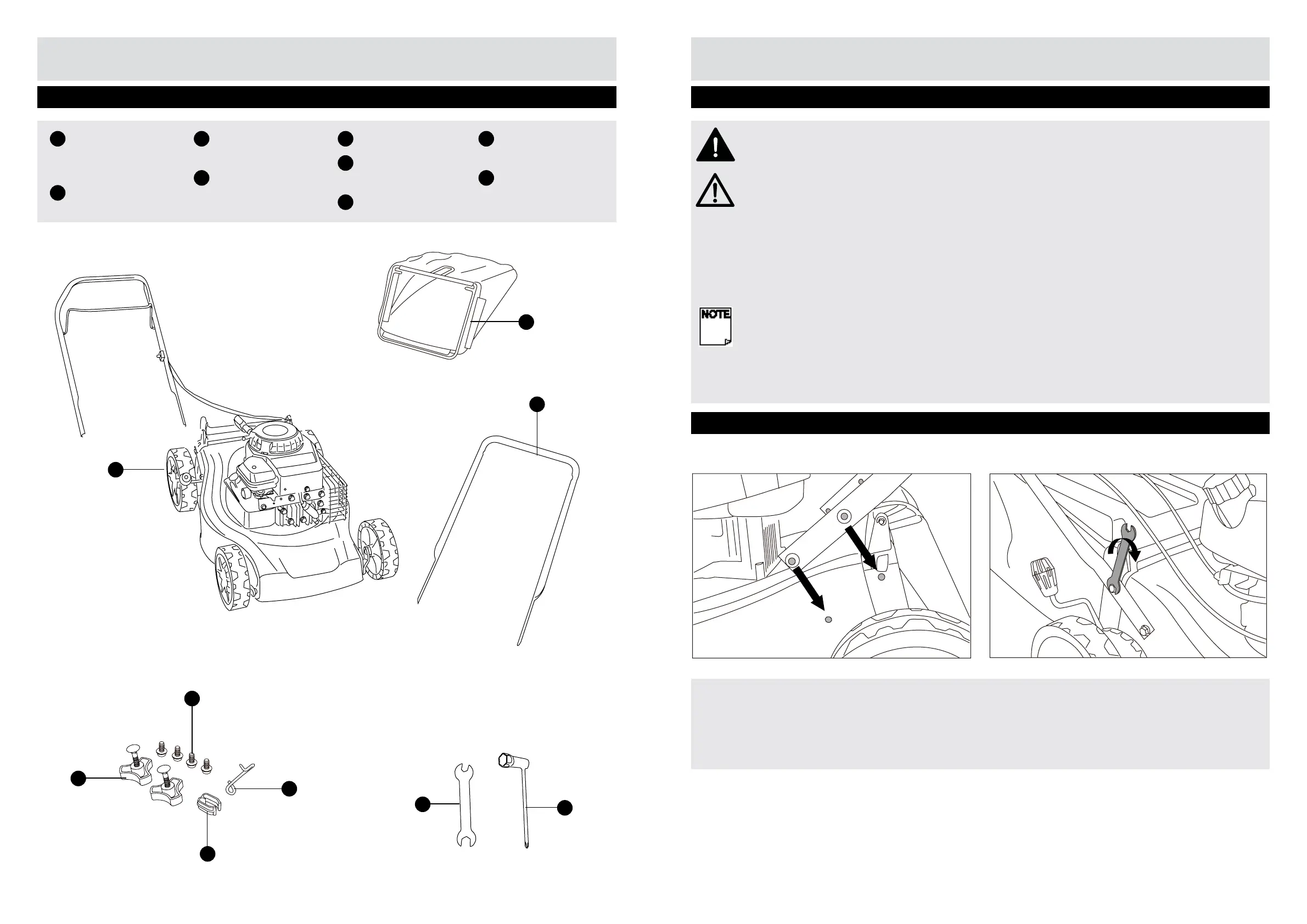

A
Main mower deck
(with upper handle
attached)
B
Lower handle
C
Handle xing bolts
4pcs
D
Handle tensioning
knob with nut m8
2pcs
E
Rope guide 1pc
F
Grass collecting
bag 1pc
G
Cable clip 1pc
1
Spanner & philips
screwdriver 1pc
2
Wrench 1pc
In the Box
Parts
Tools
A
D
C
1
2
E
G
F
B
WARNING! Always take care when removing the packaging to prevent damage to you or to the
lawnmower.
IMPORTANT! Before assembling the lawnmower, check all the parts indicated in the manual
are in the box. Inspect all the parts for signs of damage. Do not assemble the lawnmower if you
observe any damaged components.
1. Remove all parts of the lawnmower from the box and carefully remove all packaging. Take
care not to lose any instructions which may be afxed to the parts. These provide important
information which will be required while assembling the lawnmower.
2. Keep all packaging until the lawnmower is fully assembled and has been operated successfully.
NOTE! Always recycle the packaging in accordance with local recycling schemes.
WARNING! This item requires a two person lift to remove from the packaging. Make sure that
you have sufcient space to put the lawn mower down. Keep your feet apart so that you have a
stable position, bend at the knees and keep your back straight.
1a Remove the packaging from the handle. Set the height adjustment to highest position, and align
the lower handle with the holes in the deck. Make sure the holes in the lower handle are aligned
with those in the support.
1b Fix the lower handle onto the deck rmly with supplied wrench using the handle xing bolts.
Preparing to assemble the lawnmower
Assembly
Step 1
1a 1b
