Maintenance
Step 2 - Cleaning or Replacing Spark Plug
2a Once the engine has cooled, pull off the spark plug boot with a twist. Remove the spark
plug using the socket spanner supplied.
2b Clean the plug with a wire brush.
2b
0.7-0.8 mm
2c
2c Using a feeler gauge set the gap to 0.75mm.
2d Install the spark plug carefully by hand, to avoid cross-threading.
2e After the spark plug is seated, tighten with the spanner to compress the washer.
Maintenance

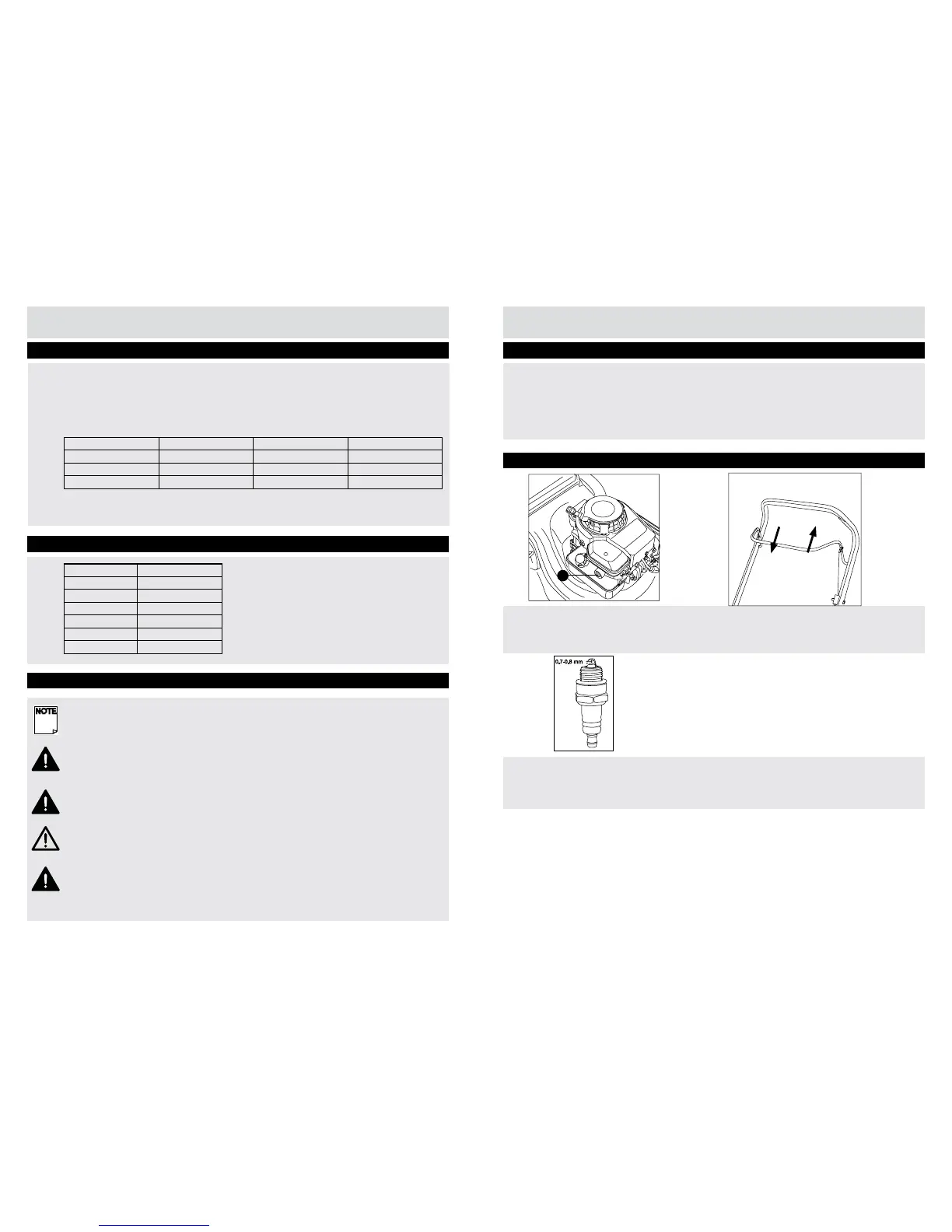

Maintenance Schedule
Performing routine maintenance correctly on your lawnmower will ensure you get years of trouble
free use.
Please keep this manual safe for future reference.
It is recommended that the following maintenance schedule is adhered to. This will ensure the
lawnmower operated correctly and is safe to use.
12 hours of use 24 hours of use 36 hours of use
Air lter clean clean replace
Spark plug check clean replace
Engine oil check replace check
The Engine oil should be changed after the rst 8 hours.
Step 1 - Cleaning
NOTE! To ensure the best performance of your lawnmower, it is important to keep it clean.
Always clean your lawnmower immediately after use.
WARNING! Do not allow grass cuttings and other debris to become dry and hard on any of the
mower surfaces. This will directly affect the cutting and grass collection performance. Make sure
that the underside of the lawnmower deck is clean and clear.
WARNING! Never turn the mower upside down.
IMPORTANT! Before you tip the lawn mower onto its side, completely empty the fuel tank using
a petrol suction pump.
WARNING! Never clean the lawn mower with a water jet or high-pressure cleaner. The engine
must remain dry. Do not use aggressive cleaning agents such as cold cleaner or petroleum ether.
2a
Engine stop
Engine start
A
List of vulnerable parts
RJ19LM spark plug
940901 collection bag
460206G blade
932217 balde nut
466018 xing bolt
428029 quick clamp
941006 mulching plug
1a The lawn mower should be thoroughly cleaned after every use, especially the
underneath and the blade mount.
To do so, tip the lawn mower onto its left side (the opposite side to the oil lling socket). Dirt and
grass is easiest to remove immediately after you have nished mowing the grass.
1b Check that the grass chute is free of any residual grass. Remove any such residue.
Step 1 - Cleaning (continued)
