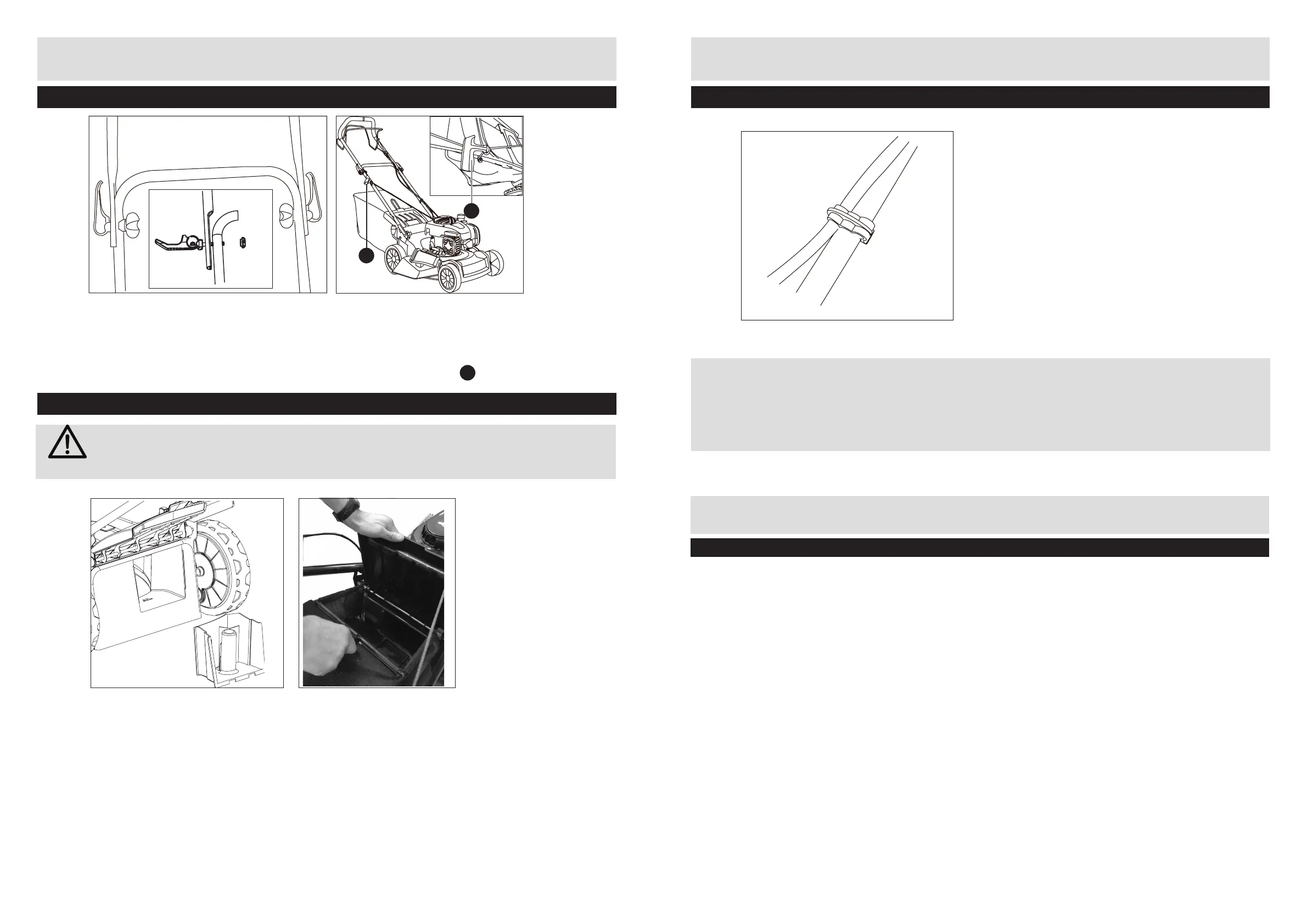

Step 3
Assembly
Lift the upper handle, and lock in place using the quick release lever and tensioning bolts that are
attached to the handle.
Ensure the lower and upper handles are rmly connected.
Pull on/off lever and gently pull the rope. Hook it around the guide rope .
Step 4
Assembly
If using the collection function, raise the safety ap and take out the mulching plug, and hook the
collection bag onto the mower. Ensure the side discharge chute is not tted when collecting the
grass in the bag.
Release the safety ap.
Step 5
Ensure that the cables clips supplied are used to x the cable to the lower handle
Customer Helpline 01904 727500
Our dedicated UK based customer helpline is open 7 days a week to assist you with assembly,
parts queries and technical support. We are open during ofce hours but you can always send an
email via support@gardenservicecentre.co.uk. Our experts are here to get you back enjoying
your garden in no time.
For useful assembly, starting and maintenance videos and ordering spares please visit
www.gardenservicecentre.co.uk.
Calling our service does not affect your statutory rights
UK/Ireland 01904 727500
Monday to Friday 9am – 5pm. Saturday & Sunday 11am – 4pm
www.gardenservicecentre.co.uk
email: support@gardenservicecentre.co.uk
Getting Help
STOP!
Do not start the engine before putting 500ml of SAE 30 oil into the engine.
Failure to do so will result in irreparable damage to the engine and invalidate your warranty.
IMPORTANT! Make sure the grass collection box is in place before starting the engine.
