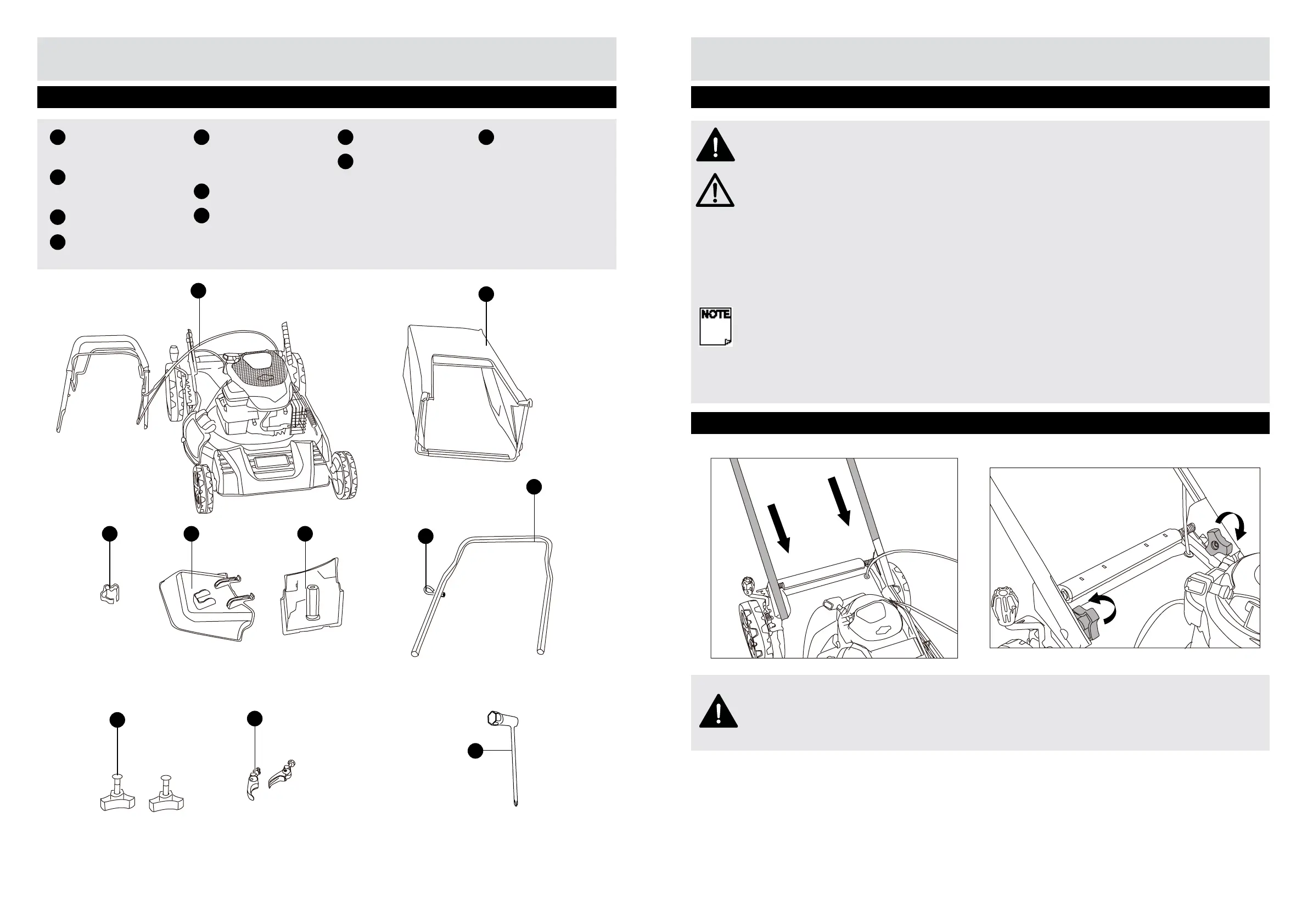

In the Box
Parts
Tools
A
DC
B
WARNING! Always take care when removing the packaging to prevent damage to you or to the
lawnmower.
IMPORTANT! Before assembling the lawnmower, check all the parts indicated in the manual
are in the box. Inspect all the parts for signs of damage. Do not assemble the lawnmower if you
observe any damaged components.
1. Remove all parts of the lawnmower from the box and carefully remove all packaging. Take
care not to lose any instructions which may be attached to the parts. These provide important
information which will be required while assembling the lawnmower.
2. Keep all packaging until the lawnmower is fully assembled and has been operated successfully.
NOTE! Always recycle the packaging in accordance with local recycling schemes.
WARNING! This item requires a two person lift to remove from the packaging. Make sure that
you have sufcient space to put the lawn mower down. Keep your feet apart so that you have a
stable position, bend at the knees and keep your back straight.
Set the height adjustment to lowest position; x the lower handle onto deck rmly.
WARNING! Make sure the rope guide is on the right handle, when you stand behind the mower.
Preparing to assemble the lawnmower
Assembly
Step 1
E
1
1a
1b
A
Main mower deck
(with upper handle)
B
Grass collecting
bag
C
Cable clip 1pc
D
Side discharge
chute 1pc
E
Plastic mulching
plug 1pc (inside the
mower)
F
Lower handle
G
Lower handle xing
knob with nut M8
2pcs
H
Quick release 2pcs
I
Rope guide 1pc
(attached to the
lower handle)
1
Socket spanner for
spark plug 1pc
F
G
H
I
