Quality Craft LS5T-H User Manual

6
WIRING & PLUMBING DIAGRAMS / LOG SPLITTER OPERATION
LOG SPLITTER OPERATION
This log splitter is equipped with “ZHB” control system that requires it to be operated by both hands of the user. The left hand controls the
hydraulic control lever while the right hand controls the push button switch. The log splitter will not operate if either hand is removed from the
controls. Only after both hands release the controls, does the log pusher start to return backward to the starting position.
Trigger type lock-out device is adopted to avoid accidental Hydraulic Control Lever pushdown. To operate the Hydraulic Control Lever, draw
the Trigger backward with the index finger before pushing the Hydraulic Control Lever forward.
Never force the log splitter for more than 5 seconds by keeping pressure on it to split excessively hard wood.
Excessive force will void the warranty.

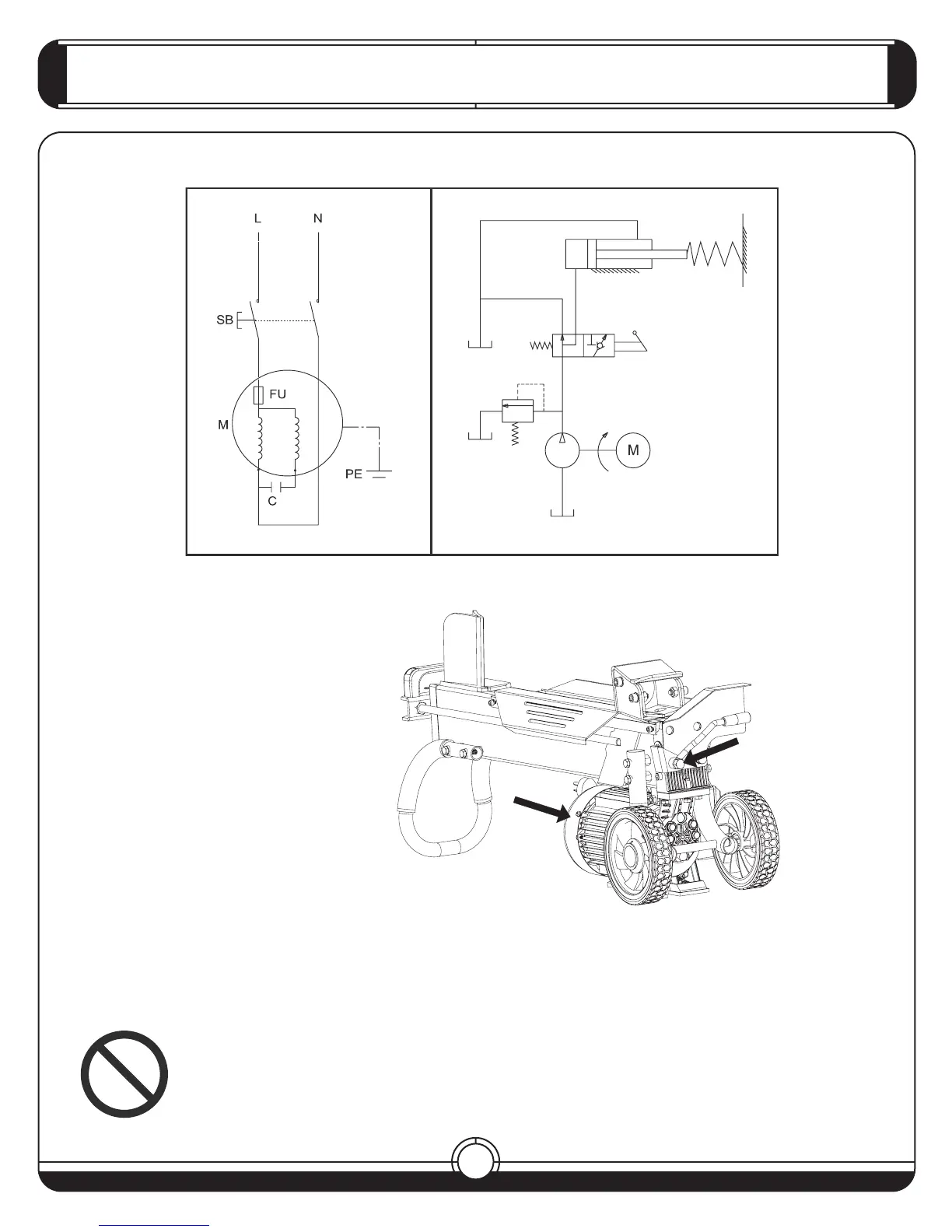

WIRING DIAGRAM PLUMBING DIAGRAM
