Quanmax QDSP-2070 User Manual

Chapter 1
16
QDSP-2070 User’s Manual
 System tour
Refer to the diagrams below to identify the components of the system.
 Front I/Os

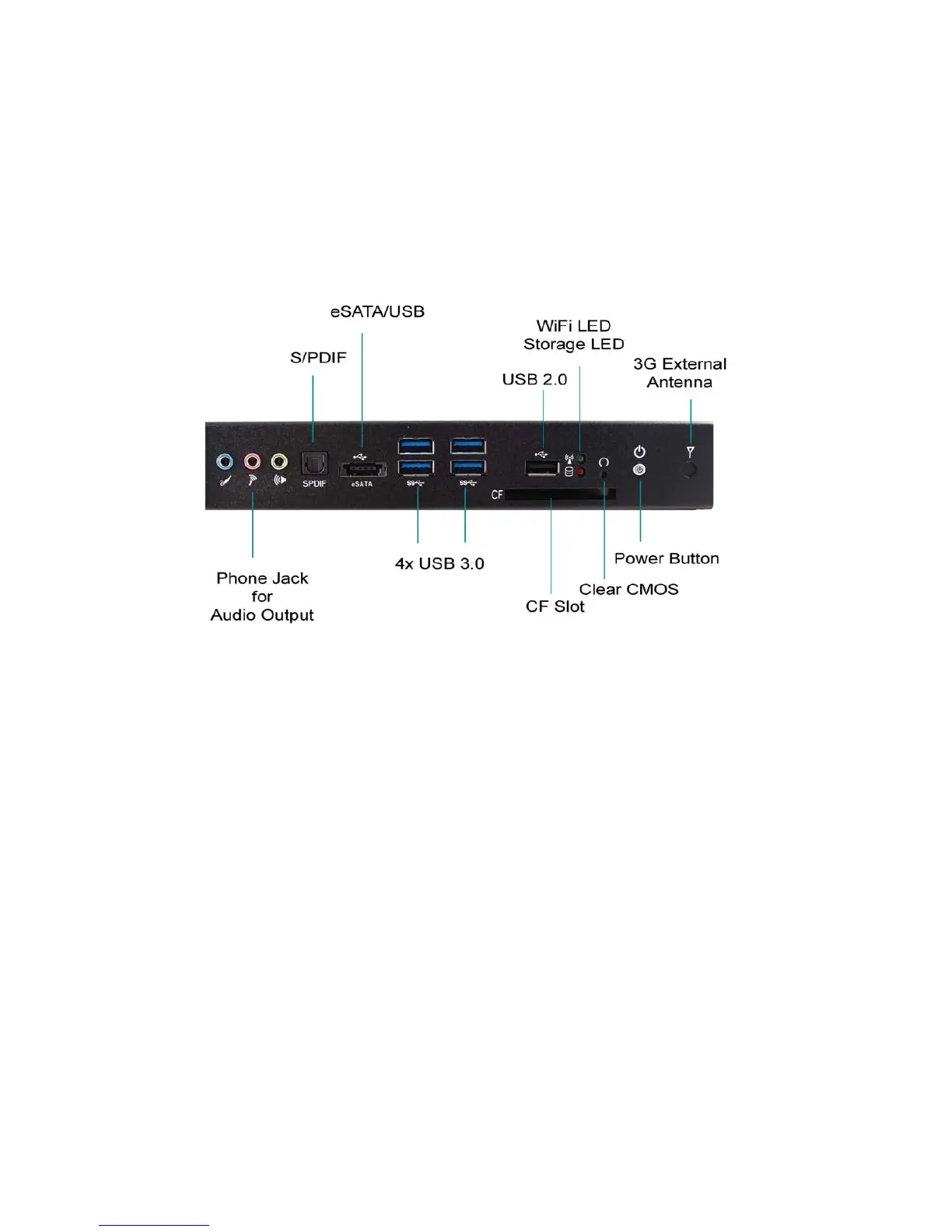

Figure 1 Front I/Os
Power Button
The power push button allows powering ON and OFF the system.
Clear CMOS Button
To clear the CMOS, use the tip of a pen to press the button briefly (for less than
three seconds).
WiFi LED (Green)
The WiFi LED will light when the WiFi is on.
Storage LED (Red)
The hard disk/card reader LED blinks when data is being written into or read
from the HDD/Card Reader.
