Quanmax QDSP-2070 - Connecting VESA Mount on QDSP-2070; Figure 9 VESA Mount Assembly; Figure 10 VESA Mount on QDSP-2070

Chapter 2
24
QDSP-2070 User’s Manual
 Connecting VESA Mount on QDSP-2070
1. Take out the VESA mounting kit form your package and facing it onto the
bottom of QDSP-2070; then tightening the screws on your QDSP-2070 as
figures shown below.

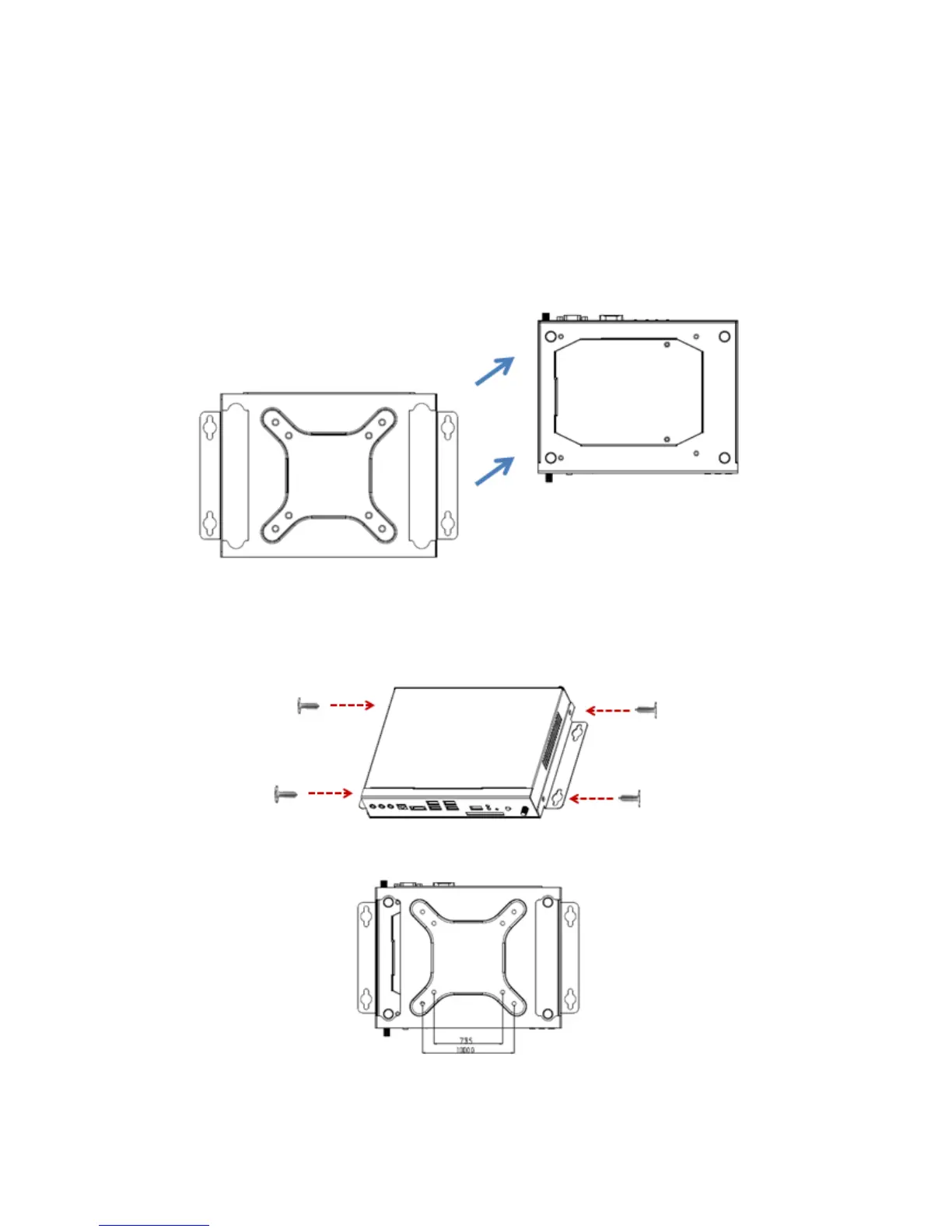

Figure 9 VESA Mount Assembly
2. Following figures are the complete status when you done.
Figure 10 VESA Mount on QDSP-2070
