Quantech QTC3150THE Manual

QUANTECH
FORM QTC3-EG6 (1118)
38

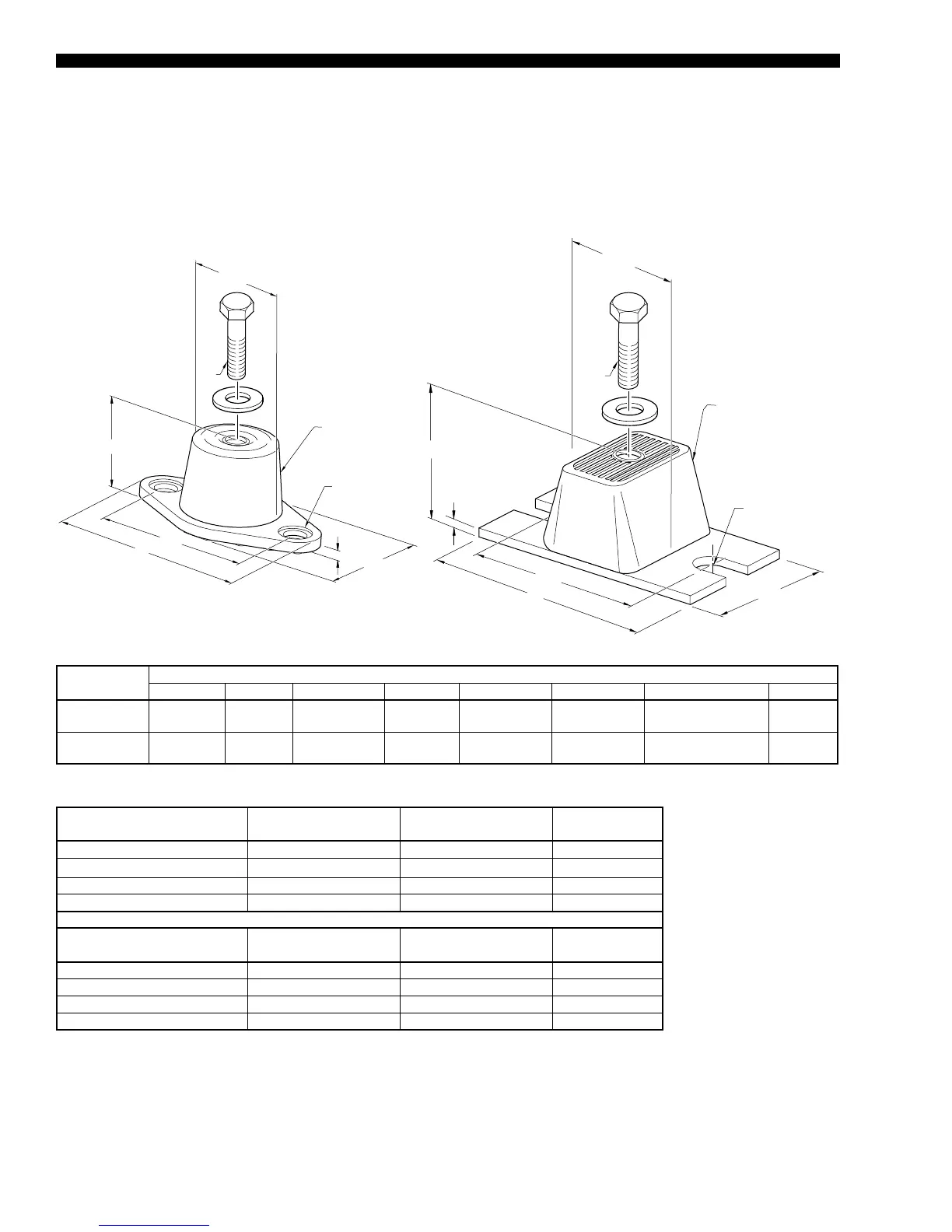

Isolator Details (Cont'd)
RD3 MODEL NUMBER
RATED CAPACITY
LBS (KG)
RATED DEFLECTION
IN (MM)
DURO (± 5)
RD3-BROWN-WR
250 (113) 0.5 (12) 40
RD3-BRICK RED-WR
525 (238) 0.5 (12) 50
RD3-LIME-WR
750 (340) 0.5 (12) 60
RD3-CHARCOAL-WR
1100 (499) 0.5 (12) 70
RD4 MODEL NUMBER
RATED CAPACITY
LBS (KG)
RATED DEFLECTION
IN (MM)
DURO (± 5)
RD4-BROWN-WR
1500 (680) 0.5 (12) 40
RD4-BRICK RED-WR
2250 (1021) 0.5 (12) 50
RD4-LIME-WR
3000 (1361) 0.5 (12) 60
RD4-CHARCOAL-WR
4000 (1814) 0.5 (12) 70
RD3
ISOLATORS
ELASTOMERIC ISOLATOR
LD17304
CD
CD
HF
HF
BT
BT
AL
L
AL
L
W
W
DW
DW
MOLDED
DURULENE
MOLDED
DURULENE
R = 0.280 Slot
Typ 2 Places
Ø = AD Thru
Typ 2 Places
RD4
ISOLATORS
MOUNT
TYPE
DIMENSION DATA (INCHES)
L W HF AL AD BT CD DW
RD3-WR
5.5
(139.7)
3.38
(85.85)
2.88
(73.15)
4.13
(104.90)
0.56
(14.22)
0.25
(6.35)
1/2-13 UNC X 1
2.5
(63.5)
RD4-WR
6.25
(158.7)
4.63
(117.60)
2.75
(69.85)
5
(127)
0.56
(14.22)
0.38
(9.65)
1/2-13 UNC X 1
3
(76.2)
