Errors statuses
Most ECU-s can display current error status besides the error saving. Statuses
show additional information on the code. For example, the code is active or it has
been active but it’s currently not having the code.

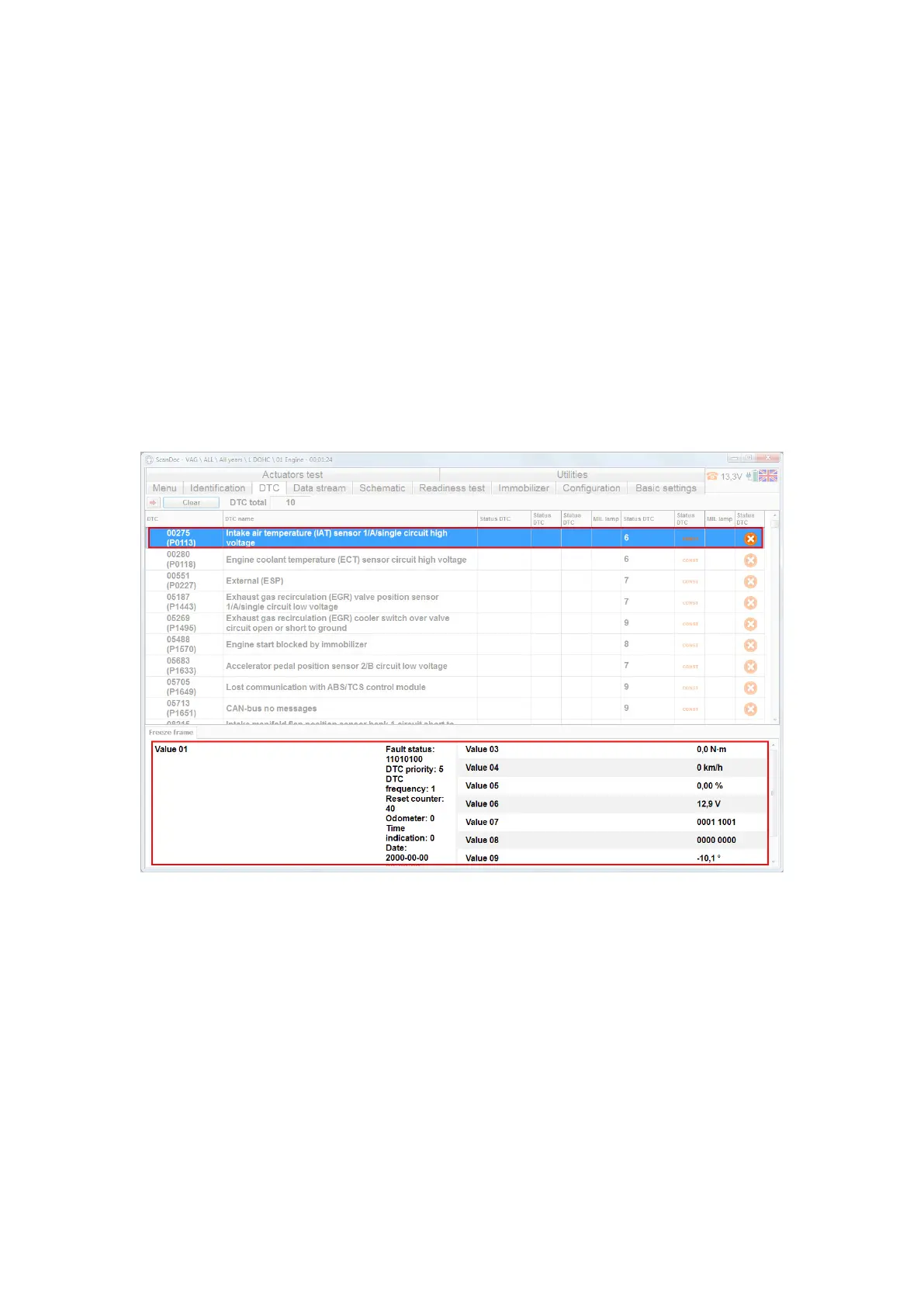

Saved data when there are errors (Freeze frame)
Some units support the Freeze frame mode. When an error appears, information
on denite settings is saved to the control unit memory. This enables to determine
conditions under which the error appears. Freeze frame is saved for each error
separately.
To get the information, use left mouse button and select the error’s name. Freeze
frame will be displayed for selected error.
Some ECU-s can show several Freeze frames for one error code.
Data before, during and after DTC (Diagnostic trouble code) appeared are usually
saved.
