Quantum Data 700 Series User Manual

3

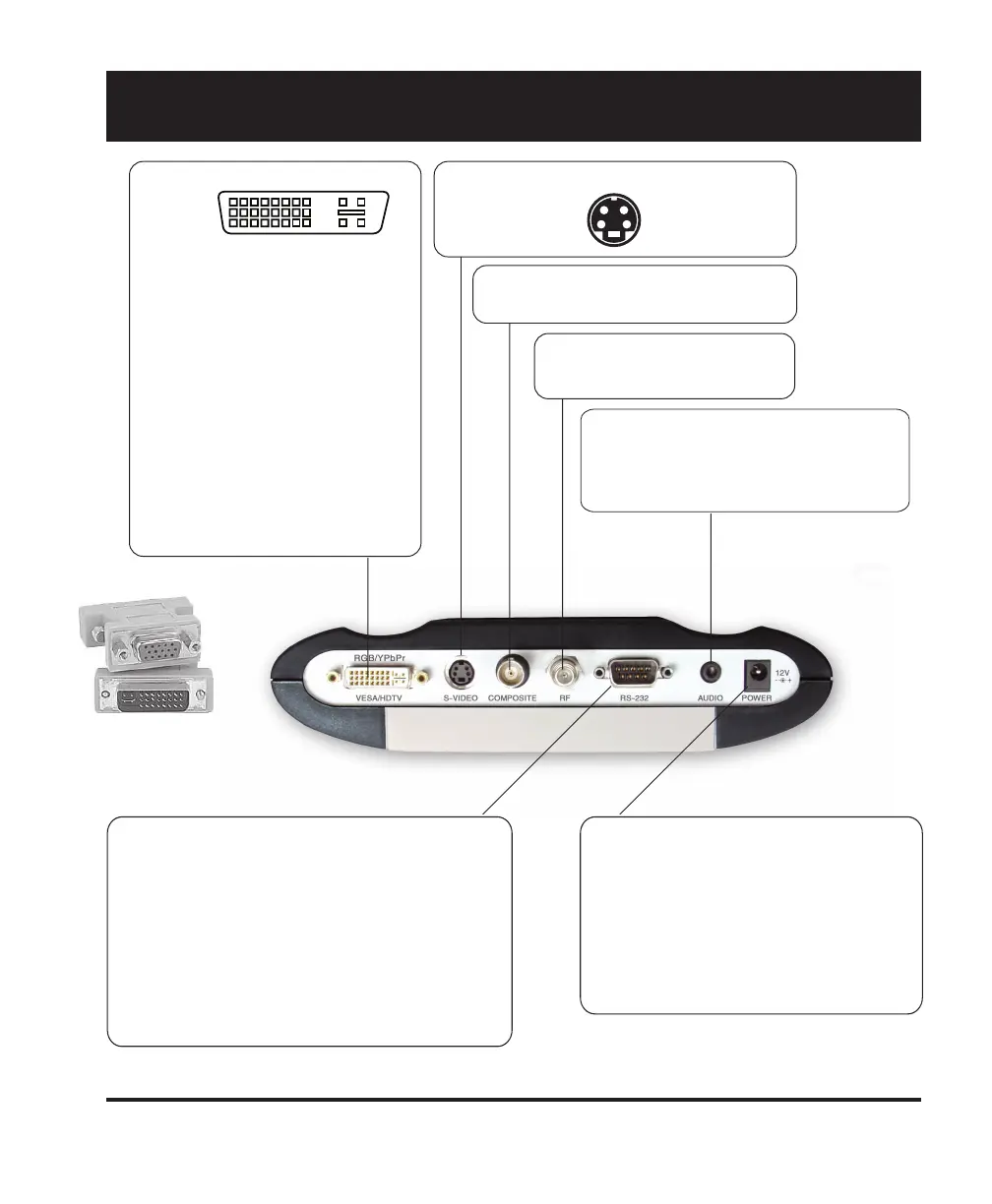

Computer Interfaces
RS-232 9-Pin D-Sub Plug
Pin Signal
1 No connection
2 Data in (Rx)
3 Data out (Tx)
4 DTR out
5 Ground
6 No connection
7 RTS out
8 CTS in
External DC Power /
Battery Recharge Input
Warning: Using an external power source other than the
Quantum Data supplied AC power supply may injure the
operator and damage the generator.
Center pin: +12.0 VDC
Outer sleeve: - (Ground)
Factory defaults
9600 baud
8 data bits
No parity
1 stop bit
X on - X off
Pinout same as for 9 pin PC-AT serial port connector
DVI interface on 700
outputs analog signals
only, using included
DVI-to-VGA adaptor.
DVI-I
Pin Signal Pin Signal
1 TMDS data 2- 16 Hot plug detect
2 TMDS data 2+ 17 TMDS data 0-
3 TMDS data 2/4 18 TMDS data 0+
shield 19 TMDS data 0/5
shield
4 TMDS data 4- 20 TMDS data 5-
shield 21 TMDS data 5+
5 TMDS data 4+ 22 TMDS clock shield
6 DDC clock 23 TMDS clock+
7 DDC data 24 TMDS clock-
8 Analog vertical sync
9 TMDS data 1-
10 TMDS data 1+
11 TMDS data 1/3 C1 Analog red
shield
12 TMDS data 3- C2 Analog green
13 TMDS data 3+ C3 Analog blue
14 +5V power C4 Analog horz sync
15 Ground C5 Analog ground
S-Video
Chrominance (C) Luminance (Y)
Ground Ground
NTSC/PAL BNC
NTSC/PAL RF
(Active on 701 only)
Stereo Audio - 3.5 mm phone jack
Tip Left channel (1 KHz)
Ring Right channel (2 KHz)
Sleeve Ground
17 24
16 C5
C1 C218
9
C3 C4
