Quantum 610 User Manual

14 www.quantumrehab.com Quantum 610
III. YOUR POWER CHAIR
THE QUANTUM 610
The Quantum 610 has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typically, the
seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/brake assem-
blies, two drive wheels, four caster wheels, two batteries, and wiring harnesses. See figure 5, 6, and 7.
SEATBACK
REAR
SHROUD
DRIVE WHEEL
CASTER WHEEL

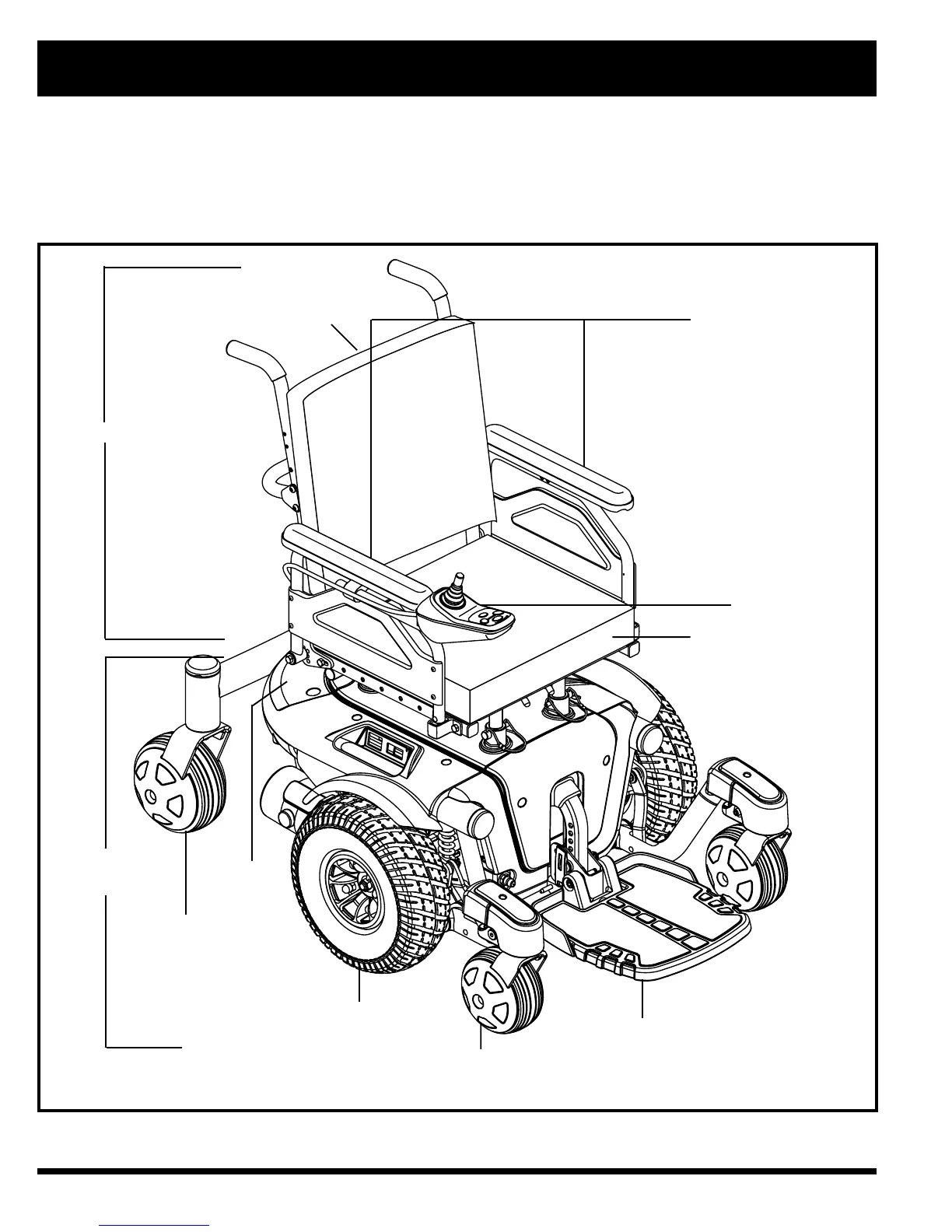

Figure 5. The Quantum 610 (Optional Seating System Shown)
POWER BASE
ASSEMBLY
SEAT ASSEMBLY
FOOT RIGGING
(FOOT PLATFORM SHOWN)
SEAT BASE
ARMRESTS
CONTROLLER
(VSI SHOWN)
CASTER WHEEL

Quantum 610 Specifications

General

Weight Capacity	300 lbs
Maximum Speed	6 mph
Battery Range	Up to 15 miles
Caster Wheels	6 inches
Frame Material	Steel
Foldable	No
Legrests	Swing-away
Seat Width	18 inches
Seat Depth	16 inches
Armrests	Adjustable
Battery Size	Two 12V 22NF
