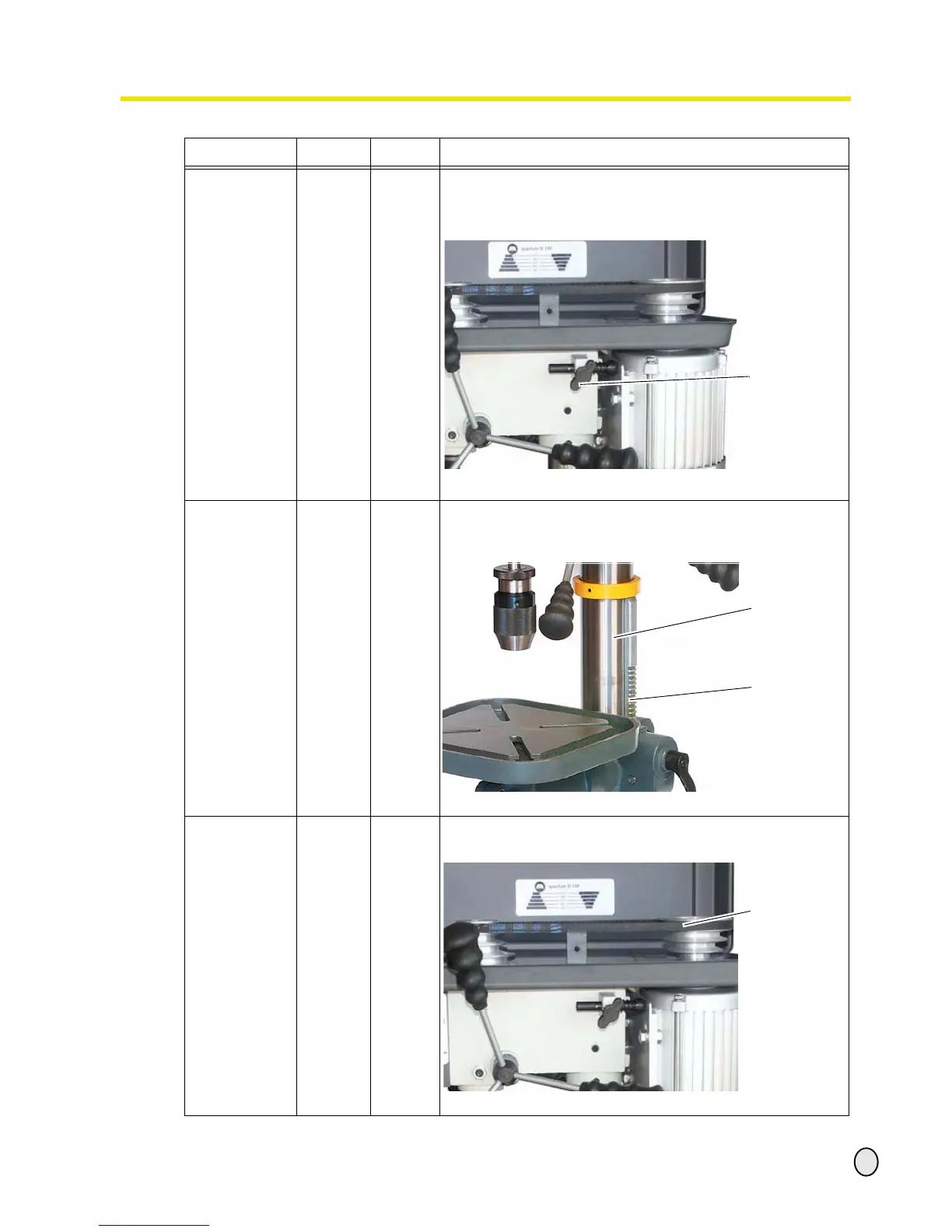

Page 36 Drilling machine B 13 / B14 / B16 / B20 / B25 / B32 Version 1.2.5 18 / 01 / 2008
every week
attachment screws
V-belt tension
• Check if the attachment screws for the V-belt tension on the left
and right side of the drilling head are well fastened.
• Check if the V-belts are well tightened. Checking the tension of
the V-belts,
 „Speed alternation“ on page 26.
Illustr. 5-2: B20 drilling head on the right
every month
tripod and rack
lubricate
• Lubricate the tripod regularly with commercial oil.
• Lubricate the rack regularly with commercial grease (e.g. fric-
tion bearing grease).
Illustr. 5-3: tripod
every six
months
V-belts on the drilling head
visual inspection
• Check the V-belt on the drilling head that it is not being porous
or used.
Illustr. 5-4: V-belts
Interval Where? What? How?
guide rail screws
on the right
tripod
toothed rack
V-belts
