Installing the 1U Rackmount Enclosure in a Rack 19
LTO-3, LTO-4, LTO-5, LTO-6, LTO-7 and LTO-8

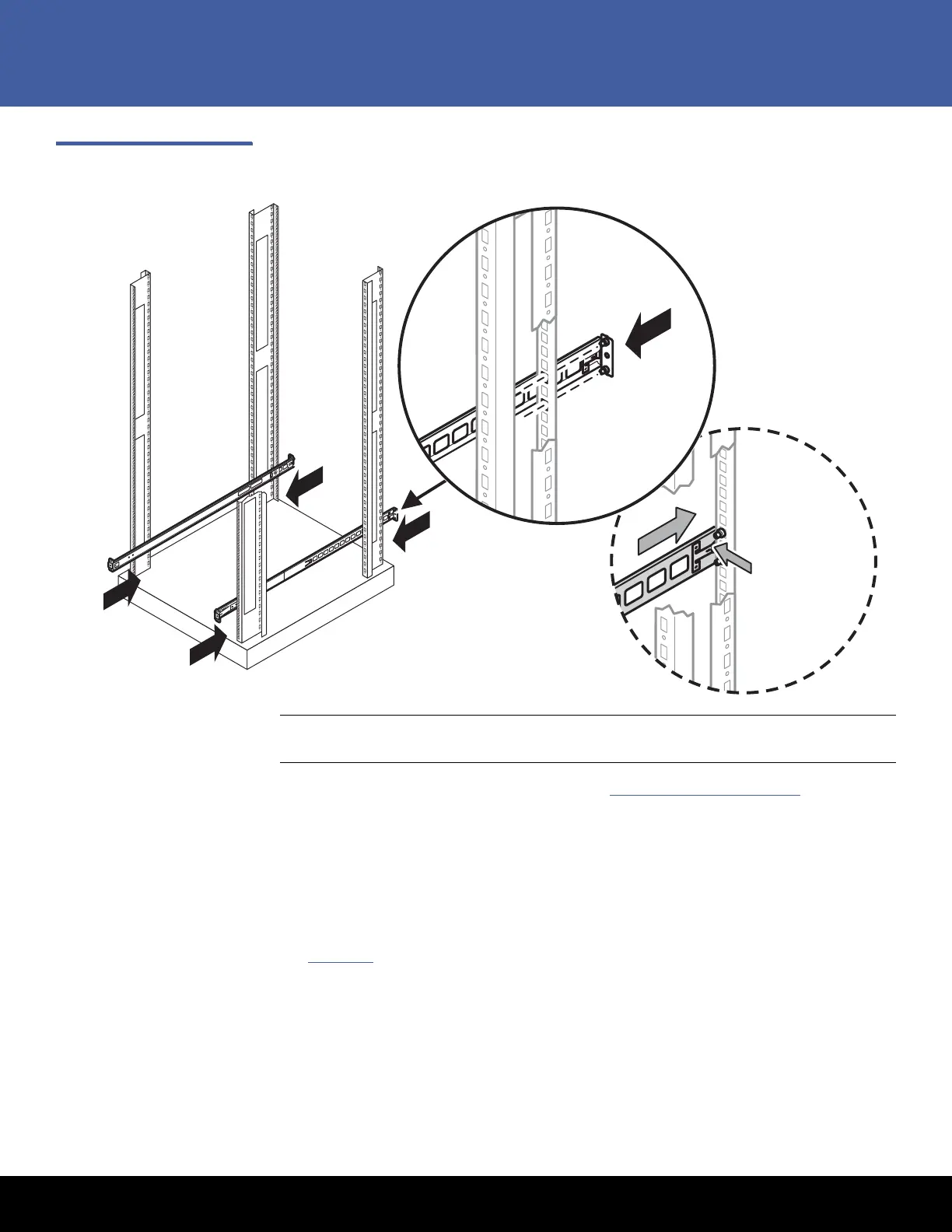

Figure 23 Installing the Rack
Rails in the Back of the Rack
Note: To remove the rail for repositioning, push the spring-loaded tab on the outside
of the rack rail and slide rearward.
The rail installation is complete. Continue with Completing the Installation
on page 22.
Installing in a Rack with 10-32 in. Threaded Holes
For installation in racks with 10-32 threaded holes in the vertical mounting bars, the
pins supplied on the rails must be removed. The rails will be attached with user-supplied
10-32 x.375 screws.
1 Remove the pins and threaded plates from both ends of each rack rail (see
Figure 24
). These pieces will not be used.
