Installing a Second Tape Drive or Replacing a Tape Drive 9
LTO-3, LTO-4, LTO-5, LTO-6, LTO-7 and LTO-8
3 Secure the mounting brackets with two screws on each side of the new tape drive
(see Figure 8
).

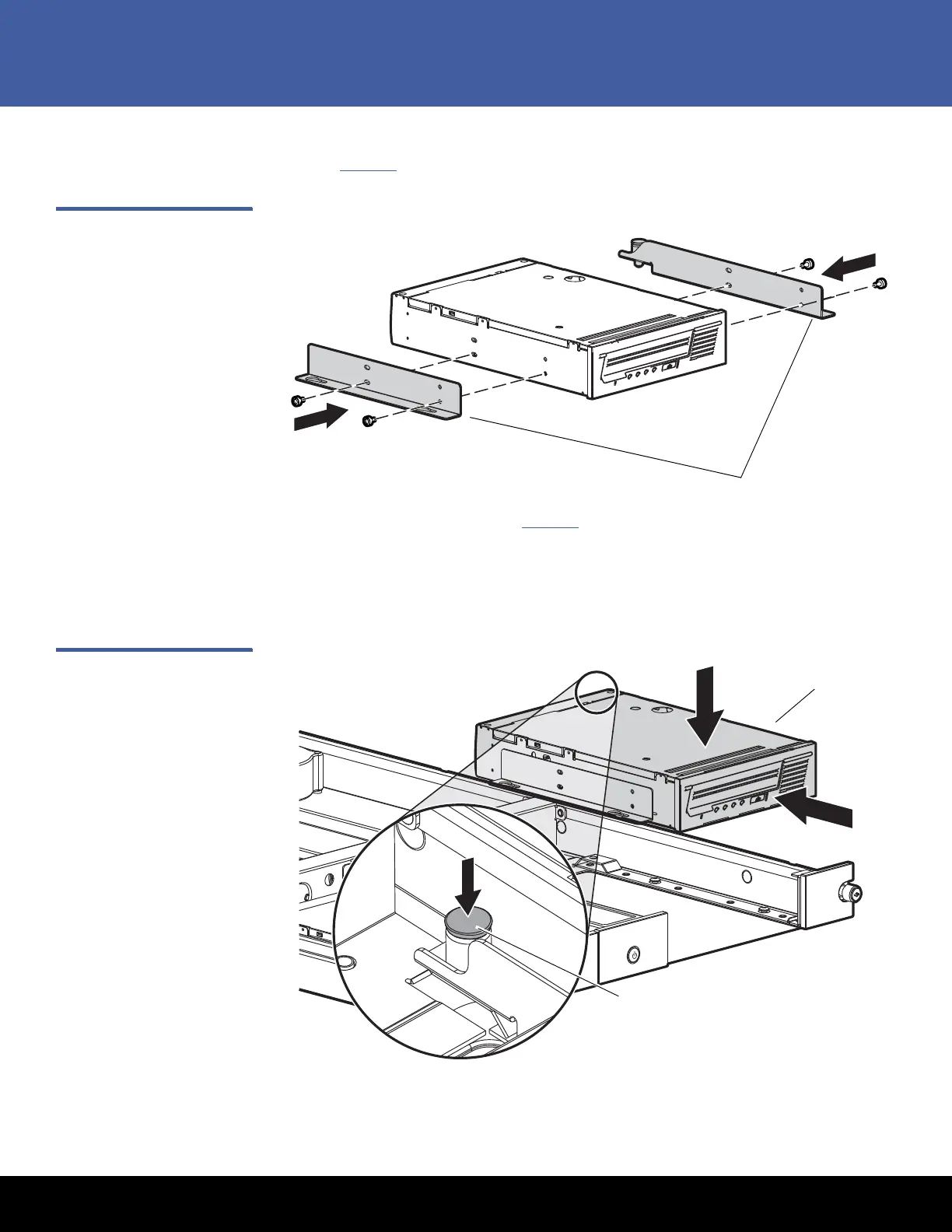

Figure 12 Installing the
Mounting Brackets
4 Install the new tape drive (see Figure 9):
a Position the mounting bracket keyhold slots over the mounting posts.
b Slide the drive toward the back of the enclosure.
c The spring-loaded button will automatically snap into place.
Figure 13 Installing the Tape
Drive
Mounting bracket s
Spring-loaded button
Tape drive
