Quantum Q6 EDGE 3 User Manual

13

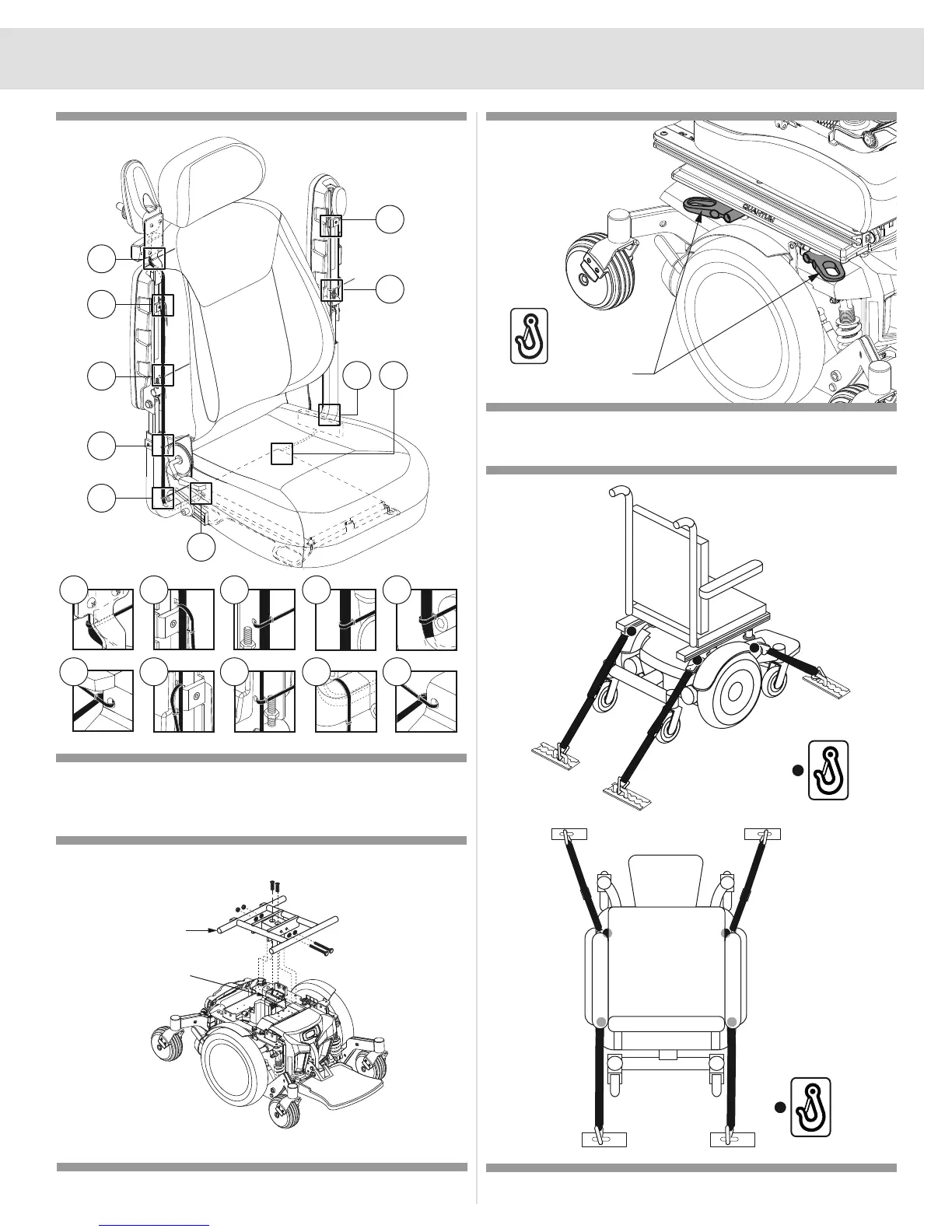

Figure 11. Power Elevating Seat Actuator
Seat Plate
Interface
Bracket
Actuator
ASSEMBLY
Figure 13. Unoccupied Transit System Securement Points
FRONT OF VEHICLE
Securement Brackets
(2 of 4 Shown)
Figure 12. Transit System Securement Brackets
1
1
7
8
9 10
2
3
4
5
6
2 3 4 5
6 7 8 9 10
Figure 10. Controller Harness Routing on a Captain's
Seat with iLevel

Quantum Q6 EDGE 3 Specifications

General

Maximum Speed	6 mph
Weight Capacity	300 lbs
Frame Material	Steel
Turning Radius	20.5 inches
Battery Range	Up to 15 miles
Ground Clearance	3 inches
Overall Width	24 inches
Drive Wheels	14 inches
Front Casters	6 inches
Rear Casters	6 inches
Battery Charger	Off-board, 5 amp
Controller	Q-Logic 3
Seating	Synergy® Seating System
Standard Seat Size	16x16 to 20x20 inches
Warranty on Frame	5 years
Seat Width	16" - 20"
Seat Depth	16 to 22 inches
Wheel Size	14 inches
Rear Wheel Size	6 inches
Legrest Type	Swing-away
