Foot Platform Height Adjustment
The foot platform height is easily adjusted to several different
heights.
To raise or lower the foot platform:
1. Remove the hardware from the foot platform bracket.
See figure 17.
2. Raise or lower the foot platform to the desired height.
3. Reinstall the hardware into the foot platform bracket and
tighten.
Foot Platform Depth Adjustment
You can adjust the depth of the foot platform.
To adjust the foot platform depth:
1. Remove the hardware from the foot platform bracket.
See figure 17.
2. Move the foot platform in or out to the desired depth.
3. Reinstall the hardware into the foot platform bracket and
tighten.
Foot Platform Angle Adjustment
You can adjust the angle of the foot platform.
To adjust the foot platform angle:
1. Flip up the foot platform and locate the screw. See
figure 17.
2. Turn the screw to raise or lower the front of the foot
platform.
Power Elevating Seat (Optional)
If your power chair is equipped with a power elevating seat,
you can change the seat height either through the controller,
through a toggle, or through an optional single switch
mounted to one of the armrests.
To change the seat height through toggle switch:
1. Press forward on the toggle switch to raise the seat. See
figure 18.
2. Pull back on the toggle switch to lower the seat.
Do not allow the motor to run more than a few seconds
after the mechanism reaches the top or bottom limit.
To change the seat height through the single switch:
1. Press and hold the single switch button to raise the seat.
Release the button to stop.
2. Press and hold the single switch button to lower the seat.
Release to stop.
If a latch function is on:
1. Press the single switch button to raise the seat. Press
the single switch button again to stop.
2. Press the single switch button to lower the seat. Press
the single switch button again to stop.

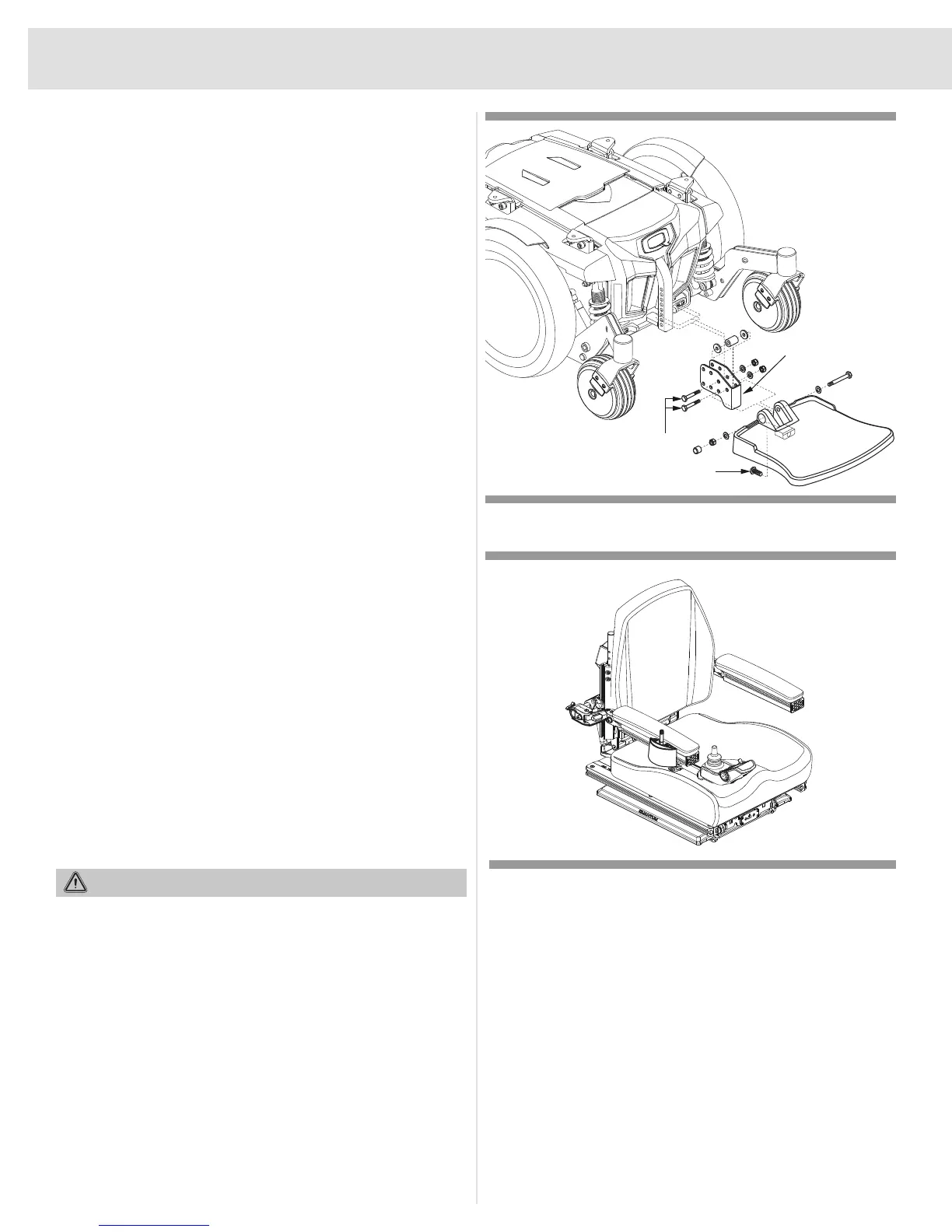

Figure 17. Foot Platform Adjustment
Foot Platform
Bracket
Screw
Hardware
Figure 18. Power Elevating Seat Toogle Switch
WARNING!
COMFORT ADJUSTMENTS
