Chapter 3 Operation
18
Models QT-740 & QT-750 - Operator’s Manual
Loading Cassette Tray (Midwest Type)
To load a film cassette into a "Midwest" type cassette tray, proceed as fol-
lows:
1. Float the table top fully back.
2. Pull cassette tray from receptor using tray handle (see Figure 8).
3. Pull back on front cassette grip to open both grips.
4. Position slide guides ("L" brackets seated in channels) to cassette
size using indicators on cassette tray (press center brass button
to allow movement).
5. Insert cassette into tray (back end first).
6. Lock cassette into tray.
7. Push front grip against cassette.
8. While pushing front grip against cassette, turn cassette lock han-
dle to lock position.
9. Push tray into receptor. The cassette is now in exposure position.
CASSETTE GRIP
TRAY HANDLE
SLIDE GUIDES
LOCK HANDLE

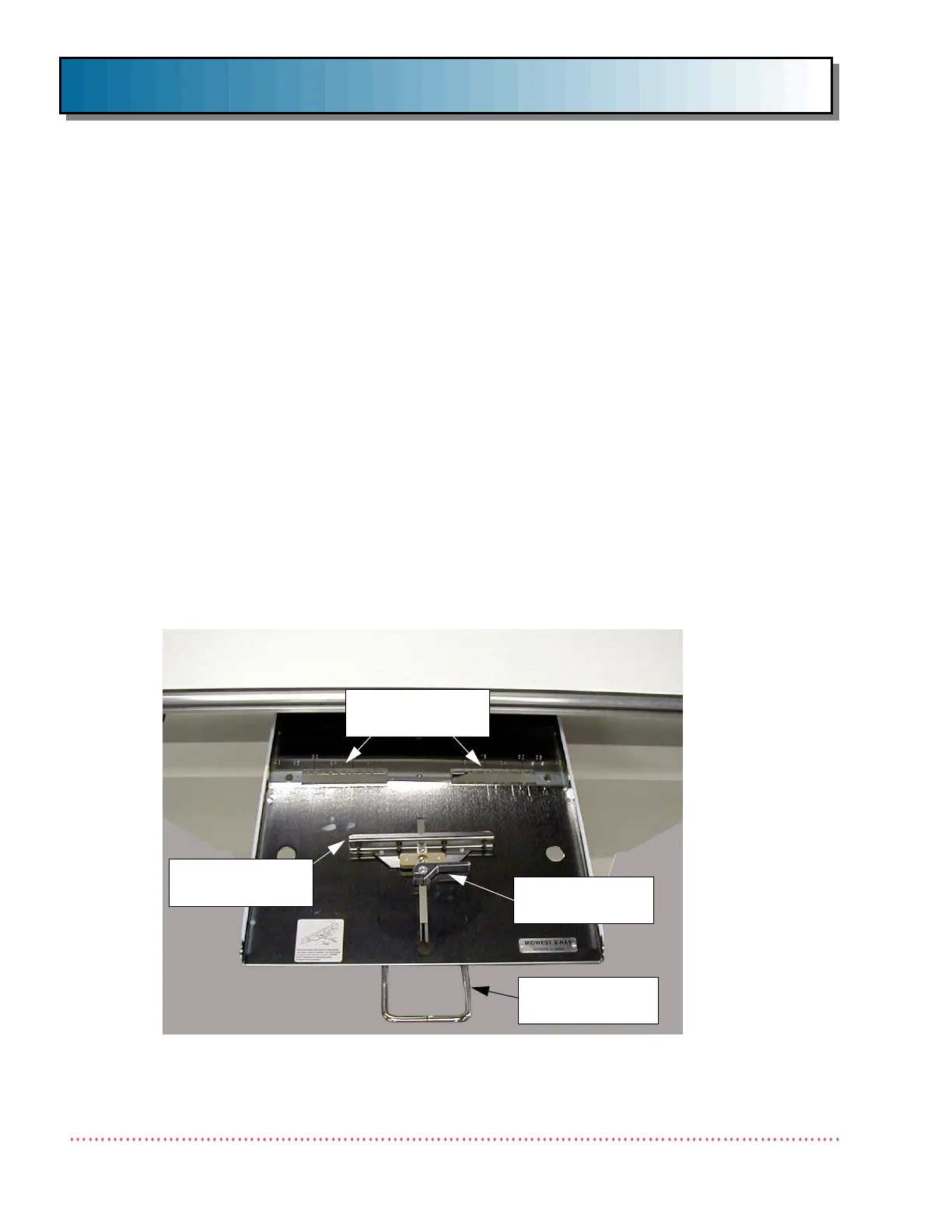

Figure 8. Midwest Cassette Film Tray
