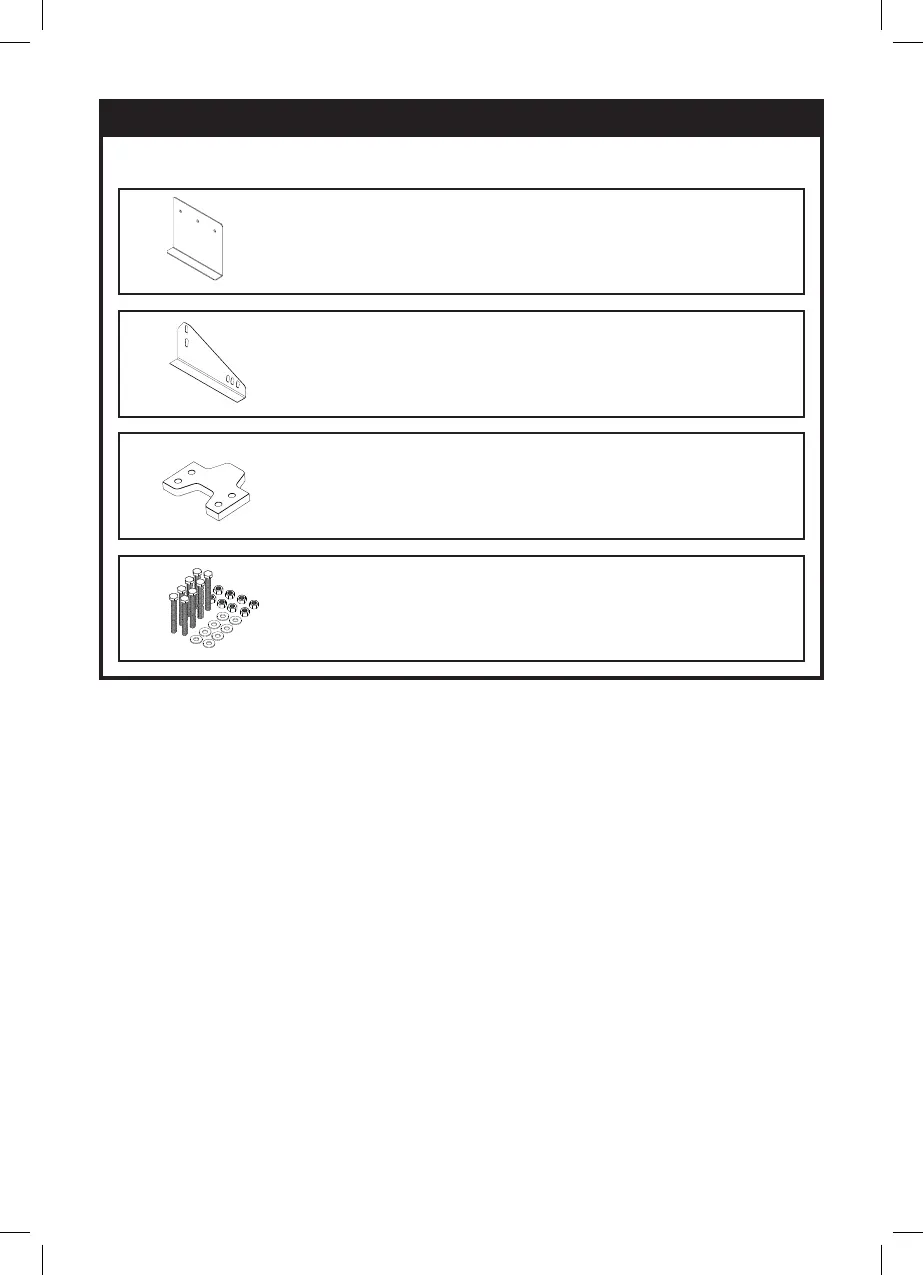

Low Prole Chassis Adapter Plates (Part No. CM-029)
If your chassis frame height is less than 140mm these plates must be tted to lower the
assembly to provide the correct height of 185mm. Drilling of your chassis may be required.
Note: In some countries, the installation must be checked by a professional technician in order
to adhere to local regulations.
Narrow Gauge Chassis Adapters (Part No. CM-030)
These plates must be utilised if you have an AL-KO Vario III/AV chassis which has a frame
thickness of less than 2.8mm. These must be positioned behind the axle using pre-drilled holes
already available on the chassis; so your mover must be tted behind the axle.
16mm Spacers - 1 pair (Part No. CM-028/Q)
Use spacers to lower the mover assembly if your chassis has a frame height of between 140
to 185mm. A maximum of 3 sets of spacers can be utilised to achieve correct frame height of
185mm. A set of extended clamp bolts must be used in conjunction with these spacers (Part
No. CM-031).
[For use with Classic Clamp only.]
Set of 8 M10 x 100 Bolts (Part No. CM-031)
Set of 8 extended clamp bolts for use with 16mm spacers.
[For use with Classic Clamp only.]
Additional chassis clamp adapters shown below are available for purchase:
Optional Fitting Adapters
