ZK105L User Manual
3

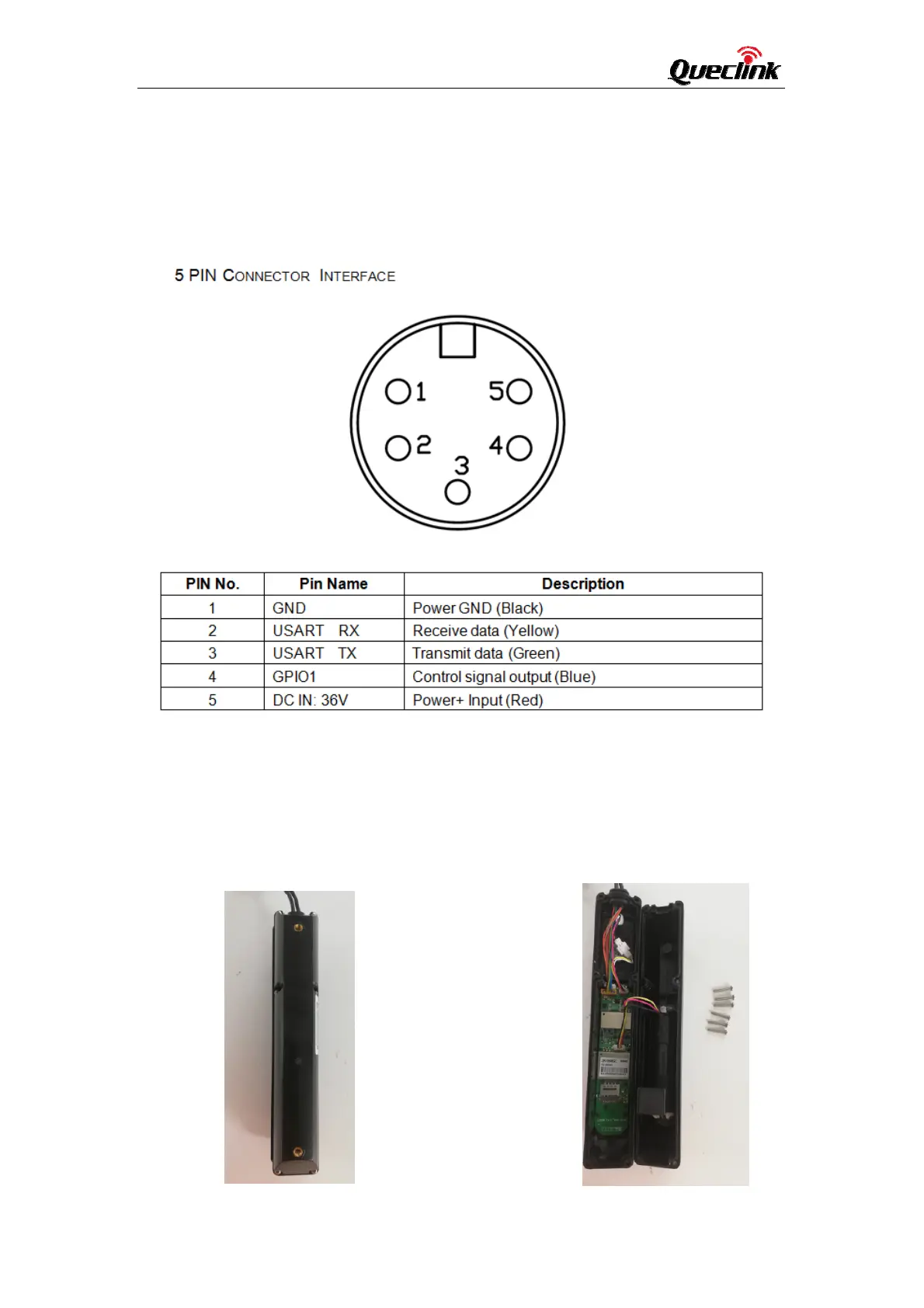

3.1.2Interface Definition
Thepowercableinput36V,redwirefor
positive
,blackwirefor
negative

4 Getting Start
4
.1 Install SIM Card
- Turn off the ZK105L ;
- Open ZK105L and insert SMI card as follows
1Go screw down.
Turn on the machine
