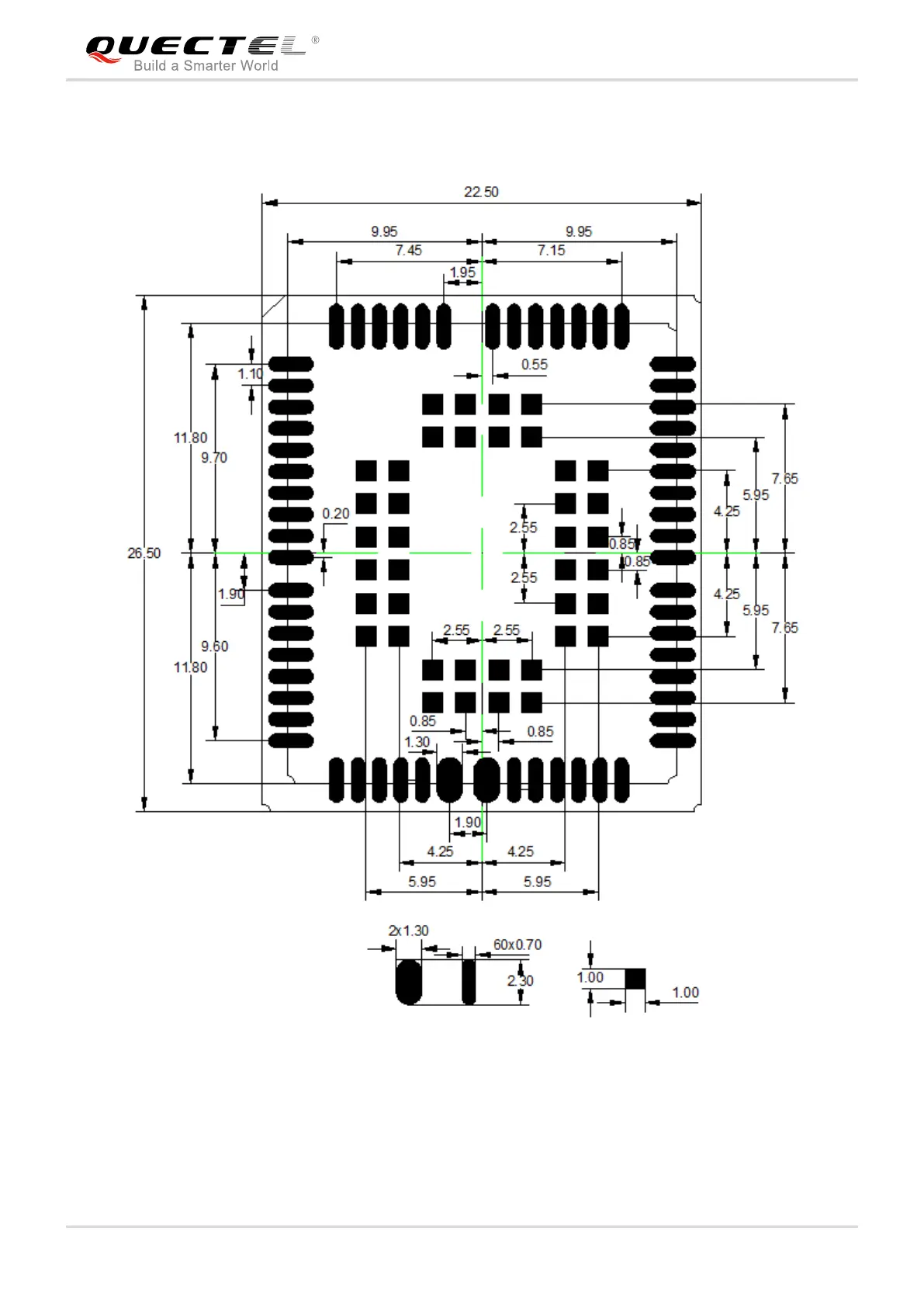

The following figure shows the recommended compatible footprint of UG96, UG95 and M95 R2.0.
Figure 20: Recommended Footprint of UG96/UG95/M95 R2.0
