GSM/GPRS/NB-IoT Module Series
BC68&M66 Compatible Design
BC68&M66_Compatible_Design 26 / 31
The recommended stencil design for M66 is shown as below.

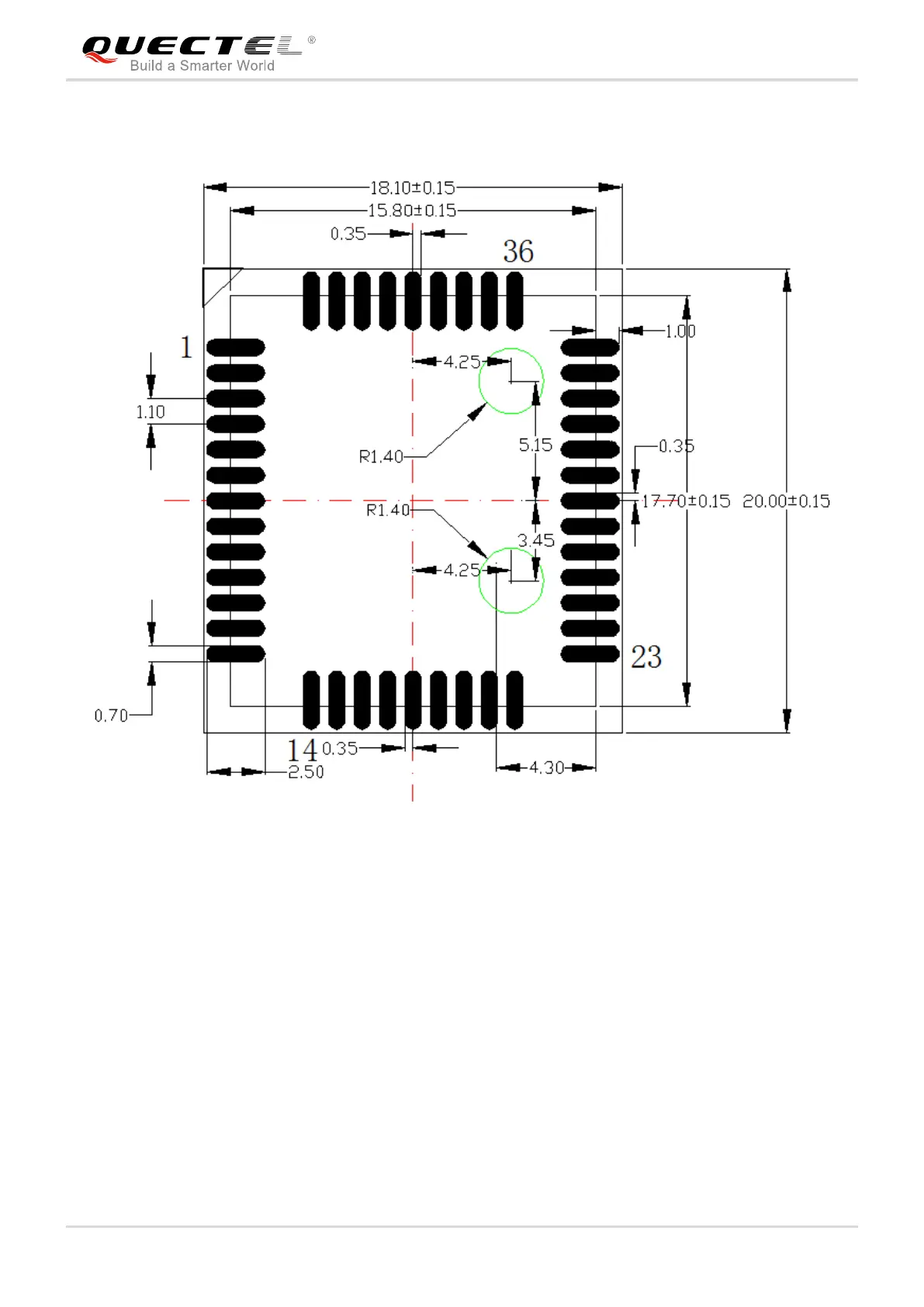

Figure 18: Recommended Stencil Design for M66 (Unit: mm)
