10 - Spare parts
No. DESCRIPTION CODE
1 OSP STAINLESS STEEL WINDLASS LEVER FVSSLVSH4000A00
2 OSP DRUM BUSH DK6/RY6 FVSSGMSDCPDK600
3 OSP WINDLASS DRUM DK6/RY6/TB6 FVSSMSE06000A00
4 OSP CLUTCH CONE KIT DK6 FVSSCF30DK00A00
5 OSP GYPSY COVER DK6/RY6 FVSSCPBBDK60A00
6 A OSP GYPSY 12MM-13MM DK6/RY6 FVSSB4012130A00
6B OSP GYPSY 12.5MM STUD DK6/RY6 FVSSB40125S0A00
6C OSP GYPSY 14MM DK6/RY6 FVSSB4014000A00
6D OSP GYPSY 16MM DK6/RY6 FVSSB4016000A00
7 A OSP SHAFT KIT DK6/RY6 FVSSADKRY000A00
7B OSP SHAFT KIT DK6/RY6 D FVSSADKRYD00A00
8 OSP BAND BRAKE KIT DK6 ST. STEEL FVSSVLTDK60XA00
9 A OSP CHAIN PIPE KIT DK6 X FVSSPSCDKX00A00
9B OSP CHAIN PIPE KIT DK6 Y FVSSPSCDKY00A00
10 OSP CHAIN STRIPPER KIT DK6 FVSSSCDK0000A00
11 A OSP WINDLASS BASE DK6 X SERIES FVSSBDK4X000A00
11B OSP WINDLASS BASE DK6 Y SERIES FVSSBDK4Y000A00
12 A OSP TOP DK6 X 12.5MM ST FVSSTDKX012SA00
12B OSP TOP DK6 X 12MM-13MM FVSSTDKX4012A00
12C OSP TOP DK6 X 14MM FVSSTDKX4014A00
12D OSP TOP DK6 X 16MM FVSSTDKX4016A00
12E OSP TOP DK6 DX 12.5MM ST FVSSTDKXD12SA00
12F OSP TOP DK6 DX 12MM 13MM FVSSTDKX4D12A00
12G OSP TOP DK6 DX 14MM FVSSTDKX4D14A00
12H OSP TOP DK6 DX 16MM FVSSTDKX4D16A00
12I OSP TOP DK6 Y 12.5MM ST FVSSTDKY012SA00
12L OSP TOP DK6 Y 12MM-13MM FVSSTDKY4012A00
12M OSP TOP DK6 Y 14MM FVSSTDKY4014A00
12N OSP TOP DK6 Y 16MM FVSSTDKY4016A00
12O OSP TOP DK6 DY 12.5MM ST FVSSTDKYD12SA00
12P OSP TOP DK6 DY 12MM 13MM FVSSTDKY4D12A00
12Q OSP TOP DK6 DY 14MM FVSSTDKY4D14A00
12R OSP TOP DK6 DY 16MM FVSSTDKY4D16A00
13
STAINLESS STEEL REMOTE BRAKE HANDWHEEL DK6/RY6 FSRBDK000000A00
14 OSP GEAR MOTOR 17.9CC GR2 B5/100 FVEMFEL179B5100
15 A OSP WINDLASS MOTOR 3000W 24V RY6/DK6 FVSSM3024DK0A00
15B OSP WINDLASS MOTOR 3500W 24V RY6/DK6 FVSSM3524DK0A00
16 A
OSP WINDLASS MOTOR 4000W 230/400V B5 TG110 FVSSM4000AC0A00
16B
OSP WINDLASS MOTOR 5500W 230/400V B5 TG110 FVSSM5500AC0A00
17 A OSP MOTOR GEARBOX 3000W 24V RY6/DK6 FVSSR3024DK0A00
17B OSP MOTOR GEARBOX 3500W 24V RY6/DK6 FVSSR3524DK0A00
18 A OSP MOTOR GEARBOX 4000W 230/400V DK6 FVSSR40TR000A00
18B OSP MOTOR GEARBOX 5500W 230/400V DK6 FVSSR55TR000A00
19 OSP HYDRO MOTOR GEARBOX 4000W DK6 FVSSRHYTR000A00
20 OSP GEARBOX 4000W WINDLASS DK6/RY6/TB6 FVSSMR400000A00

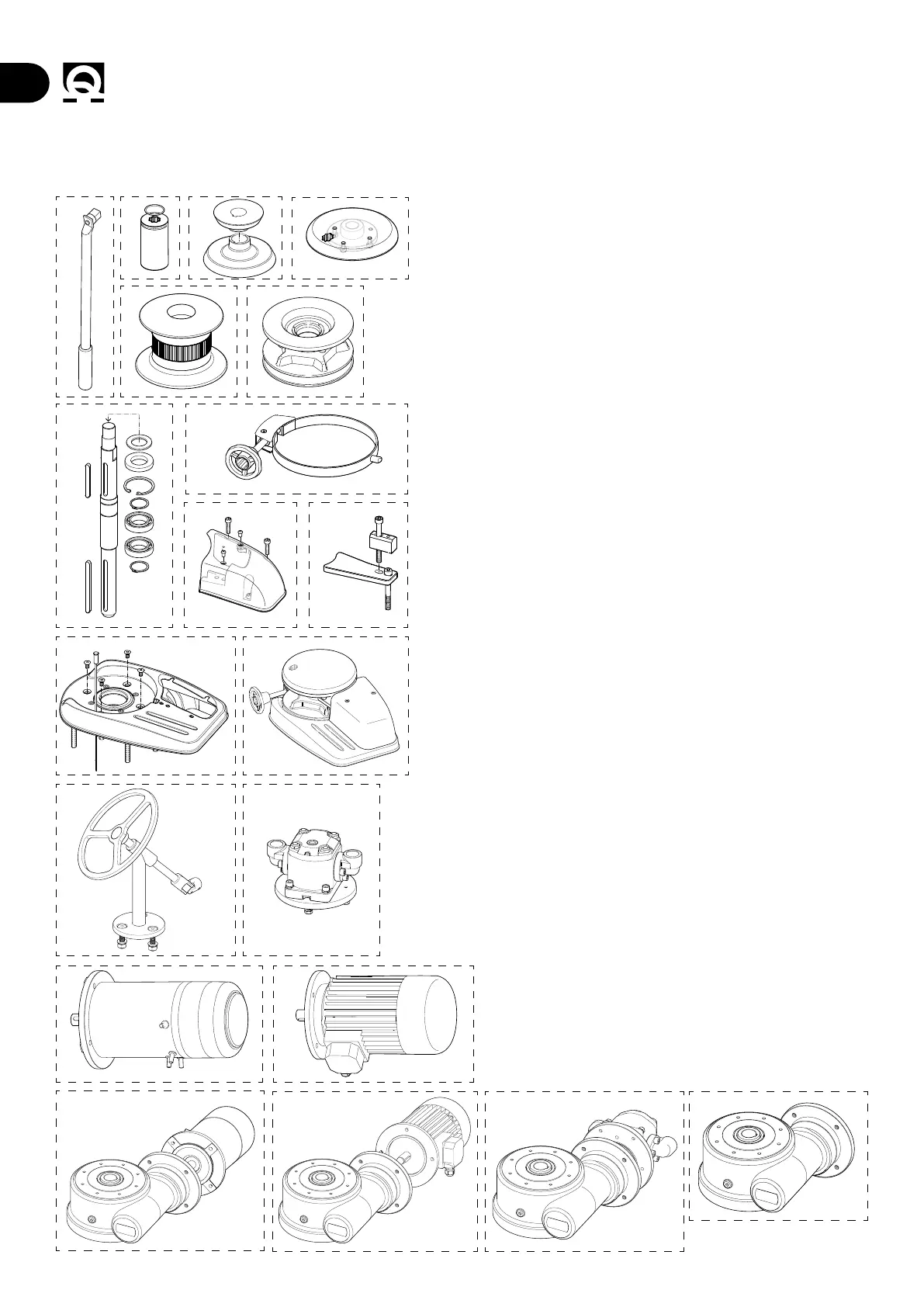

The images are purely indicative and may not fully reect the product characteristics
1
7 8
9 10
11 12
13
15
16
14
17 18 19 20
2
3
54
6
