QUICK DKSeries INSTALLATION AND USER’S MANUAL - REV005A
8
4 - Installation
4.0 - Installation requirements

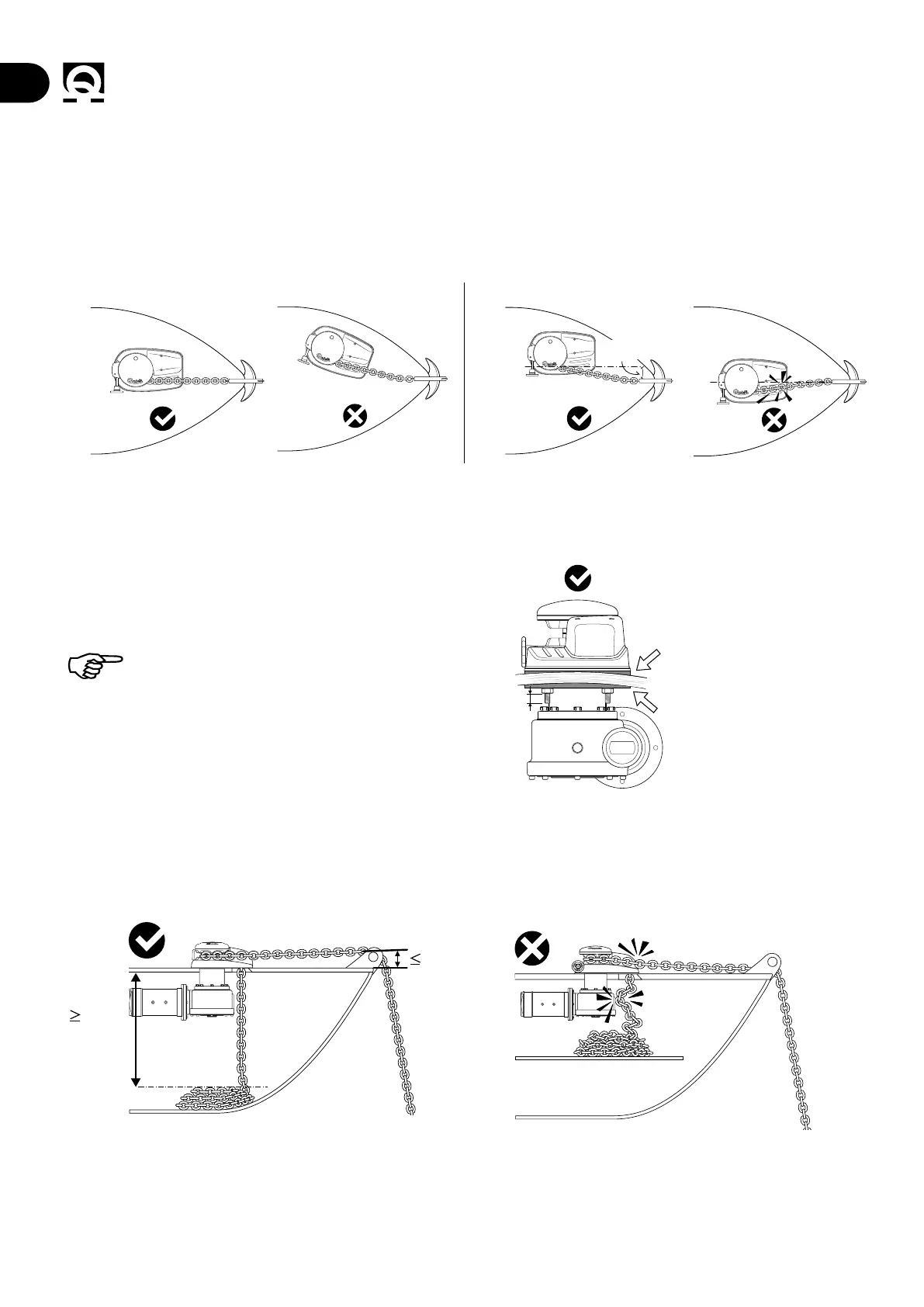

A. ROLLER ALIGNMENT
the windlass must be positioned by aligning the gypsy with the bow roller. Precise alignment of the windlass is essential for
the correct operation of the product (g.1). A positive tilt of up to 10° is allowed (g.2).
C. DECK LEVEL
Ensure that the upper and lower surfaces of the deck are as parallel as possible. If this is not the case, compensate the
difference appropriately.
D. PEAK DEPTH & ROLLER HEIGHT
There must be no obstacles to the passage of cables, rope and chain under deck. Insufcient depth of the peak could cause
jamming. The roller height; a positive chain tilt with respect to the deck level up to 5° is permitted, the negative tilt must not
interfere with the windlass base
FIG.1 FIG.2
Max 10°
max
5 mm
(3/16")
5°
40cm
(16”)
Tighten nuts to the tightening torque
specied in the table (ch.1.1, page 5)
