QUICK DKSeries INSTALLATION AND USER’S MANUAL - REV005A
19
NO. NAME
1 WINDLASS LEVER
2 BUSH O-RING
3 “DK” SERIES CLUTCH BUSH
4 “DK” WINDLASS DRUM 4000W
5 “DK” GYPSY COVER 4000W
6 PIN
7 “DK” GYPSY COVER INSERT
8 SCREW
9 TOP CLUTCH CONE 4000W
10 A GYPSY 4000W 12.5 MM
10B GYPSY 4000W 12-13 MM
10C GYPSY 4000W 14MM
10D GYPSY 4000W 16 MM
11 BOTTOM CLUTCH CONE 4000W
12 REINFORCING WASHER
13 OIL SEAL
14 INTERNAL SNAP RING
15 EXTERNAL SNAP RING
16 BEARING 6008
17 SHAFT SERIES “DK/RY” 4000W
18 KEY
19 KEY
20 SHAFT SERIES “DK/RY” 4000W D
21 BRAKE BAND
22 BRAKE BAND PIN
23 SCREW
24 BRAKE BAND GUARD “DK”
25 WASHER
26 BRAKE BAND SHAFT “DK”
27 WASHER
28 BRAKE BAND KNOB “DK”
29 WASHER
30 NUT
31 CHAIN GUIDE SUPPORT “DK”
32 SCREW
33 CHAIN STRIPPER “DK”
34 SCREW
35 CHAIN STRIPPER INSERT “DK”
36 SCREW
37 CHAIN GUIDE COVER “DK“
38 SCREW
39 BASE COVER SERIES “DK”
40 SCREW
41 WINDLASS BASE SERIES “DK”
42 STUD
43 PIN
44 BASE INSERT O-RING
45 “DK” BASE INSERT
46 SCREW
47 BASE INSERT FLANGE
48 SENSOR COVER
49 SENSOR
50 GROWER
51 WASHER
52 SCREW
53 TG110 GEARBOX
54 WASHER
55 NUT
56 SCREW
57 MOTOR

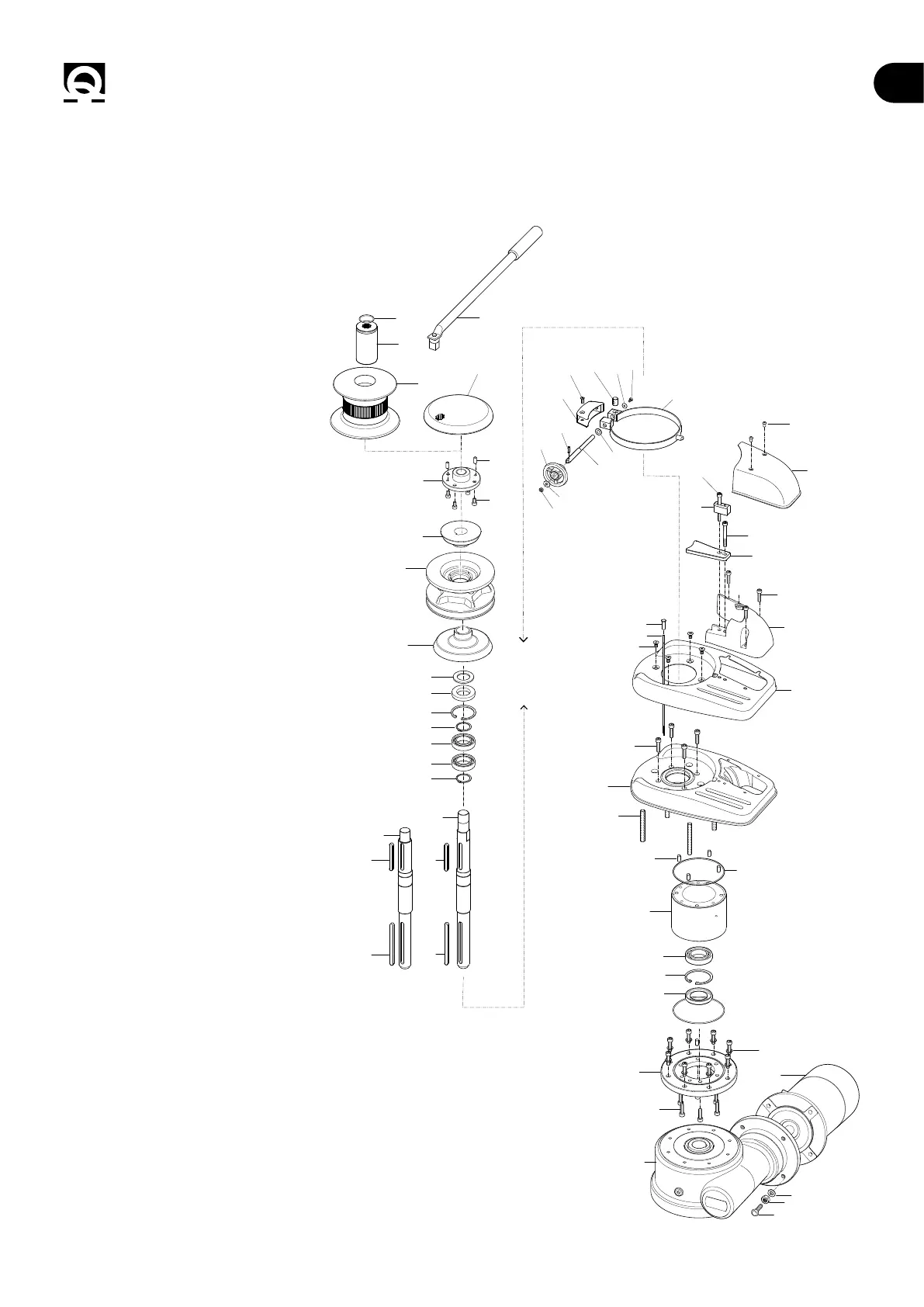

9 - List of components
1
3
2
4
5
7
8
6
9
10
11
12
13
14
15
16
16
15
18
17
20
19
18
19
42
43
44
45
14
13
16
24
23
22
51
52
25
26
21
33
35
34
36
38
37
39
40
48
49
32
32
31
47
32
50
57
46
41
29
27
28
30
53
54
56
55
