1° EXAMPLE: DP1312D
DP1 3 12 D
a
DP1 5 24
-
Name of the line:
[ DP1 ]
Motor power:
[ 3 ]
= 300 W
[ 5 ]
= 500 W
Motor supply voltage:
[ 12 ]
= 12 V
[ 24 ]
= 24 V
Drum:
[ D ]
= with drum
[ - ]
= without drum
(1) After an initial period of use.
(2) Measurements taken with a gypsy for a 8 mm chain.
(3) Minimum allowable value for a total length L<20m (see pag. 44). Determine the cable size according to the length of the wiring.
(4) With circuit breaker designed for direct currents (DC) and delayed-action (thermal-magnetic or hydraulic-magnetic).
(5) On request, shafts and studs can be supplied for greater deck thicknesses.
(6) Only on request.
HOW TO IDENTIFY THE WINDLASS THROUGH THE CODE:
A B C D
A B C D A B C D
2° EXAMPLE: DP1524
a
a
a
a
a
a
a
85 (3
7
/32)
271 (9
5
/8)
61 (2
13
/
32
) 69 (2
23
/
32
)
181 (7
23
/32)
11
/16)
134,4 (5
9
/32)
75,4 (2
31
/32)

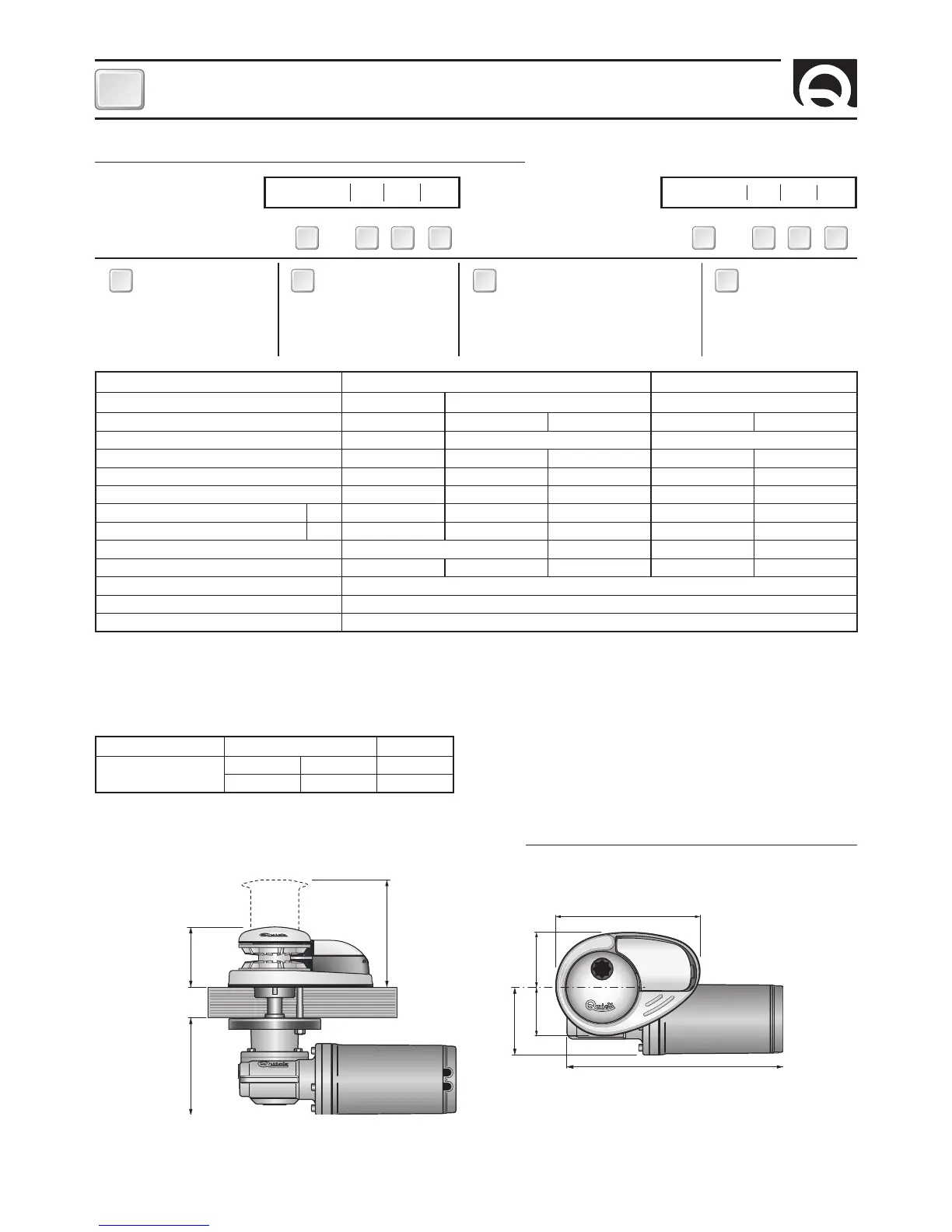

DIMENSIONS OF MODELS mm ( inch ) • DP1 300 / 500W - / D
(*) For the gypsy codes, please consult the exploded drawing on page 16.
MODELS
DP1 – / D DP1 HI SPEED
(6)
MOTOR POWER
300W 500W 500W
Motor supply voltage 12V 12V 24V 12V 24V
Maximum pull 370 kg (815,7 lb) 660 kg (1455,0 lb) 600 kg (1322,8 lb)
Maximum working load 120 kg (264,5 lb) 200 kg (440,9 lb) 220 kg (485,0 lb) 170 kg (374,8 lb) 200 kg (440,9 lb)
Working load 40 kg (88,2 lb) 65 kg (143,3 lb) 70 kg (154,3 lb) 65 kg (143,3 lb) 70 kg (154,3 lb)
Current absorption @ working load (1) 65 A 80 A 40 A 100 A 50 A
Maximum chain speed (2)
m/min
26,3 (86,3 ft/min) 28,9 (94,8 ft/min) 28,2 (92,5 ft/min) 43,0 (141,1 ft/min) 42,5 (139,4 ft/min)
Max. chain speed @ working load (2)
m/min
24,4 (80,1 ft/min) 24,3 (79,7 ft/min) 24,1 (79,1 ft/min) 34,5 (113,2 ft/min) 35,0 (114,8 ft/min)
Motor cable size (3) 16 mm
2
(AWG5) 10 mm
2
(AWG7) 25 mm
2
(AWG3) 10 mm
2
(AWG7)
Protection circuit breaker (4) 50 A 60 A 40 A 80 A 40 A
Deck thickness (5) 20 ÷ 30 mm (25/32” ÷ 1” 3/16)
Weight - model without drum 7,6 Kg (16,7 lb)
Weight - model with drum 8,4 Kg (18,5 lb)
GYPSY (*)
6 mm 1/4”
Chain size
6 mm 6 mm 1/4”
DIN 766 ISO BBB
