Quick GENIUS Series - MAINTENANCE

22
GB

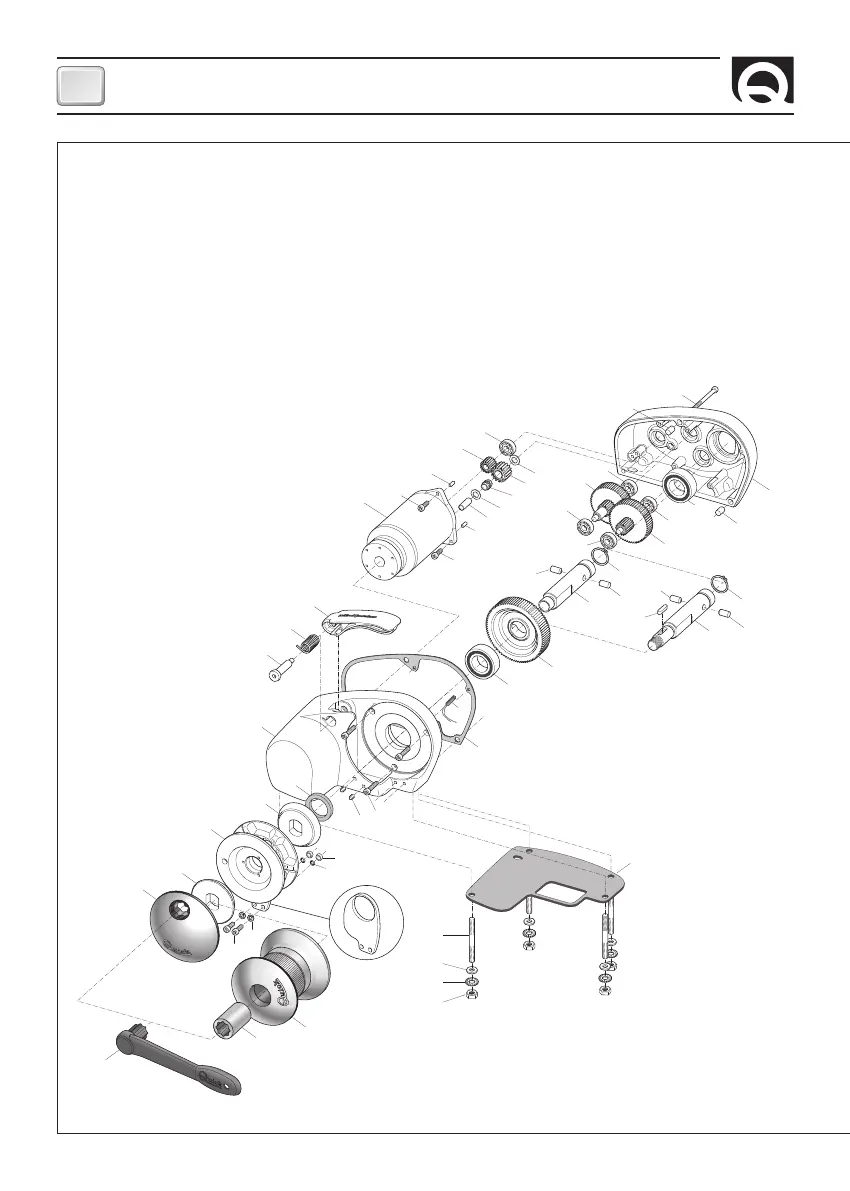

GP2 SERIES GENIUS 500/1200 - REV001A
MAINTENANCE
26
27
26
20
19
30
40
41
42
31
38
32
33
26
43
22
16
15
14
13
18
12
11
32
33
34
35
36
37
35
39
17
22
29
19
7
3
10
4
3
2
9
8
1
5
6
22
24
22
22
25
22
25
23
21
26
26
28
45
44
GP2 1200
GP2 1200 D
POS. DESCRIPTION
1 Windlass lever - Nylon
2 Gypsy cove
3 Windlass clutch cone
4A Gypsy 6 mm
4B Gypsy 7 mm - 1/4”
4C Gypsy 8 mm
4D Gypsy 5/16”
5 Screw
6 Grower
7 Rope/chain stripper
8 Bush
9 Drum
10 Oil seal
11 Screw
