QUICK GPSeries INSTALLATION AND USER’S MANUAL - REV000A
15

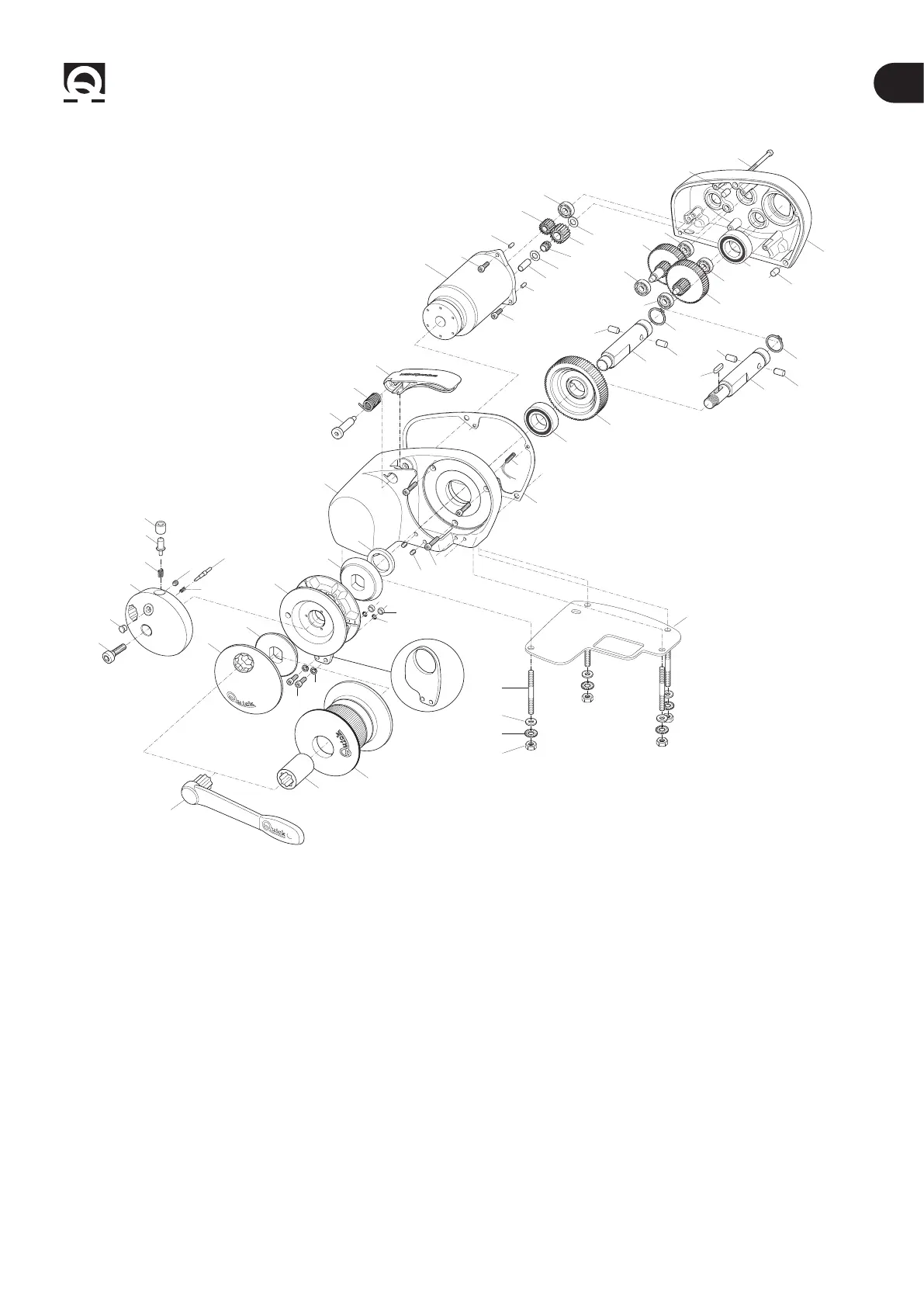

10 - List of components GP2 1200
No. NAME
1 WINDLASS LEVER - NYLON
2 GYPSY COVER
3 WINDLASS CLUTCH CONE
4 A GYPSY 6 MM
4B GYPSY 7 MM - 1/4”
4C GYPSY 8 MM
4D GYPSY 5/16”
5 SCREW
6 GROWER
7 CHAIN STRIPPER
8 BUSH
9 DRUM
10 OIL SEAL
11 SCREW
12 GRUB SCREW
13 WINDLASS COVER
14 PRESSURE LEVER SCREW
15 PRESSURE LEVER SPRING
16 PRESSURE LEVER
17 REED SENSOR
18 CASING GASKET
19 BEARING
20 OUTPUT SHAFT Z88 GEAR
21 SERIES SHAFT
22 SPINA 8X16
23 SERIES LONG SHAFT
24 KEY
25 EXTERNAL SNAP RING
26 BEARING
27 GEAR
28 GEAR
29 WINDLASS BASE
30 SCREW
31 MOTOR
32 SCREW
33 PIN
34 PIN
35 WASHER
36 ROLLER SHELL
37 GEAR
38 CRANKSHAFT GEAR
39 GASKET
40 STUDS
41 WASHER
42 SERRATED WASHER
43 NUT
44 SPACER
45 O-RING
46 GYPSY COVER FF
47 SPRING
48 BRAKE PIN
49 BRAKE PIN COVER
50 KNOB
51 SCREW
52 DOWEL
53 PIN
54 SPRING
26
27
26
20
19
30
40
41
42
31
38
32
33
26
43
22
16
15
14
13
18
12
11
32
33
34
35
36
37
35
39
17
22
29
19
7
3
10
4
46
50
51
53
54
52
48
47
49
3
2
9
8
1
5
6
22
24
22
22
25
22
25
23
21
26
26
28
45
44
