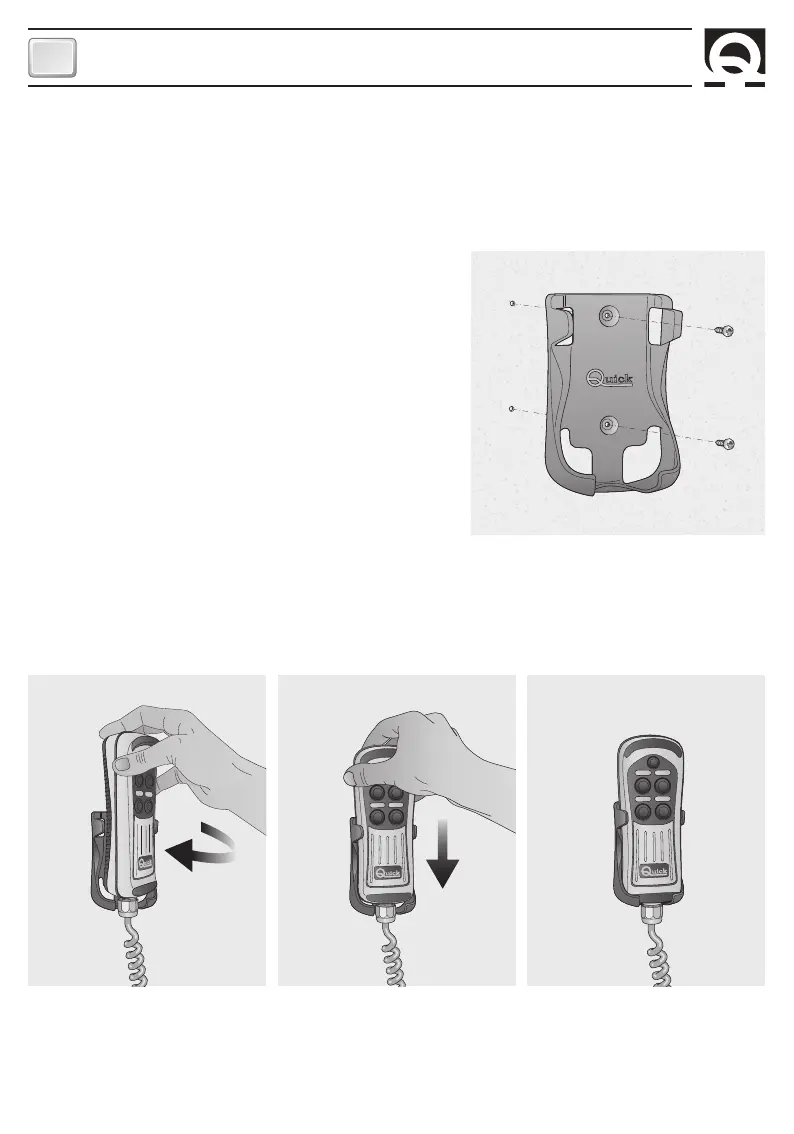

INSTALLING THE SUPPORT
The standard installation procedure is described below. Unfortunately we cannot describe a procedure applicable to all
the situations.
Adapt this procedure to satisfy your own individual requirements.
Find the spot most suitable for the support based on the following criteria:
• The support must be positioned so that it can easily be reached
by the operator.
• Choose a clean, smooth, flat location.
• Check that the back of the panel into which the screws of the
support will be inserted is free from
passing cables, tubes, etc.
• Take particular attention when screwing into the panels or parts
of the boat.
The screws must not weaken or cause the breakage of structural
elements of the boat.
• Place the support onto the chosen surface.
• Fix the support with the 2 screws provided.
INSERTING THE CONTROL PANEL INTO THE SUPPORT
To insert the control panel into the support, follow the instructions in the illustrated sequence:
Insert the control panel slightly rotated into the support and continue the rotation until the control panel is parallel with
the support.
Push the control panel down until it is fully inserted into the support.
