Quick RDS 1562 - Page 21

21
INSTALLATION
EN
RDS 1562 - IT EN - REV001A
CAN IN
CAN OUT
8
1
8
1
CAN IN
CAN OUT
18
18
CAN IN
CAN OUT
CAN IN
CAN OUT
8
8
1
1
8 1
8
1
CAN IN
CAN OUT

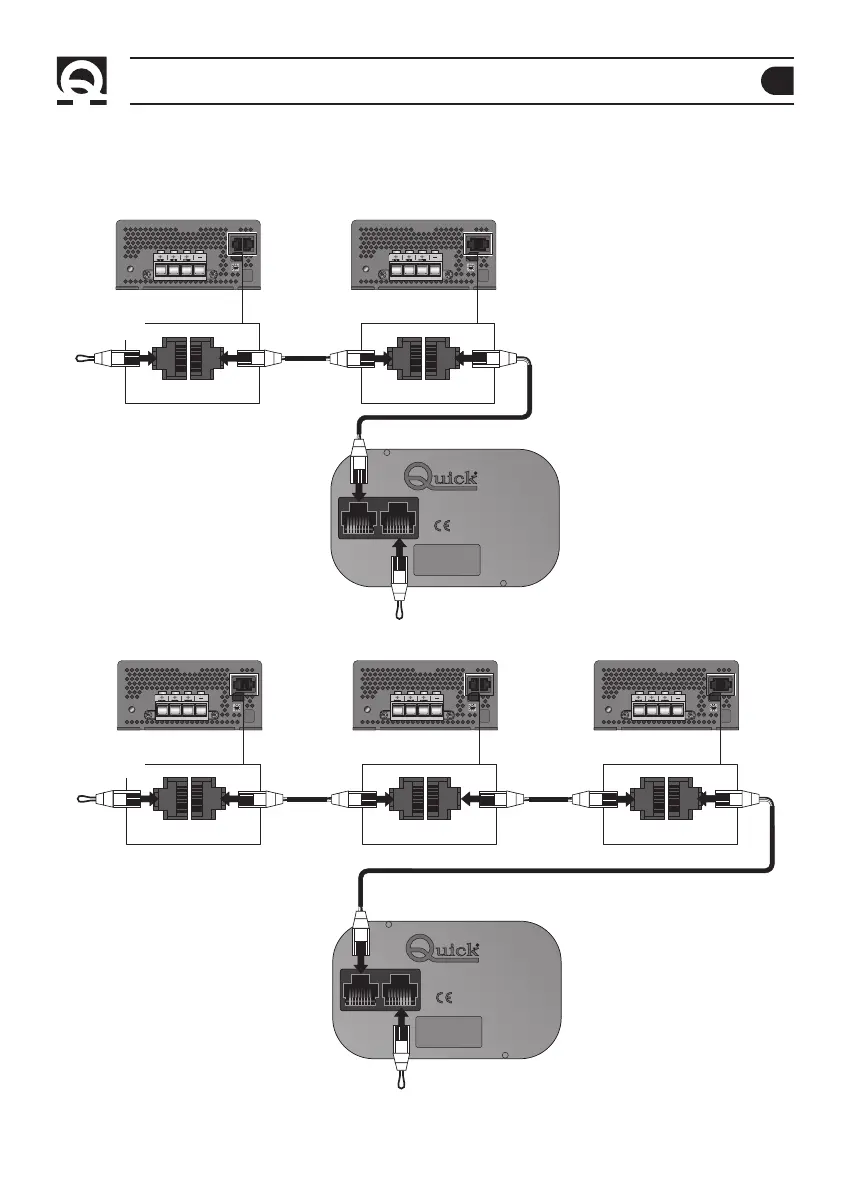

CONNECTION TO THE BATTERY CHARGER CAN BUS NETWORK IN PARALLEL
Here following is an example of network connection for battery chargers connected in parallel (current sharing mode):
SBC NRG+ HI POWER
SBC NRG+ HI POWER SBC NRG+ HI POWER SBC NRG+ HI POWER
SBC NRG+ HI POWER
RDS 1562
RDS 1562
TERMINATION
CONNECTOR
TERMINATION
CONNECTOR
TERMINATION
CONNECTOR
TERMINATION
CONNECTOR
