The Quick RDS 1562 is a remote display designed to monitor and set the parameters of SBC NRG+ Medium and High series Quick® battery chargers. It utilizes a CAN bus communication interface.

Function Description

The RDS 1562 serves as a remote control and monitoring unit for Quick battery chargers. It allows users to view various operational parameters and configure settings for the connected battery charger(s). The display provides real-time information and enables adjustments to optimize battery charging and management.

Important Technical Specifications

Supply Voltage: 9 to 32 Vdc
Maximum Absorption: 50 mA
Operating Temperature: -15 to +70°C

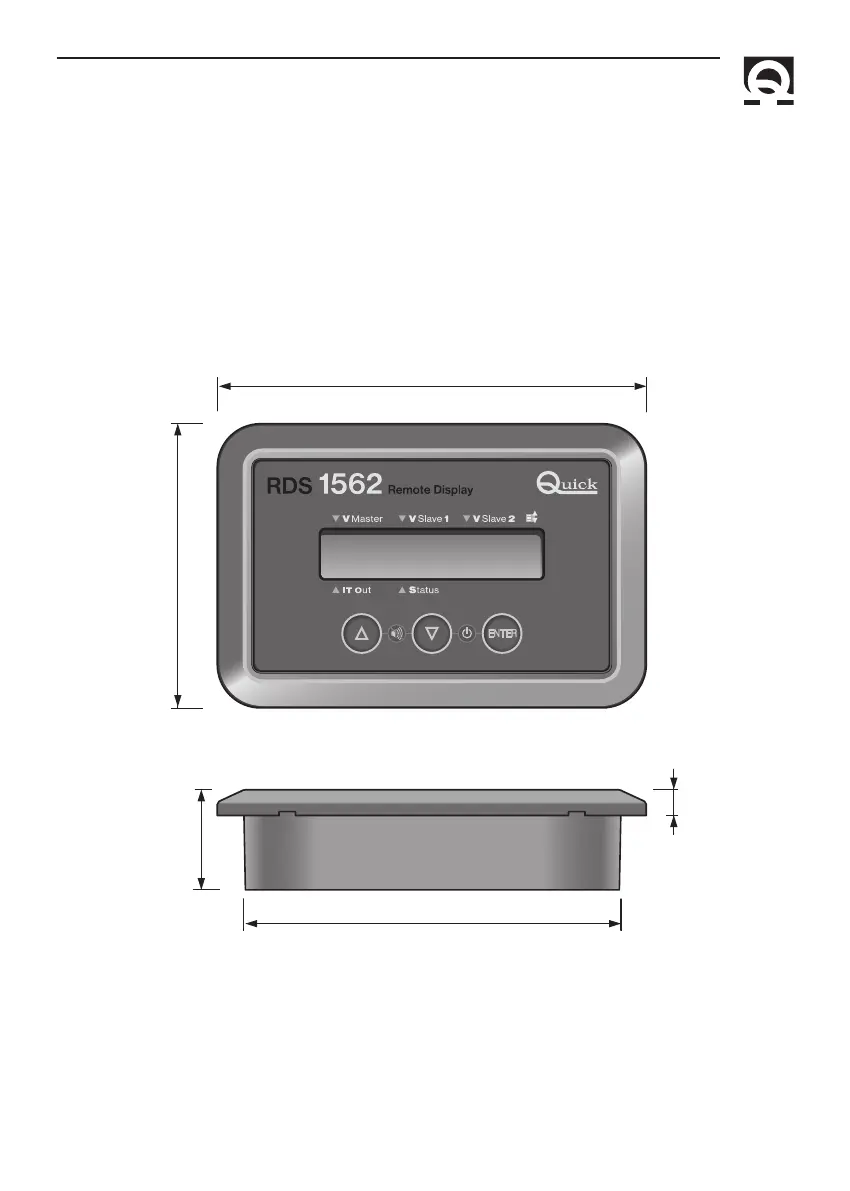

Dimensions (W x H x D): 116.5 x 77.2 x 27.2 mm (4 19/32 x 3 1/32 x 1 1/16 inches)
Weight: 105 g
Communication Interface: CAN bus with differential transceiver
EMC Standard: EN60945 - FCC TITLE 47 PART 15 SUBPART B CLASS B

Usage Features

The RDS 1562 offers a comprehensive set of features for monitoring and controlling battery chargers:

Alphanumeric LCD Display: Provides clear and detailed information.
Multi-language User Interface: Supports multiple languages for ease of use.
Three Battery Charger Output Voltages Display: Shows the voltage for up to three connected battery chargers.
Total Current Supplied by the Battery Charger Display: Indicates the combined current output.
Backlit Display with 6 Intensity Levels: Adjustable backlight for optimal visibility in various lighting conditions.
Adjustable Display Contrast to 5 Intensity Levels: Further enhances readability.
Audible Alarm: Provides acoustic alerts for warnings or errors.
User-settable Parameters: Allows customization of various charging parameters.
Display Powered via CAN Bus Cable: Simplifies wiring and installation.
CAN Bus Interface for Data Transfer: Ensures reliable communication with the battery charger.
Easy Installation: Designed for straightforward setup.
Wide Range of Ambient Temperatures: Operates effectively in diverse environmental conditions.
Reverse Polarity Protection: Safeguards the device from incorrect wiring.

The instrument is operated via an alphanumeric LCD display and three buttons: UP, DOWN, and ENTER. These buttons allow users to navigate the system menu, change parameters, and confirm selections. Simultaneously pressing UP and DOWN buttons silences the audible alarm, triggered by warning messages or manual reset errors.

The display shows the current version of the software upon startup, followed by battery charger information after 2 seconds. Key display areas include:

Master/Slave Voltage: Shows the voltage of the master and slave battery chargers.
Total Current: Displays the overall current delivered by the battery charger.
Status: Indicates the system's charging status, warnings, or problems with automatic reset.

Programming Features:

The RDS 1562 allows for extensive programming of the battery charger parameters:

Battery Type: Selects the type of batteries being charged (Open liquid, Sealed liquid, GEL, AGM, AGM Spiral, Li-Ion).
CAN Group: Sets the CAN group of the battery charger (Group A, B, C).
CAN Priority: Assigns priority to the battery charger (Priority 1, 2, 3).
Monitor Mode: Enables or disables the monitoring mode.
Float Threshold: Sets the float threshold.
Max Current: Allows setting the maximum output current.
Silent Mode: Enables or disables silent mode.
Reset: Resets the battery charger.
Config RDS: Configures the parameters of the RDS 1562 remote panel.
Exit: Exits the menu.

Troubleshooting Features:

The manual provides detailed troubleshooting information for various problems, categorized by automatic reset problems, warning messages, and status messages.

Automatic Reset Problems:

Overtemperat: Ambient temperature exceeds maximum threshold.
Fan Blocked: Cooling fans blocked or external causes.
AC Low: Mains voltage is lower than 207 Vac (SBC 1450 NRG+ HR, SBC 1950 NRG+).
AC Fail: Mains voltage is lower than 161 Vac (SBC 1450 NRG+ HR, SBC 1950 NRG+).
Cold Battery: Battery temperature is below -15°C.
Hot Battery: Battery temperature is higher than +50°C.
Sensor Fault: Failure of one or two battery charger's internal temperature sensors.
CAN Error: Detected communication errors on the CAN bus.

Warning Messages:

Batt M lo/hi: Master output terminal voltage is lower/higher than specified.
Batt 1 lo/hi: Slave 1 output terminal voltage is lower/higher than specified.
Batt 2 lo/hi: Slave 2 output terminal voltage is lower/higher than specified.

Status Messages:

Bulk: Battery charger is in BULK phase.
Absorption: Battery charger is in ABSORPTION phase.
Float: Battery charger is in FLOAT phase.
Derating: Battery charger performs a limitation on the maximum output current due to a thermal problem.
Monitor: Battery charger is in monitor mode.
Limit Power: Manual mode of maximum output current reduction has been activated.
Silent Mode: Silent mode for cooling fans has been activated.
Sharing On: Battery charger is carrying out the current sharing with 2 or 3 battery chargers connected in parallel.
Charge Comp: Battery charger is carrying out the batteries' charge compensation according to their temperature.

Managing Instrument Problems:

FLASH Memory Checksum Error: Indicates a problem with the flash memory checksum.
Failure Connection with the Battery Charger: Signals issues with the CAN communication line or incorrect termination connector.
Battery Charger Model Not Recognized: The instrument does not recognize the connected battery charger model.

Maintenance Features

The remote display does not require specific maintenance. To ensure optimal performance, it is recommended to check the cables and electrical connections once a year. This simple check helps maintain the integrity of the communication and power supply, preventing potential issues.
