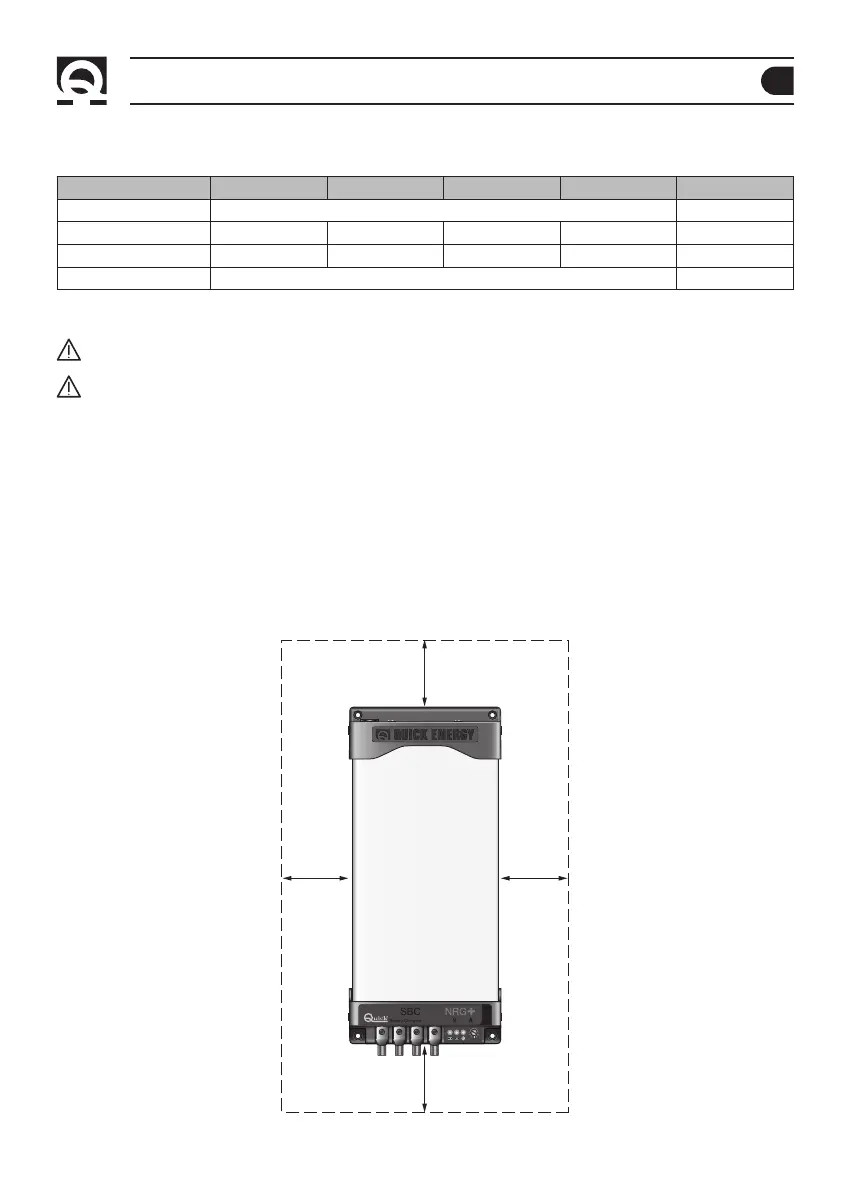

INSTALLATION SITE
Install the battery charger as close as possible to the batteries in a dry and airy spot, to allow the correct operation of
the device at full power.
The battery charger can be installed on a horizontal surface or vertical wall paying attention that the output connector
faces downwards.
The battery charger must be fixed to the support surface with screws strong enough to support its weight, paying atten-
tion that they do not weaken or cause cracks to the boat structure.
V
ertical installation is recommended since the natural convection of the heat will favour the cooling of the device.
The perimeter of the battery charger (excluding the support base) must be kept at a distance from walls or objects by a
minimum of 5 cm.
WARNING:
the battery charger must be used only with re-chargeable lead/liquid electrolytic batteries (open or
sealed), Gel, AGM, Optima
®
.
WARNING:
the battery charger can not be used to recharge non rechargeable batteries.
NECESSARY EQUIPMENT FOR INSTALLATION
Use the batteries and cables on the output terminals as specified in the following table:
MODEL SBC 140 NRG+ FR SBC 250 NRG+ FR SBC 300 NRG+ FR SBC 500 NRG+ FR SBC 365 NRG+ FR
Battery voltage
12 V 24 V
Battery capacity
55 ÷ 120 Ah 110 ÷ 250 Ah 140 ÷ 300 Ah 180 ÷ 400 Ah 65 ÷ 150 Ah
Minimum output cable size
6 mm
2
10 mm
2
10 mm
2
16 mm
2
6 mm
2
Number of battery cells
6 12
The cables connected to the output terminals have a maximum length of 4 metres.
5 cm
5 cm
5 cm
5 cm
AGM
OPT
OL
GEL
SL
