The One-arm Wheel Lock
The one arm wheel lock is underneath the seat sling and
is operated by pulling the brake lever, which is located on
the left or right side, towards the rear, in the direction of
the tyre. For the brakes to work properly, this must be
pulled until it reaches the stop, (Fig.4.5)
Adjustment
To adjust the brake, loose the screws (1) and mount the
wheel lock where it will work in a proper way (Fig.4.6).
CAUTION!
Incorrect mounting of the one arm wheel lock can lead to
serious injury of the user and other people.

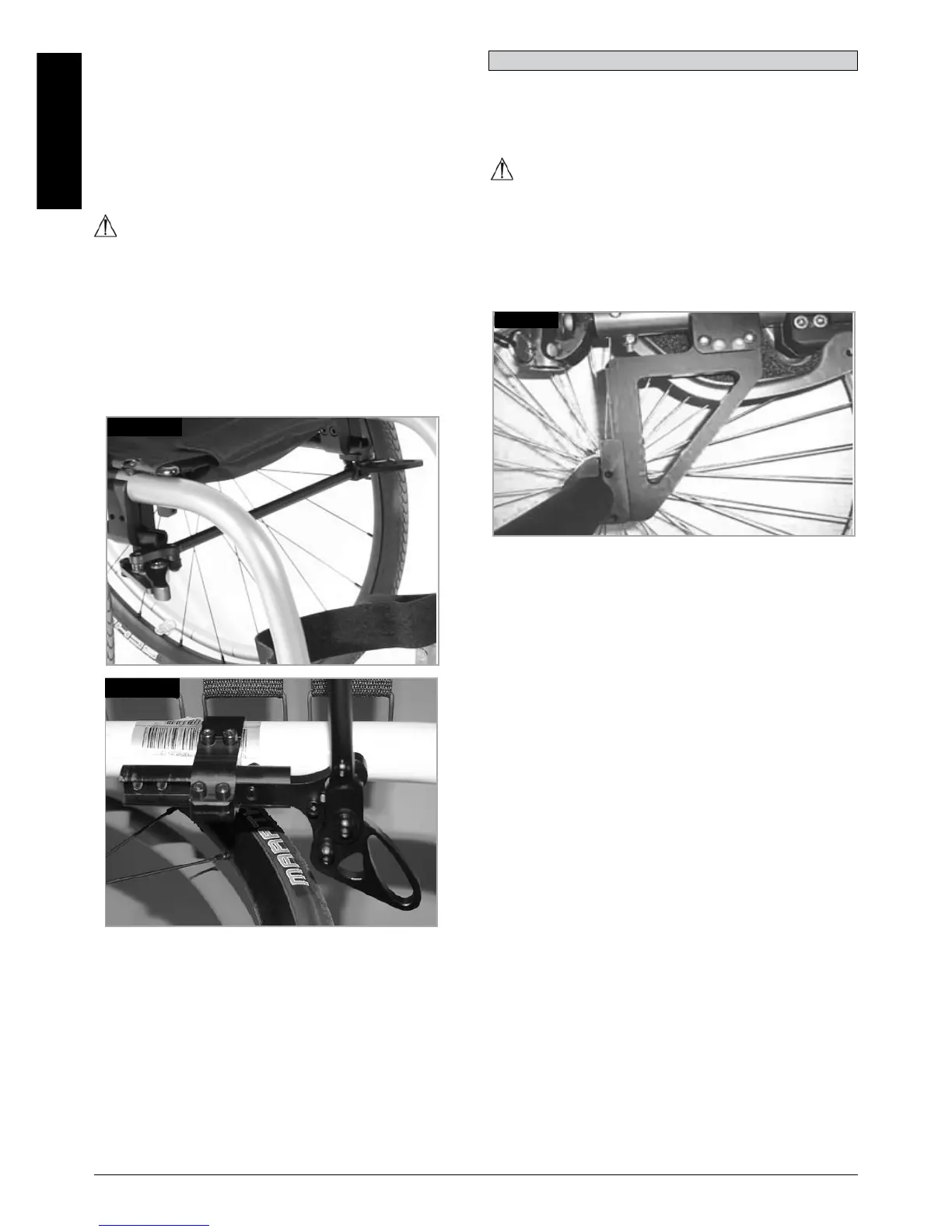

Fig. 4.5
Fig. 4.6
Hand-Bike-Axle
It is necessary to adjust the hand-bike axle to bias the
centre of gravity rearwards. This allows safe use of a
hand-bike accessory, (Fig.4.7).
DANGER!
Using a hand-bike without the hand-bike axle makes the
wheelchair unstable and can lead to serious injury of the
user and other people.
Hand-Bike Axle Adjustment
Fig. 4.7
