Quickie Pulse 6 BC - Securement Points; Securing the Wheelchair; Securing the Occupant; Wheelchair - Anchored Belts

119832 Rev. B
14
ENGLISH

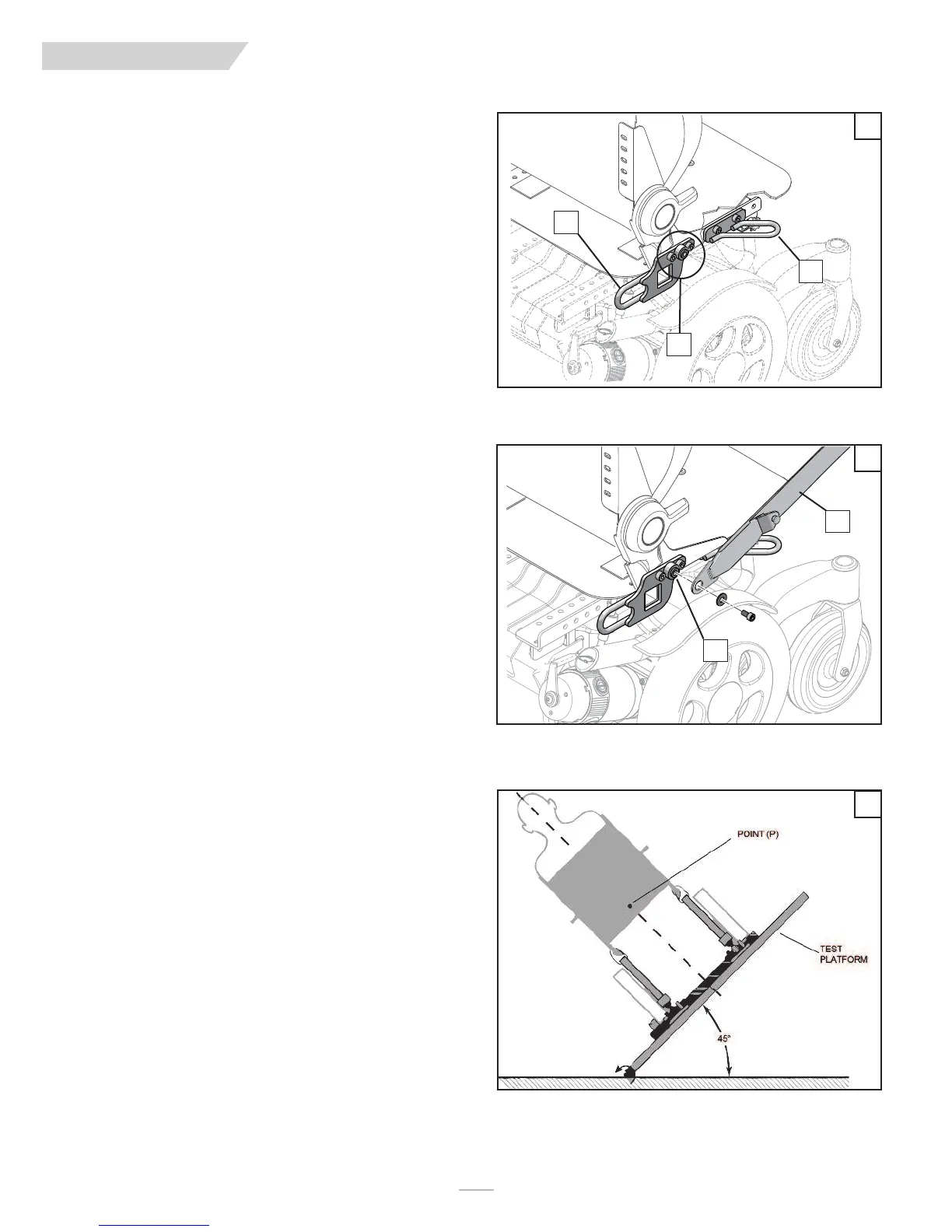

SECUREMENT POINTS
Rear Securement points(A), Front Securement points(B), Pelvic
Belt Securement point(C)
SECURING THE WHEELCHAIR
This wheelchair is to be used only with Wheelchair Tie-down and
Occupant Restraint Systems (WTORS) that have been installed in
accordance with the manufacturer's instructions and SAE J2249.
NOTE: A copy of SAE J2249 Wheelchair Tie-down and Occupant
Restraint Systems (WTORS) for use in Motor Vehicles can be
obtained from:
SAE International,
400 Commonwealth Drive,
Warrendale, PA 15096-0001
(877) 606-7232 or (724) 776-4970
Attach WTORS to the tie-down brackets in accordance with the
manufacturers instructions and SAE J2249.
SECURING THE OCCUPANT
WHEELCHAIR-ANCHORED BELTS
(Figure 3,4)
WARNING
Only use a pelvic belt system that meets the requirements of
ANSI/RESNA W/C 19 and SAE J2249 and has been specified to
work in conjunction with the Quickie Pulse 6 Transit System.
1. Install the pelvic belt (A) onto the pelvic belt securement
point anchored to the seating frame of the Quickie Pulse 5
or 6. Using a 10mm Allen head wrench and torque to144
in-lbs securing the pelvic belt to the mounting anchor (B).
2. Repeat Step 1 for the opposite side.
VEHICLE-ANCHORED BELTS
(Figure 5)
This wheelchair has an overall rating of “A” with regard to accom-
modating the use and fit of vehicle-anchored belts. This rating is
scored as follows:
A = Excellent
B = Good
C = Fair
D = Poor
The test for Lateral Stability Displacement for Point (P) is shown in
the figure below. The average test result for point (P) is:
• Quickie Pulse 6 - 0.547-inches (13.9 mm).
• Quickie Pulse 5 - 0.547-inches (13.9 mm).
NOTE: Figure 5 showsRear view of the wheelchair and human surro-
gate secured on test platform and tilted to 45°.
C
VII.
A
B
D
E
3
4
5
