QUICKIE PULSE
I. CAPTAIN’S SEAT
Manual Recline/Folding Seatback adjustment

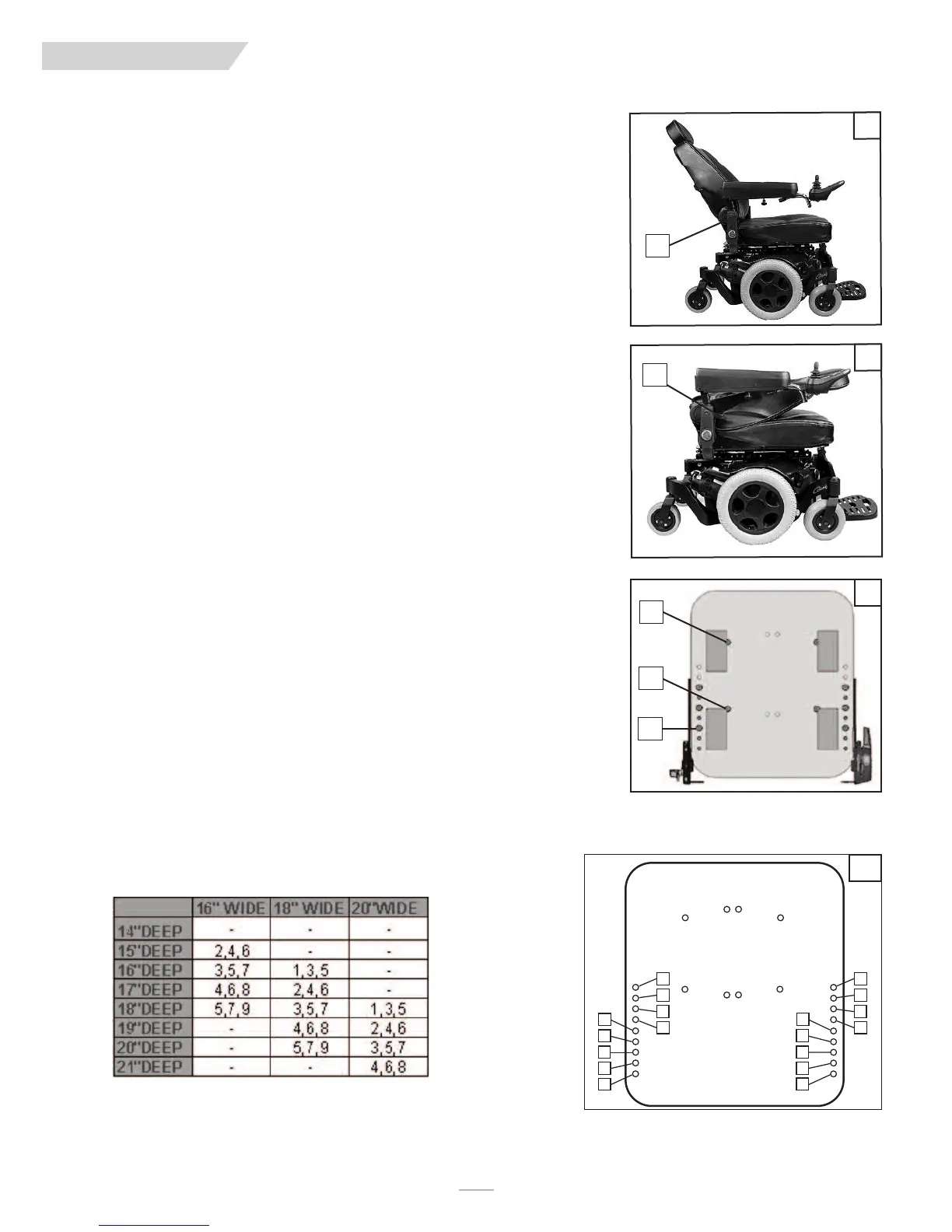

To adjust the recline angle(Figure 22,23)
1. Reclining Position
a. To adjust, pull up on the seat back release lever (A) located on the right side of the
backrest.
b. Lean forward or backwards to your desired position..
c. Release the lever (A) Wiggle the backrest to make sure it locks in place
2. To Fold Seat back (unoccupied)
a. Pull up on the seat/back release lever (A) located on the right side of the backrest.
b. Backrest should spring forward by itself into the folded position, flat against the seat
cushion.
c. Release the lever (A).
d. To unfold the back, pull up on the seat/back release lever (A) and adjust the back to an
upright position.
Seat Depth Adjustment (Figure 24)
1. Adjustment with 1” increments
a. Using a 5mm Hex Key, remove the M8 flat head screws (B) (3) on each side
b. Using a 5mm Hex Key remove the M8 Flat Head screws (C) (1) on each side
c. Using a 5mm Hex Key loosen the M8 Flat Head screws (D) (1) on each side
d. Holding the backrest on each side, slide it front or back to achieve desired position.
Seat Depth Mounting Positions(Figure 24,25 and Table)
Using the Seat Depth Mounting Positions table, and the hole number callouts
(Figure 25) use the correct hole positions to achieve depth and width.
VIII.
2 2
2 3
24
1
2
4
3
5
6
8
7
9
5
6
8
7
9
1
2
4
3
25
Table Seat Depth Mounting Positions
A
A
B
C
D
