Quickie Direct Actuator Control Box:
The direct actuator switches can operate any factory
approved actuator. Operation is dependent on what
options are fitted to your wheelchair. To operate the
legrest, seat tilt, seat lift or backrest recline;
• Push the toggle switch for the relevant actuator
forward until you reach the required angle/height.
• Release the toggle switch and the actuator will stop.
When the actuator reaches its maximum/minimum position
do not hold the toggle switch in its operating position as
this could damage the actuator. (Fig. 5.60)
R-net Control
Please refer to your R-net Owner’s Manual for
details.
Fig. 5.60
5.9.7 Powered centre mount leg rest, (PCML).
WARNING!
There is an option on the programme of the leg rest that
allows you to send the footrest to the floor to allow for
easier mounting and dismounting for the user. Be aware
that when powered the area around and underneath
the footplate needs to be clear of all personal items and
bodily extremities to prevent injury or damage to property.
CAUTION!
Once the leg rest is fully lifted or in its lowest position do
not hold the joystick in its operating position as this could
damage the actuator.

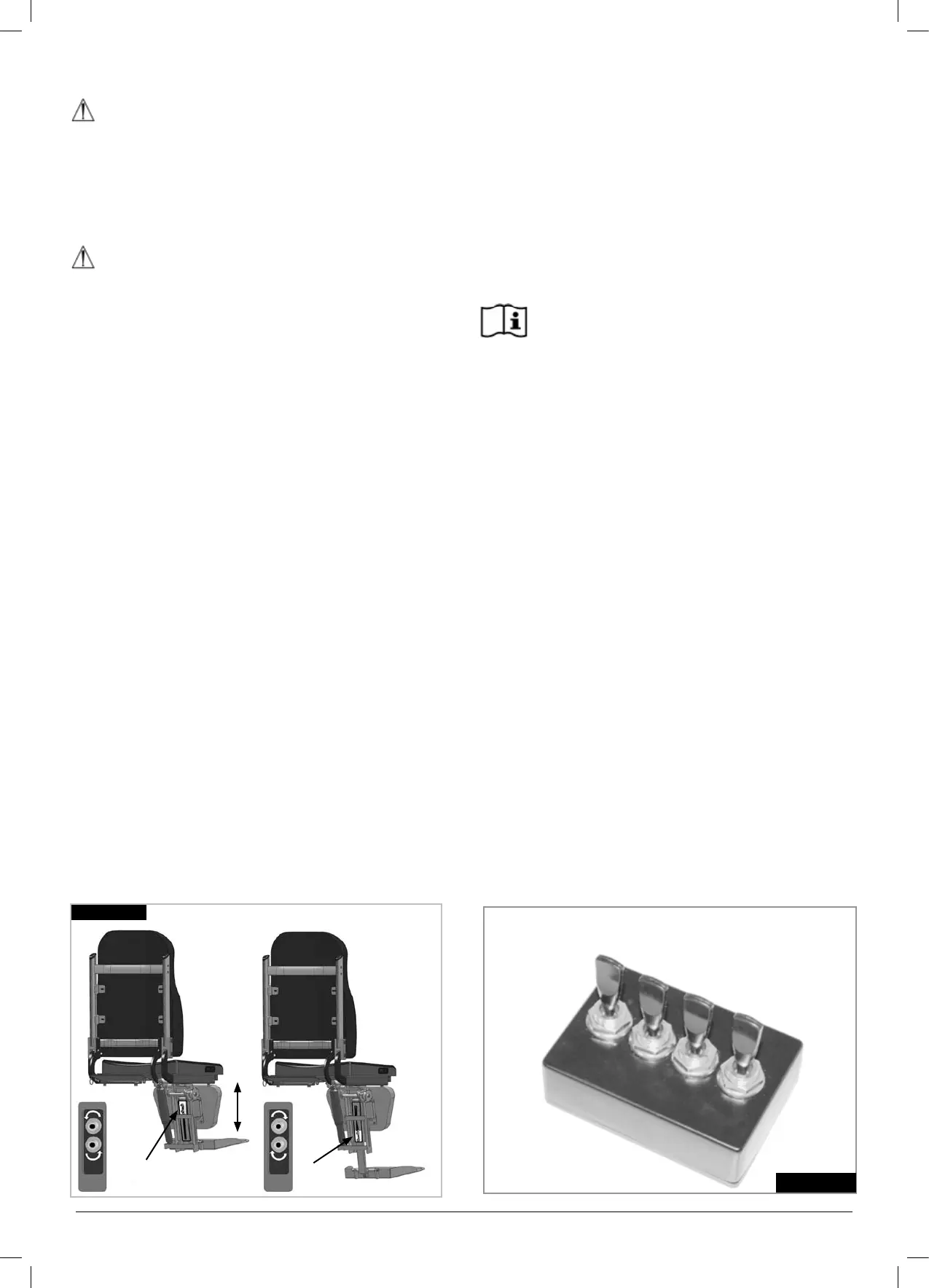

To Adjust the PCML leg rest Length, (Fig.5.59).
Use a 5.0mm Allen Key to loosen the 2 studs (A).•
Slide the leg rest to the desired length, (B).•
Tighten the 2 studs, (A).•
NOTE : For better access either raise or tilt the seat using
the actuator options, or tilt the seat back as per the battery
access instructions in Section 10 of this manual.
Fig.5.59
A
A
B
