6.17 Headrest
To fit the Standard headrest, fit the location bracket to
the push handles, using the screws and nuts supplied,
ensuring that they are fully tightened.
To fit the Rehab headrest, fit the location bracket to the
backrest bracket, using the screws and nuts supplied,
ensuring that they are fully tightened.
Adjusting the Headrest (All).
The headrest height is changed by loosening the
adjustment knob and sliding the inner vertical tube to the
desired position and tightening the knob. The headrest to
seat depth is adjusted by loosening the 6mm Allen screws
and moving the hinge to the desired position and then
tightening the screws securely. To adjust the headrest
angle, loosen the screws at the headrest upholstery,
position the headrest as required and tighten the screws

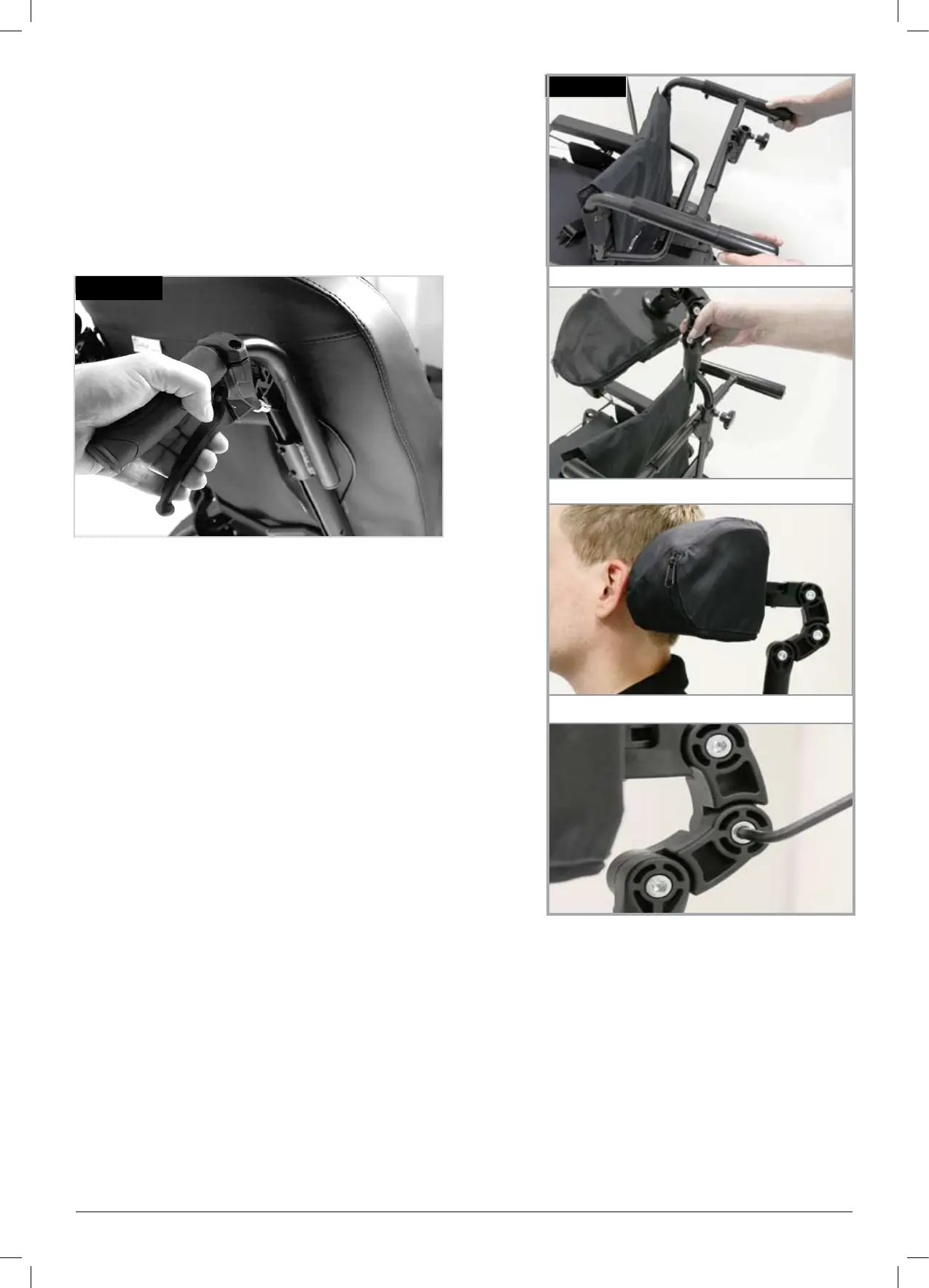

securely. (Fig.6.30)
Fig. 6.30
6.15 Manual adjustable backrest (manual recline
Rehab Seat)
For depth adjustment see section 6.2.
To recline the backrest angle, pull the lever at the top of
the backrest which operates the gas strut. Hold the lever
and adjust the back angle required. If you release the
lever, the angle will stay in the adjusted position. If you
want to adjust the backrest into the upright position, you
might need to support the upward motion (Fig. 6.29.1).
Fig.6 .29.1
6.16 JAY backrests
The standard backrest assembly will allow the fitting of a
JAY backrest, which is available as an optional extra.
