Rotate the axle bracket (Standard)

Using the quick-release axles, take the wheels out of the

angle adapter.

Undo the screws (1) and remove the axle brackets (2) on

both sides of the wheelchair. Rotate the axle bracket by

180° and refit it into the axle stem (3) on the opposite

side. Please note that the axle bracket has an

asymmetrical shape. The adjustment offers changes in

the centre of gravity in 2 cm steps. Use the given torque

(Fig. 26/27).

In addition, the standard adapter offers a second position

for fitting the angle adapter. When the wheelchair is

delivered, this position is covered with a sleeve. To use

this position, please undo the two screws (1). Then swap

the axle adapter (4) and the sleeve (5) and re-tighten both

Allen screws (1), (Fig. 26/27). Please note that the key

surfaces on the axle adapter should always point inwards

and select the wheelbase as desired (see width

adjustment of the rear wheelbase). Use the given torque.

For centre of gravity adjustment, please see the technical

specifications section at the end of these Directions for

use.

Rotate the axle bracket (lightweight)

Using the quick-release axles, take the wheels out of the

angle adapter.

Undo the screw (1) and remove the axle brackets (2) on

both sides of the wheelchair. Rotate the axle bracket by

180° and refit it into the axle stem (3) on the opposite

side. Please note that the axle bracket has an

asymmetrical shape. The nut surface (4) must always

face outwards. The adjustment offers changes in the

centre of gravity in 2 cm steps. Always use the given

torque (Fig. 28/29).

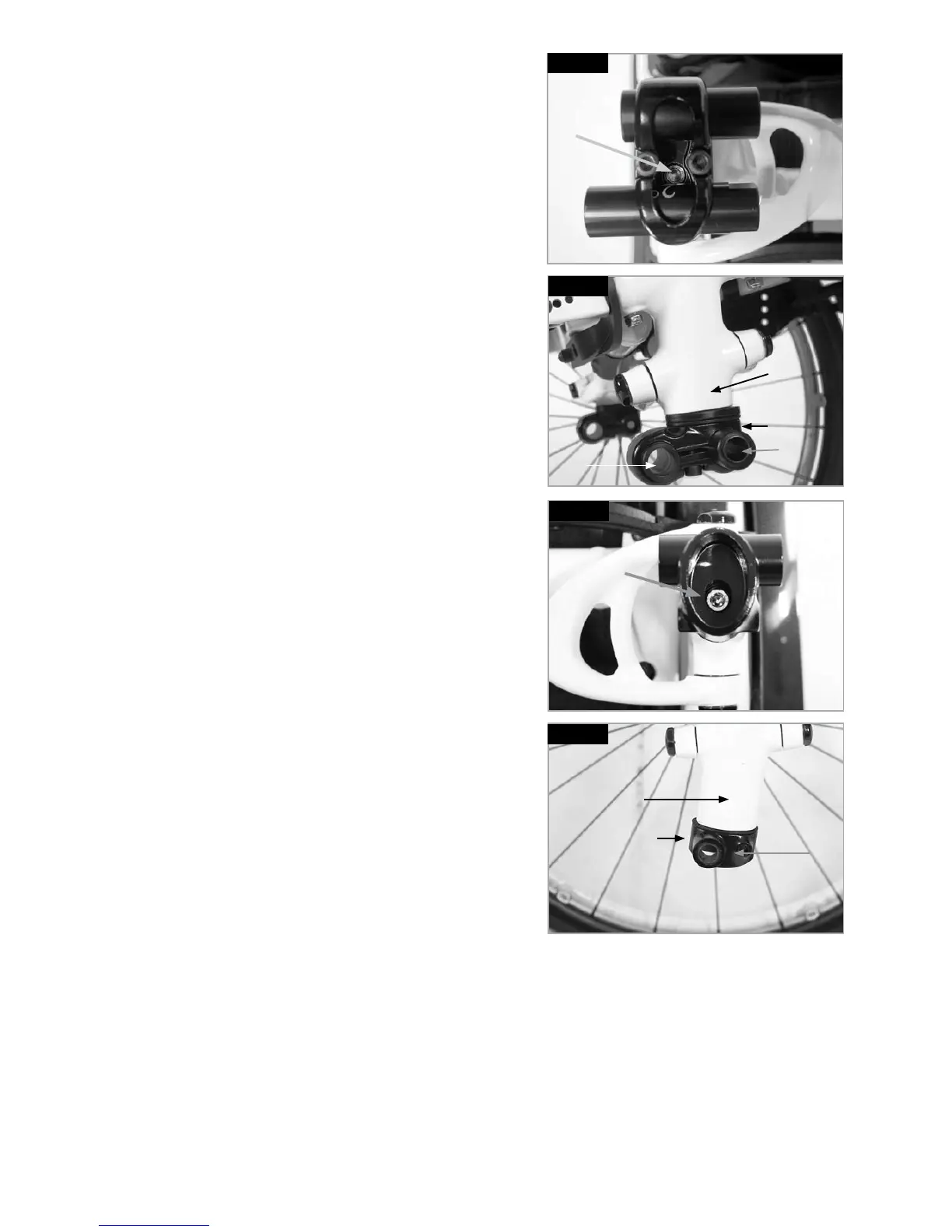

Fig. 26

Fig. 27

Fig. 28

Fig. 29
