2
1
3
4
5

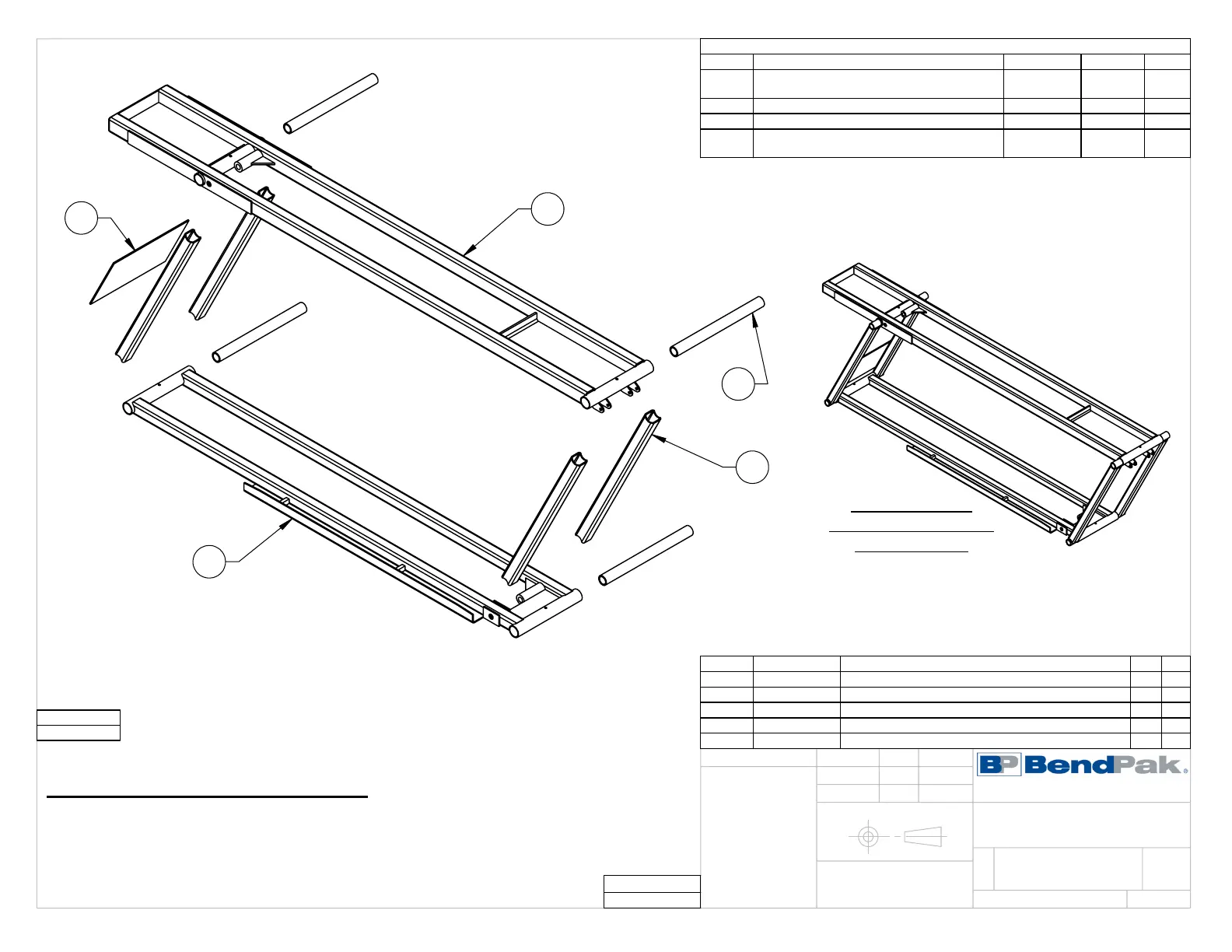

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5215920
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5620644
5000TL BOTTOM FRAME SUBWELDMENT, L.H.
1
D
2 5620653
5000TL TOP FRAME SUBWELDMENT
1
D
3 5766360
5000TL SCISSOR ARM TUBE
4
D
4 5746668
5000TL ARM HINGE AXLE
4
F
5 5735534
5000TL LOWER REAR GUSSET
1
F
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
C
UPDATED TITLE TO REFLECT MARKETING,
UPDATED BOM REVISION
11/17/2020
CA
01237
D
UPDATED BOM REVISION
01/20/2021
TM
01265
OBSO
REPLACED WITH 5601758
11/10/2021
TM
01362
E
UNOBSOLETE FOR PRODUCTION,
UPDATED BOM REVISIONS
03/11/2022
CA
01402
WHERE USED
5000TL
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
E
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
TM
5601479
5000TL FRAME
WELDMENT, L.H.
04/14/2020
DO NOT SCALE DRAWING
1:10
SCALE:
THIRD ANGLE PROJECTION
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
BREAK AND DEBURR ALL SHARP EDGES 0.3mm
2.
REMOVE ALL WELD SPLATTER
3.
DIMENSIONS SHOWN ARE AFTER PAINTING
4.
PAINT BLACK (RAL-9017) 20% GLOSS
5.
5766360 MUST BE FREE TO ROTATE RELATIVE TO
6.
5620644 AND 5620653
NOTE: UNLESS OTHERWISE SPECIFIED.
