3
7
1
8
2
5
10
6
9
4

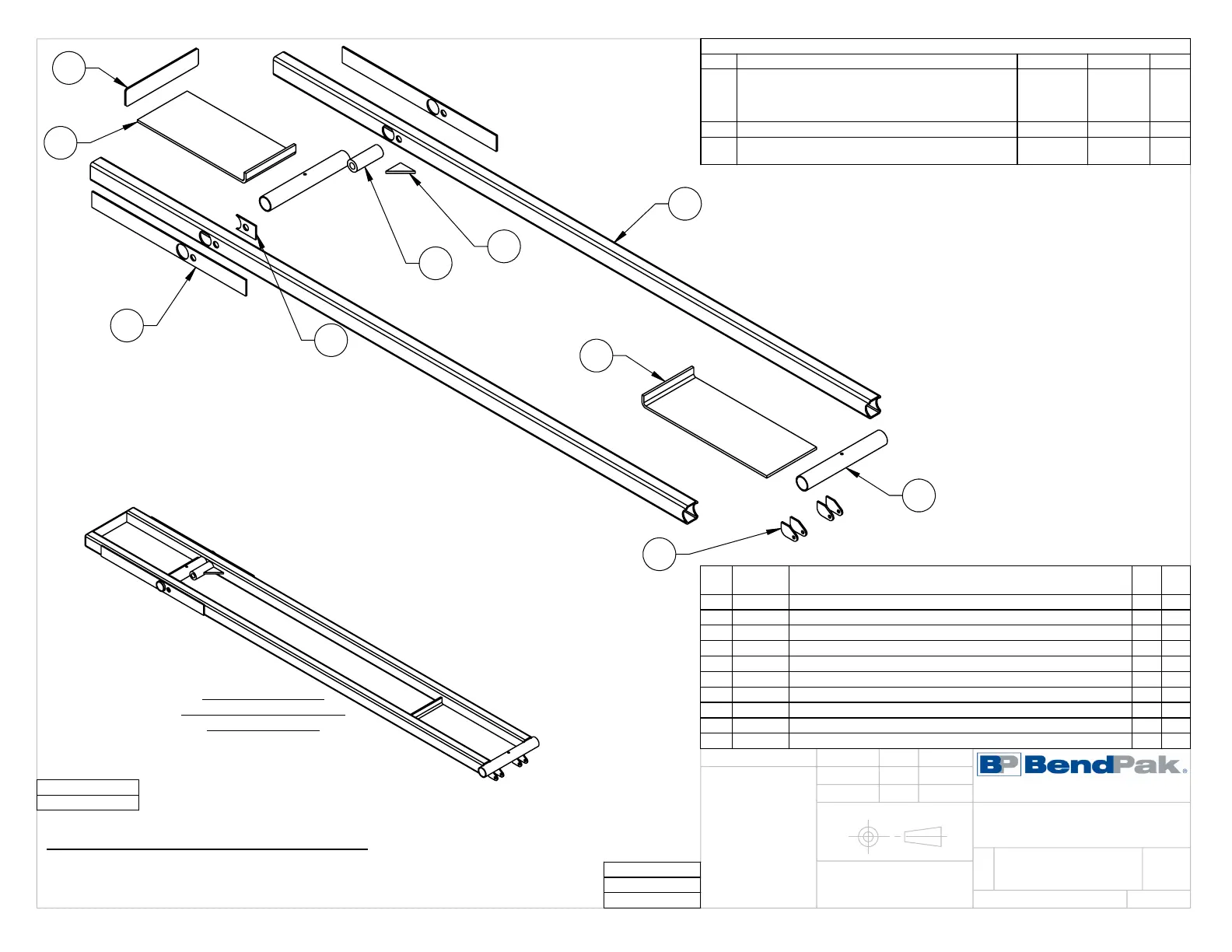

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5601479
5601480
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5766365
5000TL TOP TUBE
2
C
2 5746669
5000TL ARM HINGE TUBE
2
H
3 5746302
QUICKJACK CYLINDER SPACER
1
D
4 5736831
QUICKJACK WHEEL MOUNTING PLATE
4
F
5 5737153
5000TL RUBBER BLOCK TRAY EXTENSION
1
C
6 5735621
5000TL RUBBER BLOCK TRAY EXTENSION CLOSEOUT
1
E
7 5736542
QUICKJACK CYLINDER SPACER GUSSET
1
E
8 5736886
5000TL RUBBER BLOCK TRAY
1
F
9 5781348
5000TL CYLINDER PLATE, SHORT
1
B
10 5781346
5000TL CYLINDER PLATE, LONG
2
C
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
C
C-001
FLARE-BEVEL WELD WAS FULL ROUND NOW
180°, UPDATED TITLE TO REFLECT MARKETING,
UPDATED BOM REVISIONS
WAS 128.0 NOW 128 (pg2)
12/01/2020
05/25/2021
CA
OR
01237
01304
OBSO
REPLACED WITH 5620758
11/10/2021
TM
01362
D
UNOBSOLETE FOR PRODUCTION, UPDATED
BOM REVISION
03/11/2022
CA
01402
WHERE USED
5000TL
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
TM
5620653
5000TL TOP FRAME
SUBWELDMENT
04/14/2020
DO NOT SCALE DRAWING
1:10
SCALE:
THIRD ANGLE PROJECTION
OR
03/16/2022
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
BREAK AND DEBURR ALL SHARP EDGES 0.3mm
2.
REMOVE ALL WELD SPLATTER
3.
NOTE: UNLESS OTHERWISE SPECIFIED.
