DIMENSIONS ARE IN MM
☺
1
4
8
6
11
3
5
9
10
2
7

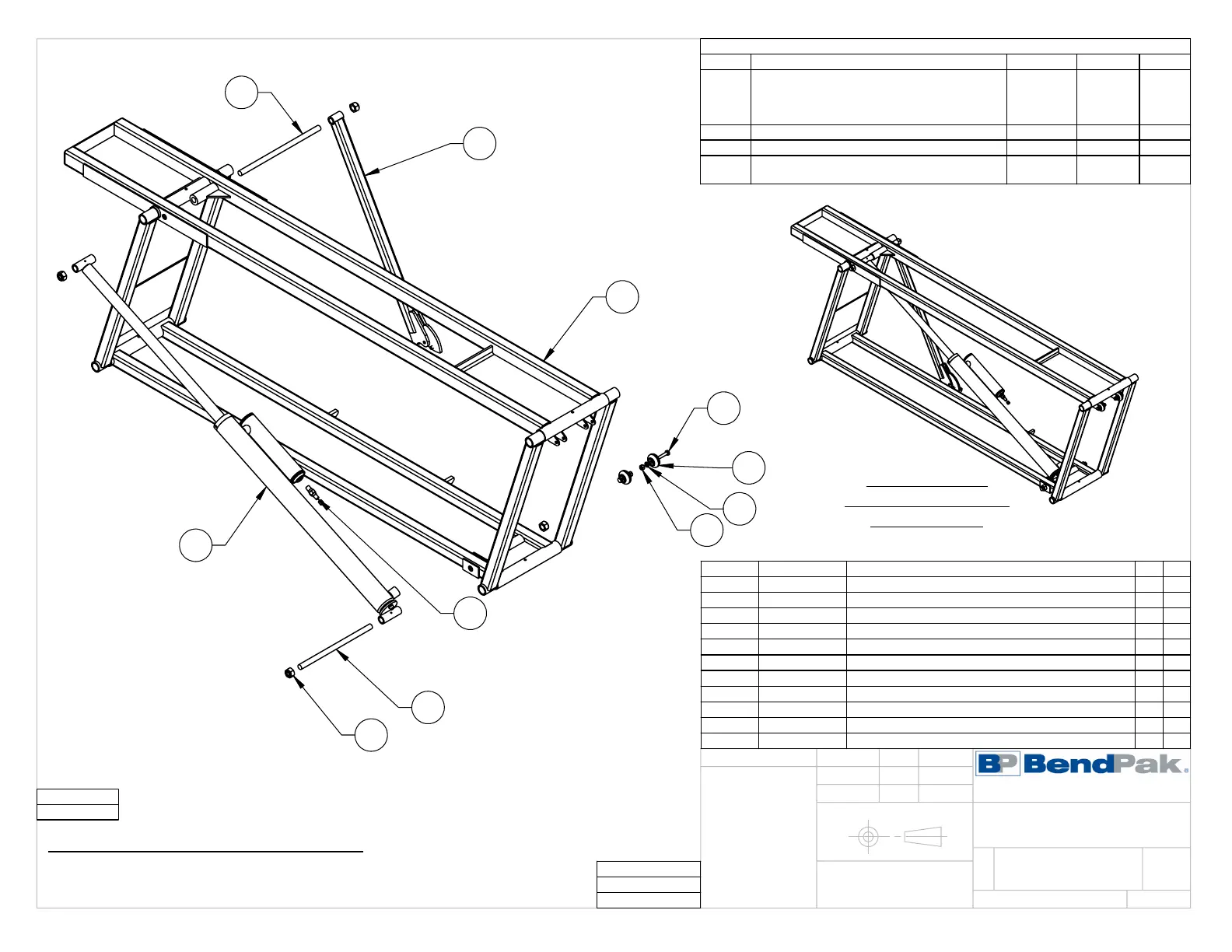

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5215928
5260612
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5601480
5000TL FRAME WELDMENT, R.H.
1
E
2 5502042
OFFSET CYLINDER ASSEMBLY Ø1.5 x 18.559in
1
C
3 5215918
QUICKJACK SAFETY BAR ASSEMBLY
1
B
4 5746696
DOUBLE THREADED ROD M12 x 1.75 x 227
1
E
5 5746670
DOUBLE THREADED ROD M12 x 1.75 x 254
1
G
6 5716192
QUICKJACK POLYURETHANE WHEEL
2
E
7 5535012
NUT M12 x 1.75 NL
4
-
8 5550055
FTG NPL -02 STM x -02 NPT
1
-
9 5545026
WASHER M6 x Ø12 SL
2
-
10 5535357
NUT M6 x 1.0 NL
2
-
11 5530027
HHB M6 x 1.0 x 35
2
-
WHERE USED
5000TL
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
C
TOP LOCK WAS 518.7 NOW 512.8, LOWEST
LOCK WAS 367.1 NOW 361.5, REMOVED
MIDDLE LOCK, UPDATED TITLE TO REFLECT
MARKETING, UPDATED BOM REVISIONS
12/16/2020
CA
01237
D
UPDATED BOM REVISION
01/25/2021
TM
01265
OBSO
REPLACED WITH 5216094
11/10/2021
TM
01362
E
UNOBSOLETE FOR PRODUCTION, UPDATED
BOM REVISION
03/11/2022
CA
01402
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
E
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5215922
5000TL FRAME
ASSEMBLY, R.H.
04/14/2020
DO NOT SCALE DRAWING
1:10
SCALE:
THIRD ANGLE PROJECTION
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
2.
ASSEMBLE ITEMS AS SHOWN
3.
