4
3
1
5
6
7
2

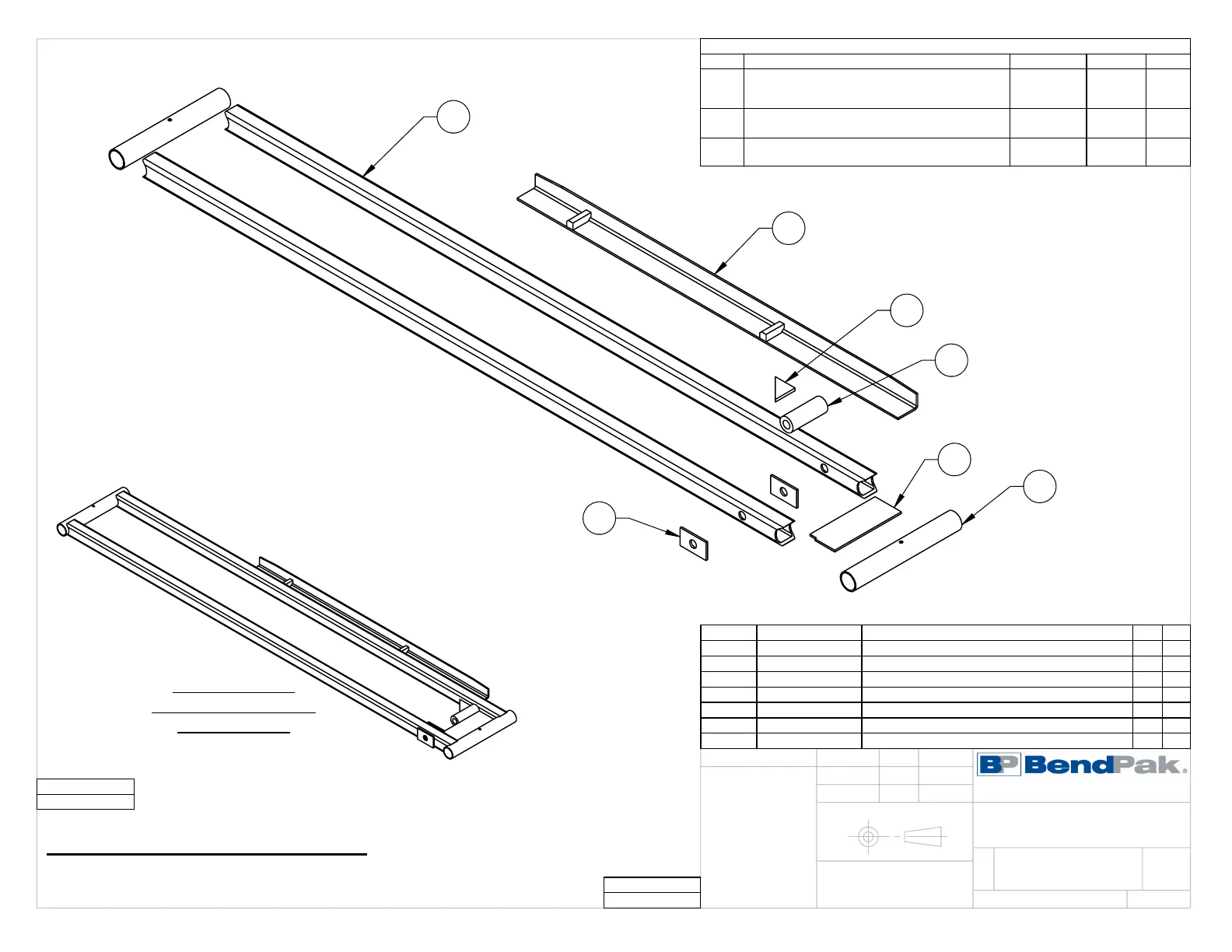

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5601480
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5766364
5000TL BOTTOM TUBE
2
C
2 5746669
5000TL ARM HINGE TUBE
2
H
3 5746302
QUICKJACK CYLINDER SPACER
1
D
4 5736542
QUICKJACK CYLINDER SPACER GUSSET
1
E
5 5781509
5000TL CYLINDER PLATE
2
D
6 5620650
5000TL SAFETY LADDER SUBWELDMENT, R.H.
1
C
7 5737222
5000TL BOTTOM REAR GUSSET
1
B
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
B
ADDED 5737222, WAS 40.0 NOW 78.1, WAS
497.3 NOW 459.2, WAS 275.0 NOW 449.6,
UPDATED BOM REVISION
10/26/2020
TM
01222
C
UPDATED TITLE TO REFLECT MARKETING,
UPDATED BOM REVISION
11/17/2020
CA
01237
D
D-001
UPDATED BOM REVISION
WAS 128.0 NOW 128 (pg2)
01/25/2021
05/26/2021
TM
OR
01265
01304
WHERE USED
5000TL
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
TM
5620645
5000TL BOTTOM FRAME
SUBWELDMENT, R.H.
04/14/2020
DO NOT SCALE DRAWING
1:6
SCALE:
THIRD ANGLE PROJECTION
OR
05/27/2021
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
BREAK AND DEBURR ALL SHARP EDGES 0.3mm
2.
REMOVE ALL WELD SPLATTER
3.
NOTE: UNLESS OTHERWISE SPECIFIED.
