QuickJack Box 3 (and Parts Bag)
Many of the items you will be using during initial setup come in Box 3; the Parts Bag is included
in Box 3.
The QuickJack Box 3 includes:
• A Power Unit (Voltage of your choice, decided at time of purchase)
• Four Medium Rubber Lift Blocks and Four Tall Rubber Lift Blocks
• Two Short Hydraulic Hoses and Two Long Hydraulic Hoses
The QuickJack Parts Bag includes:
• Four Female Quick-Connect Fittings
• Two Male Quick-Connect Fittings
• Two Power Unit Quick-Connect Fittings
• Two Hydraulic Elbow Fittings
• Bottle of Liquid Thread Sealant

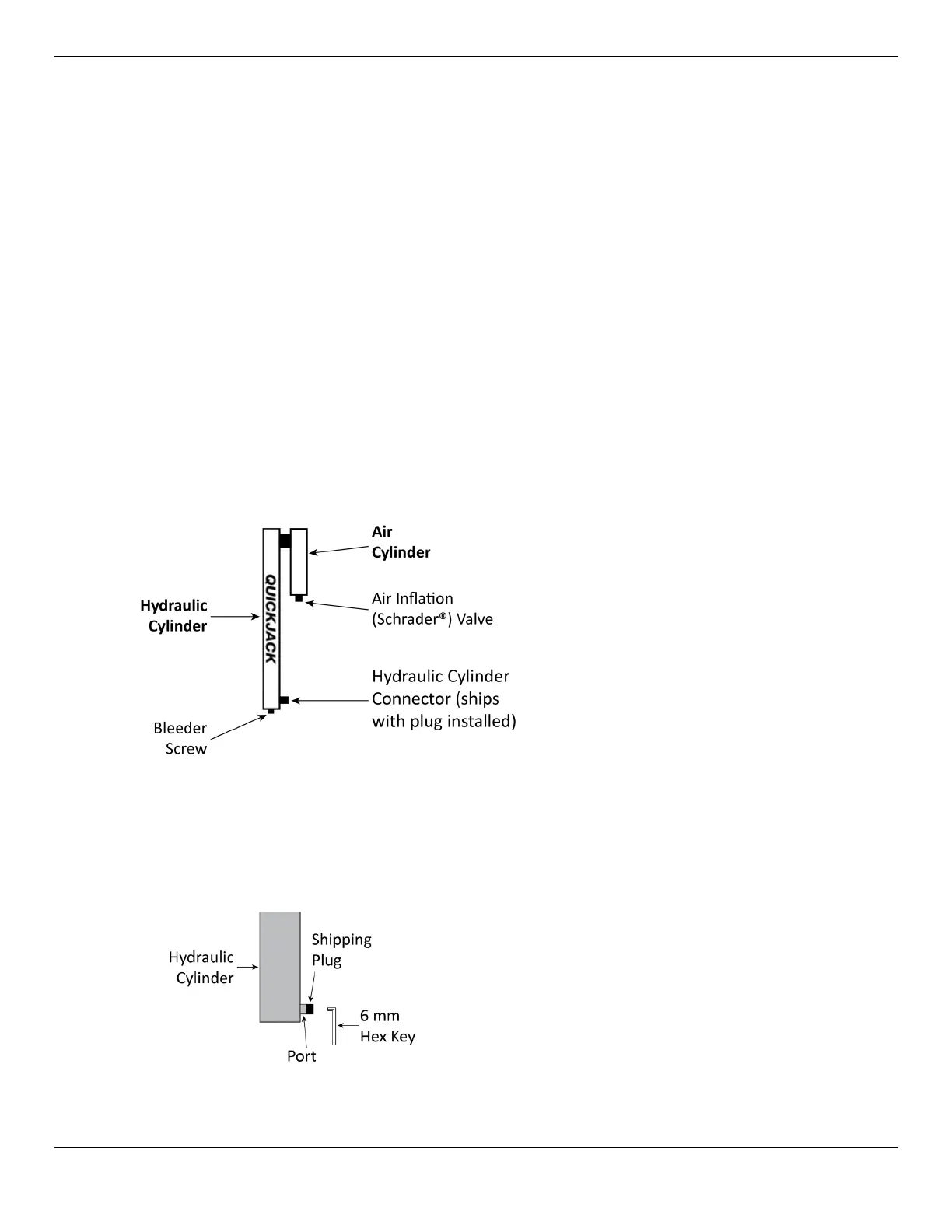

Air and Hydraulic Cylinders
Each QuickJack Frame has one Air Cylinder and one Hydraulic Cylinder.
The components of the Air and Hydraulic Cylinders are:
• Air Inflation Valve. Used to add air pressure to the Air Cylinder. Comes with the appropriate
valve (also called a Schrader® valve) installed.
• Hydraulic Cylinder Connector. Hydraulic Elbow Fitting attaches here. Use a 6 mm hex key to
remove the shipping plug before installing the Hydraulic Elbow Fitting.
• Bleeder Screw. Used to “bleed” the air from the Hydraulic System, if necessary. Refer to
Troubleshooting for more information.
