QuickJack™ Portable Car Jack 45 P/N 5900959 — Rev. L1 — December 2020
Using the 12 VDC Power Unit
The 12 VDC Power Unit lets you power your QuickJack using a Vehicle Battery and a pair of Jumper
Cables, giving you the flexibility to use your QuickJack in a wide variety of locations.

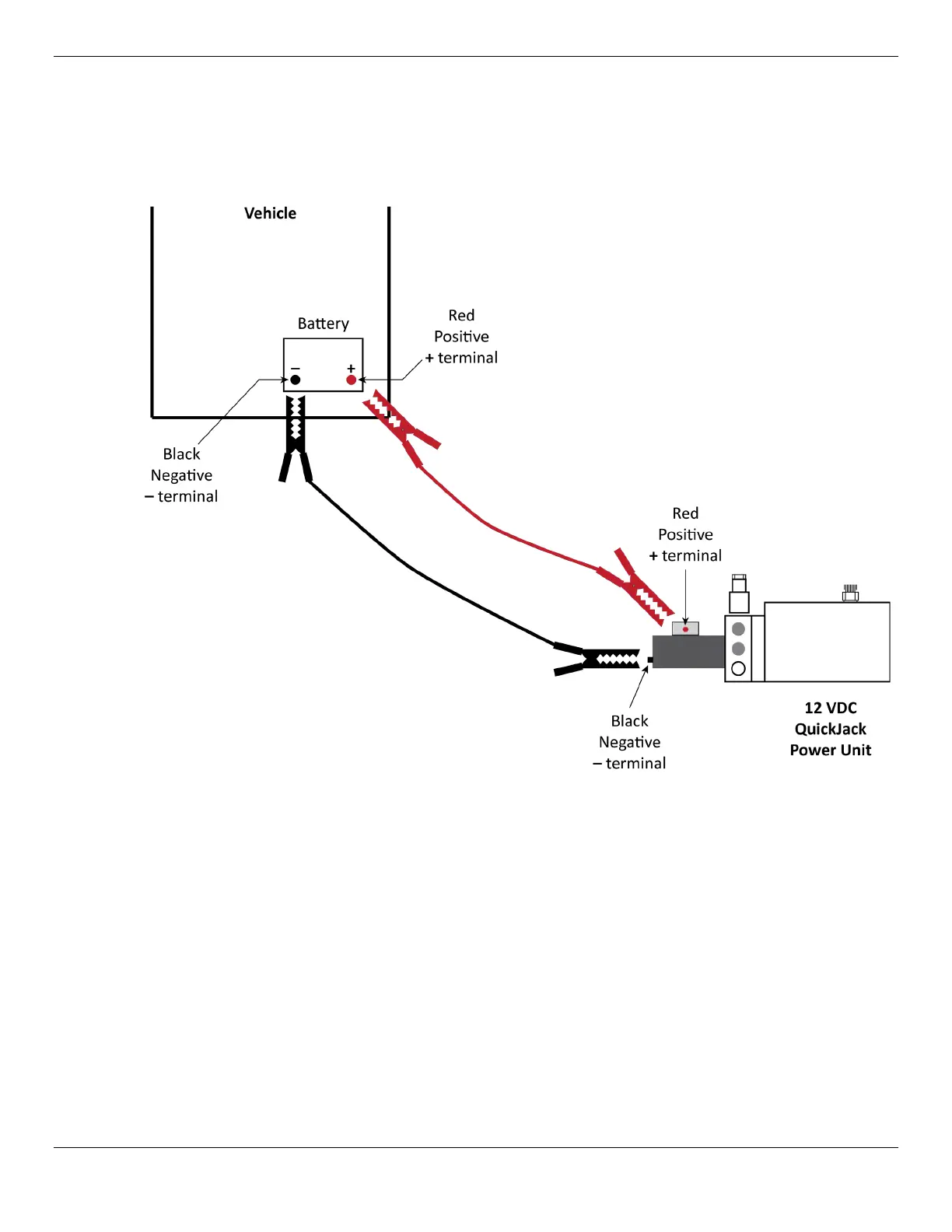

The following drawing shows how to connect the 12 VDC Power Unit to a Vehicle Battery.
Not to scale. Not all components shown. The Jumper Cables and the Vehicle Battery are not supplied
with the 12 VDC QuickJack Power Unit.
Important: If your 12 VDC QuickJack Power Unit has a Reservoir Cap with a Breather Valve,
close the Breather Valve before transporting the Power Unit. Then make sure to open
the Breather Valve before using the Power Unit.
