Quickplay BALLER MINI HOOP SYSTEM - Assembly Instructions; Step A: Assemble the Base

2
3
4
1
3

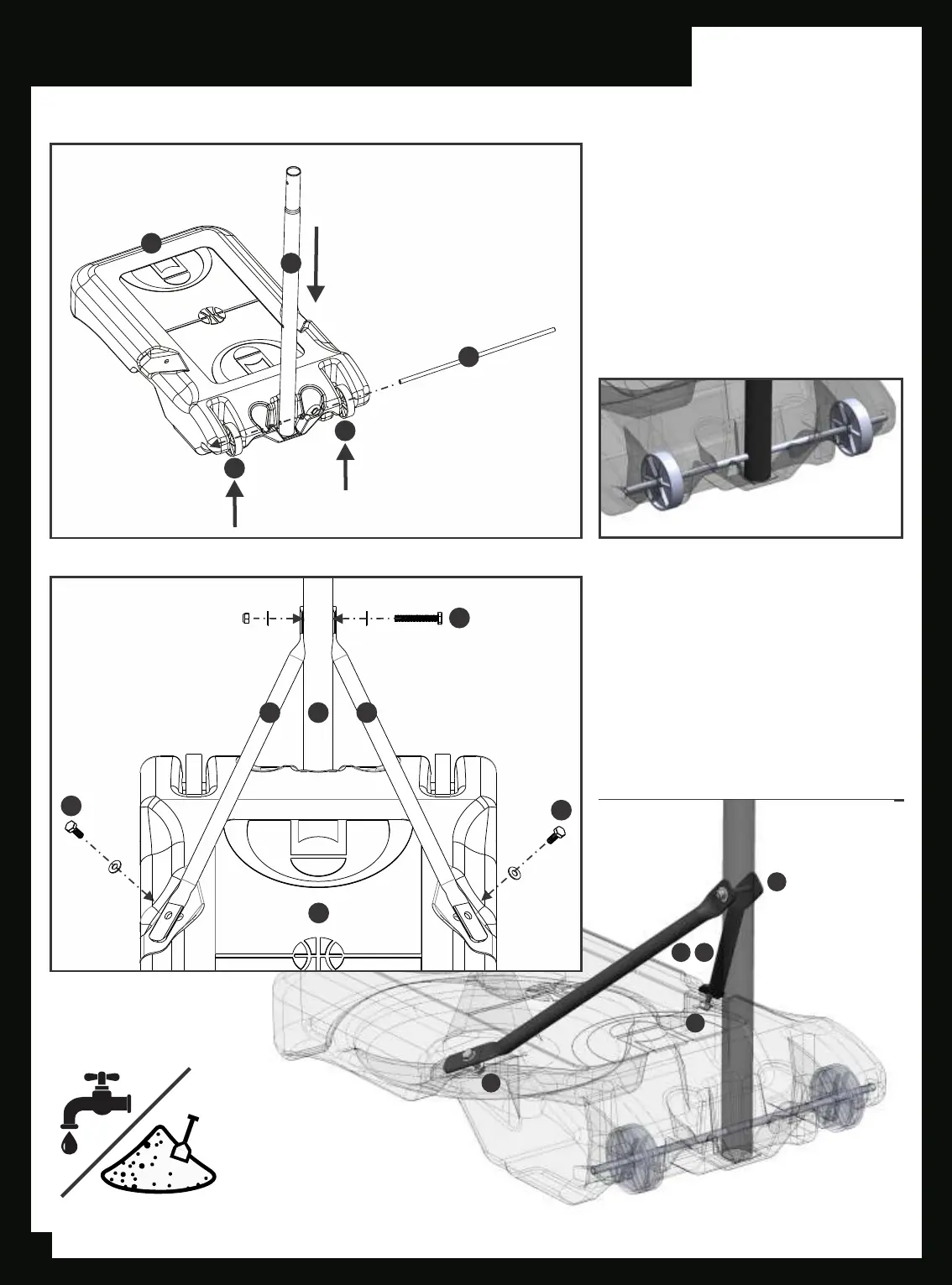

STEP A: ASSEMBLE THE BASE
IMPORTANT: Do not fill the base
before completing STEP A.
1. Lay the Base (1) on a flat level surface.
2. Slide the Axel (2) through the groove in
the Base (1) and the first Wheel (3).
3. Place the Lower Post (4) in the center and
slide the Axel (2) through the lowest hole.
4. Continue pushing the Axel (2) through the
second wheel (3). Ensure the Axel (2) is
centered before continuing.
ASSEMBLY INSTRUCTIONS
5. Attach the Left & Right Support Struts (5)
and (6) to the Base (1) and Lower Post
(4). IMPORTANT: The Left & Right
Support Struts (5) and (6) have flat ends:
- Secure the longer flat end of each Strut
to the Base (1) using hardware set (A).
- Secure the shorter flat end of each Strut
to the Lower Post (4) using hardware
set (B).
6. Fill the base with sand or water.
IMPORTANT: AFTER STEP A IS COMPLETE, FILL THE BASE WITH WATER / SAND.
A
B
A
5
6
A
B
A
5 6
4
1
4
