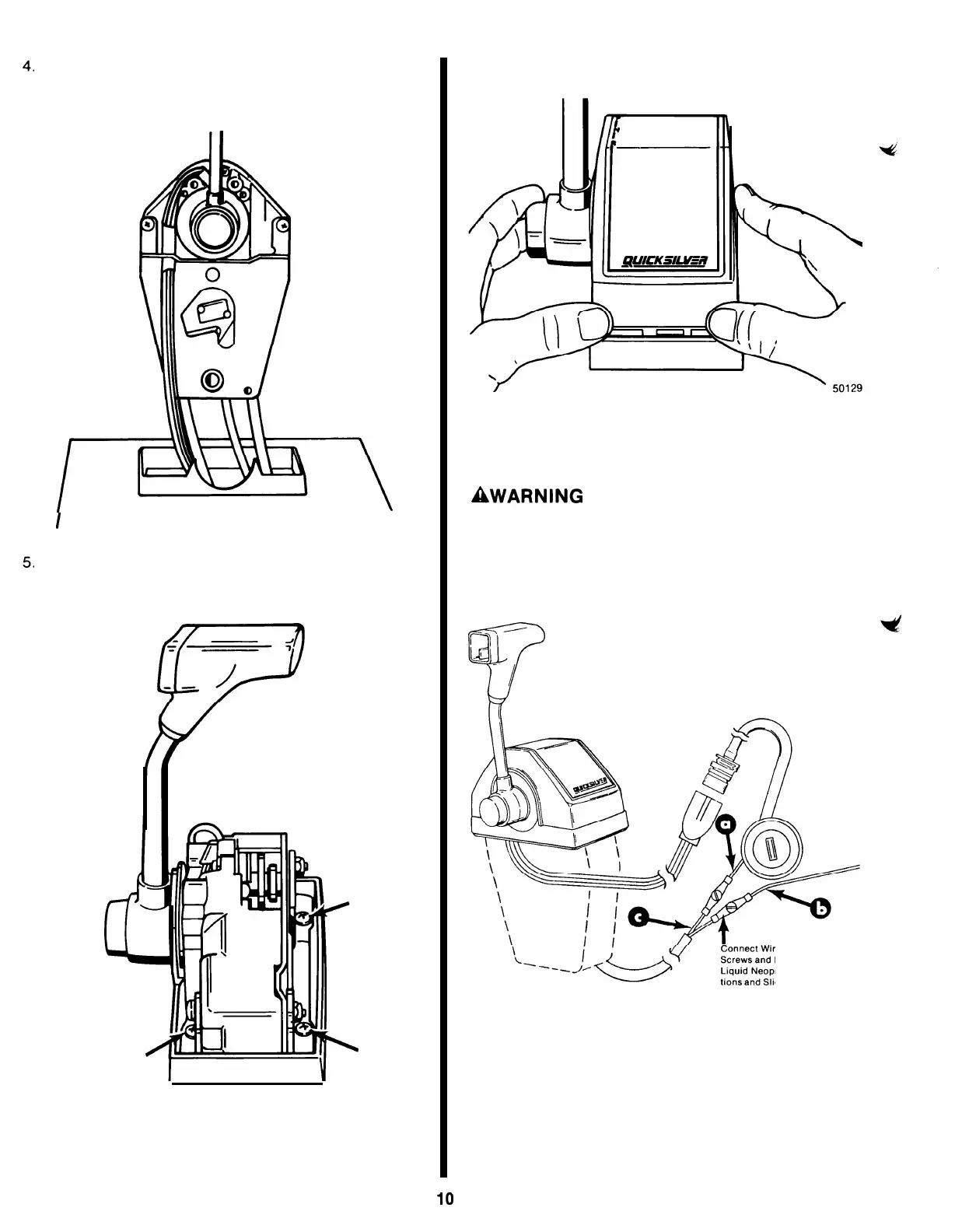

Route control cables and wiring harnesses thru
mounting base, then place remote control into posi-
tion on mounting base.
I
50128
Secure remote control to mounting surface with
four
1-1/2”
(38mm) long screws, tighten securely.
50129
6. Install cover on remote control by snapping into
place.
Electrical Connections
AWARNING
Failure to connect neutral start safety switch leads
properly could allow engine to start while in gear. If
engine starts while in gear, immediate boat movement
and a hazard to unseated occupants of boat or persons
and property outside of boat may result.
res
Together
with
Hex Nuts; Apply
rene to Connec-
de Rubber Sleeve
over Each Connection
24980
a
-
Yellow/Red from Key/Choke Switch
b
-
Yellow/Red from Engine Remote Wiring
c
-
Yellow/Red Neutral Safety Start Switch from Remote Control
IMPORTANT: When routing neutral start safety switch
harness, secure each harness every 18” (45.7cm). Be
sure that wiring does not rub or get pinched and that it
does not come in contact with water.
