Quicksilver 88688A25 User Manual

Port Side Control
Module Cable Installation
All Outboard Models thru 250 (3 Litre)
ACAUTION
Before tightening cable fastener locknut, be sure that
pin on end of cable fastener is completely thru cable
end and shift/throttle lever. A pin, that is partially thru
cable and lever, may cause fastener to bend when
locknut is tightened.

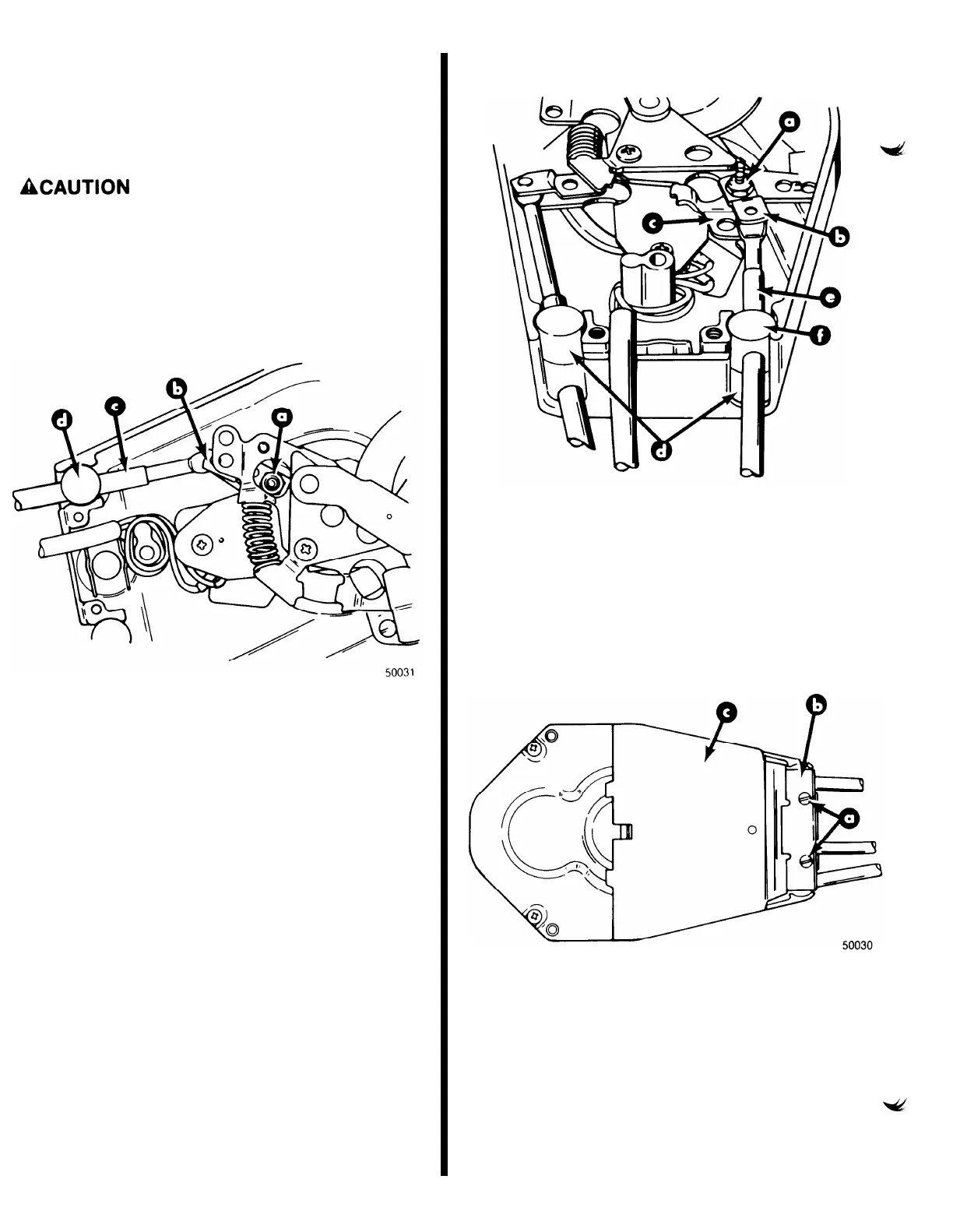

Shift Cable
a - Cable Fastener Locknut
b
- Cable Fastener
c
- Shift Cable
d
- Cable Anchor Barrel
Torque cable fastener locknut to 20 to 25 lb. in.
(2.3-2.8 N.m).
Throttle Cable
50030
a - Cable Fastener Locknut
b
- Cable Fastener
c
- Throttle Lever
d
- Spacer (From Parts Bag)
e
- Throttle Cable
f
- Cable Anchor Barrel
Torque cable fastener locknut to 20 to 25 lb. in.
(2.3-2.8 N.m).
a - Screws
b
- Cable Retainer
c
- Access Cover
Position access cover and cable retainer onto back of
control and secure both with 2 screws. Torque screws
to 60 lb. in. (7 N.m).
-8-
